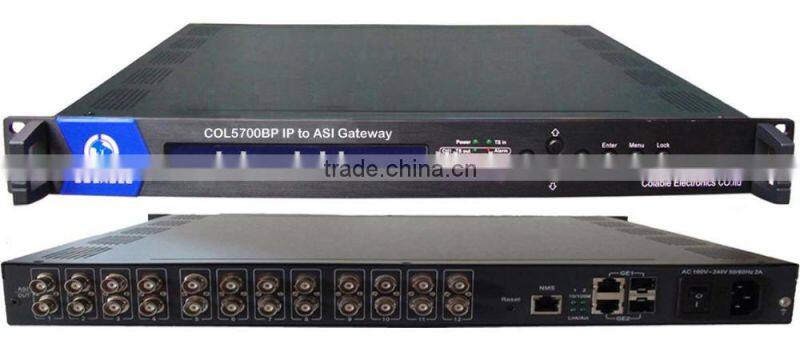

Model: COL5700BP
IP to ASI gateway and converter 12 transponders out
Outline
COL5700BP IP to ASI Gigabits gateway is a head-end interface device which is used for DVB ASI and Ethernet . As a kind of IP receiver, this device can recover UDP database received from the transporting device into TS stream and then output it through the ASI output interfaces. Moreover, it has the function to resist the IP transporting shake, and to restore the PCR of the TS stream. This device can maximum receive 12 channel IP and output 12 ASI, also, it can simultaneously transmit the 12 IP stream into 12 TS stream.
Features
- Supports IP to ASI one-way conversion
- Supports double GE ports, and inputs 1Gps data
- Supports UDP, unicast and multicast mode, and 1GMP V2/V3
- Supports 12 ASI output channel, and each channel has two ASI ( the same data) interfaces
- The maximum conversion channel of IP to ASI is 12, and the maximum bit-rate in each channel is 96Mbps, the maximum total bit-rate is 840Mbps
- Supports to eliminate the IP transport shake, and can correctly restore the PCR of TS stream
- Keyboard and NMS operation
Specifications
Interface |
Input |
Two 1000M network serial input interfaces,RJ45 interface |
|
Output |
12 ASI output, and each channel has two BNC interfaces |
||
Transfer Protocol |
Input |
TS over UDP,unicast and multicast |
|
Output |
DVB-ASI |
||
Bit-rate |
Max of each channel is 96Mbps Max total bit-rate is 840Mbps |
||
General |
Dimension(WxLxH) |
482mm×410mm×45mm |
|
Weight |
5kg |
||
Temperature |
0~45℃(working ),-20~80℃(storage) |
||
Power supply |
100~240VAC,50/60Hz |
||
Power consumption |
22W |
||
