High integrated HD encoder modulator cable tv headend system/ mpeg2 & h.264 video encoding RF modulator DVB-T/C ATSC ISDB-T out
Easily chatting via Skype ID: colable.sales008
Outline

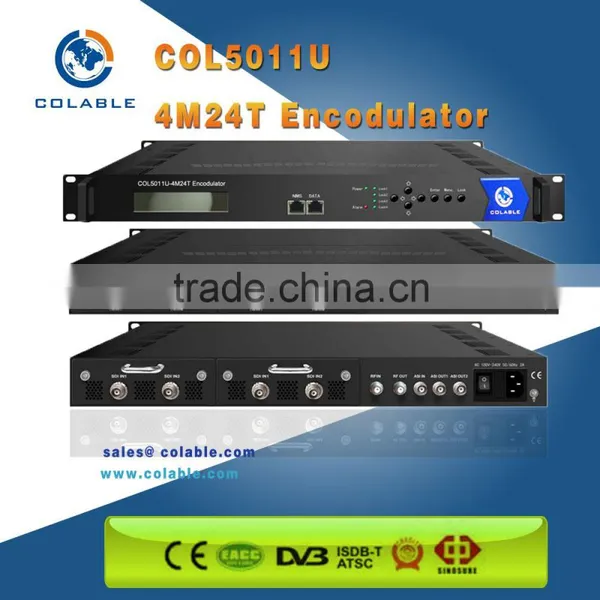

COL5011U-4M24T series products are our new breakthrough all-in-one devices which integrate encoding (MPEG-2, MPEG-4/AVC H.264) and modulating to convert V/A signals into DVB-C/DVB-T/ATSC-T/ISDB-T RF output. It has equipped with 4 HDMI channels input and 1 ASI input and output with 2 ASI ports
and 1 UDP IP (4*SPTS) port. It adopts inner drawer-type structural design which greatly facilitates the change of
encoding modules (HDMI/SDI/…) as needed. The signals source could be from satellite receivers, closed- circuit
television cameras, Blue-ray players, and antenna etc. Its output signals are to be received by TVs or STBs etc.
With its various inputs available, our COL5011U-4M24T series products are wildly used in public places such as metro,
market hall, theatre, hotels, resorts, and etc for advertising, monitoring, training and educating in company, schools,
campuses, hospital… It’s a good choice to offer HD channels and more.
Features
- MPEG2 & MPEG4 AVC/H.264 HD/SD encoding
- Huge video buffer (for SDI interface), free to switch video sources
- MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0 (Optional) audio encoding
- Up to 1920*1080@50P/60P supported (MPEG4 AVC/H.264)
- Up to 1920*1080@50I/60I supported (MPEG2 HD)
- 4* HDMI/SDI input
- 1*ASI input for re-mux; 1*RF input for mix
- Support CC (closed caption ) for SDI interface (Optional)
- Simultaneously encoding each channel more than 10Mbps
- DVB-C/DVB-T/ATSC-T/ISDB-T RF out
- Support 4 * SPTS output
- Extremely low delay
- LCN support (Logical Channel Number)
- Excellent modulation quality MER≥42dB
- RF Frequency range 30Mhz~960Mhz
- LCD display, Remote control and firmware
- Web NMS management; Updates via web
- Lowest cost per channel
Specifications
Encoding section | ||||
|
Video
|
Encoding |
MPEG2,MPEG4 AVC/H.264 |
||
Input |
HDMI*4(or SDI*4) |
|||
Resolution |
1920*1080-60p,1920*1080-50p, (-for MPEG4 AVC/H.264 only 1920*1080-60i,1920*1080-50i 1280*720-60p,1280*720-50p 720*480-60i,720*576-50i |
|||
Low delay |
Normal,mode1mode2 |
|||
Audio |
encoding |
MPEG1 Layer11,MPEG2-AAC MPEG4-AAC,AC3 2.0(optional) |
||
Sample rate |
48KHZ |
|||
Bit rate |
64kbps,96kbps,128kbps,192kbps,256kbps,320kbps. |
|||
|
Modulator Section | ||||
DVB-C |
Standard |
J.83A,J,83B,J.83C |
||
MER |
≥42dB |
|||
J.83A |
Constellation |
16/32/64/128/256QAM |
||
bandwidth |
8M |
|||
J.83B |
Constellation |
64QAM/256QAM |
||
bandwidth |
6M |
|||
J.83C |
Constellation |
64QAM/256QAM |
||
|
|
bandwidth |
6M |
|
|
RF outputevel |
-30~-10dbm(77~97dbuV),0.1db step |
||
symbolrate |
5.000~9.000Msps adjustable |
|||
DVB-T |
Standard |
EN300744 |
||
Bandwidth |
6M,7M,8M |
|||
Constellaton |
QPSK,16QAM,64QAM, |
|||
Code rate |
1/2,2/3,3/4,5/6,7/8. |
|||
Guard lnterval |
1/32,1/16.1/8,1/4 |
|||
Transmission Mode: |
2K,8K |
|||
MER |
≥42dB |
|||
RF frequency |
30~960MHz,1KHz step |
|||
RF Out |
COFDM DVB-T out |
|||
RF output level |
-30~-10dbm(77~97dbuV) 0.1db step |
|||
ATSC-T |
Standard |
ATSC A/53 |
||
MER |
≥42dB |
|||
RF frequency |
30~960MHz,1KHz step |
|||
RF output level |
-26~10dbm(81~97dbuv), 0.1db step |
|||
Constellation |
8VSB |
|||
ISDB-T |
Standard |
ARIB STB-B31 |
||
Bandwidth |
6M |
|||
Constellation |
DQPSK,QPSK,16QAM,64QAM |
|||
Guard lnterval |
1/32,1/16,1/8.1/4 |
|||
Transmission Mode |
2k,4k,8k |
|||
MER |
≥42dB |
|||
RF frequency |
30~960MHz,1KHz,step |
|||
RF output level |
-30~-10dbm (77~97 dbuv), 0.1db step |
|||
|
System |
Local interface |
LCD + control buttons |
Remote management |
Web NMS |
|
Output |
ASI out (BNC type) |
|
|
4*SPTS out (RJ45,100M) |
|
NMS interface |
RJ45,100M |
|
Language |
English |
|
|
General |
Power supply |
AC 100V~240V |
Dimensions |
420*400*44mm |
|
Weight |
4.5Kgs |
|
Operation temperature |
0~45℃ |
Application system:
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
