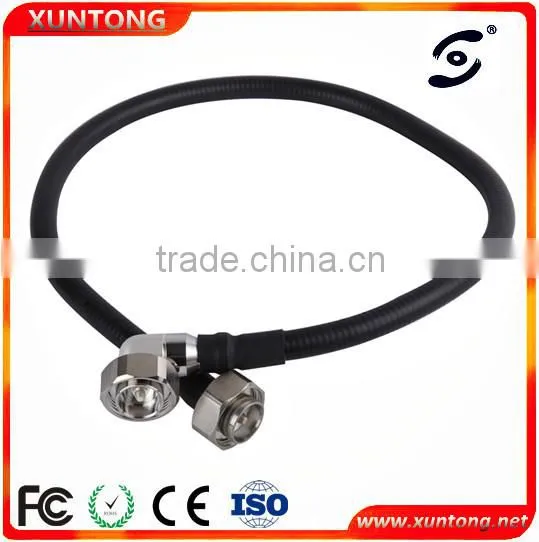

1/2" superflex with 7/16 Male DIN Connector rf jumper cable
Characteristic impedance |
50Ω 75Ω |
Operating Temperature |
-45~+65°C |
Frequency Range |
DC~4GHz(50Ω) |
Dielectric Resistance |
≥5Ω |
DC~2GHz(75Ω) | |||
Dielectric Withstanding voltage |
≥1500V RMS |
Disengage force |
≥0.6N |
Contact resistance |
Center conductor |
≤1.5mΩ |
|
Outer conductor |
≤1mΩ |
||
Durability |
Mating cycles |
≥500 |
|
Weatherproof Rate |
IP67 |
|
|
Material And Plating |
Parts Name |
Material |
Plating |
Body |
Brass |
nickel plated |
|
Male center contacts |
Brass |
gold plated |
|
Insulators |
PTFE |
— |
|
Gaskets |
Beryllium copper |
gold or nickel plated |
|
Crimp ferrules |
Copper alloy |
gold or nickel plated |
|
Suitable Cable Family |
RG59 Cable |
||
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
