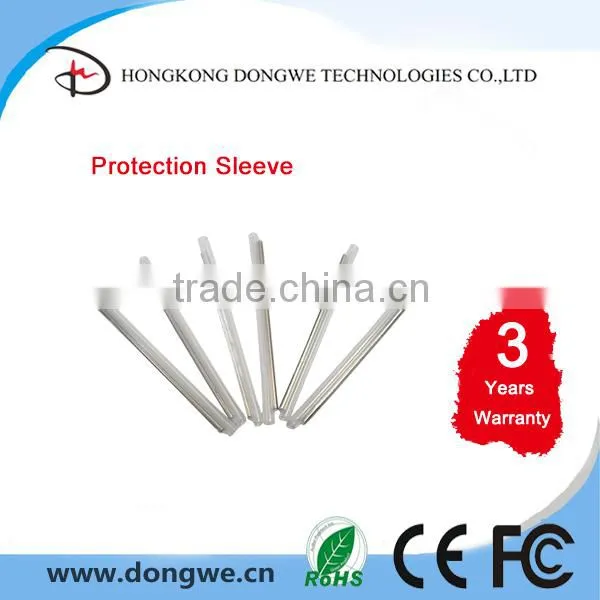

60mm Stainless Steel Needles Fiber Splice Protection Sleeve, Fusion Protection Shrinkable Sleeve

Name: 60mm Stainless Steel Needles Fiber Splice Protection Sleeve, Fusion Protection Shrinkable Sleeve
Brand: DONGWE
SKU: 132178737

60mm Stainless Steel Needles Fiber Splice Protection Sleeve, Fusion Protection Shrinkable Sleeve thumbnail-1

60mm Stainless Steel Needles Fiber Splice Protection Sleeve, Fusion Protection Shrinkable Sleeve photo-1

US$ 1 - 2 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DONGWE

Model Number:

Protection Sleeves

Contact Supplier Request Quote Chat Now

Shenzhen Dongwe Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DONGWE

Model Number Protection Sleeves

60mm Stainless Steel Needles Fiber Splice Protection Sleeve, Fusion Protection Shrinkable Sleeve

Product Description

Description

Consist of cross linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic
transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to
the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before
shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special
environment.

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used
for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between
two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the
ceramic reinforcement member to realize the function.

Specification

Type	Test Method	Data
Temperature	IEC216	-55°C ~100°C
Tensile Strength	ASTM D 2671	18MPa
Elongation at Break	ASTM D 2671	700%
Density	ISO R1183D	0.94g/cmm³
Dielectric Strength	IEC243	25KV/mm
Volume Resistance	IEC243	1015Ω.cm
Dielectric Constant	IEC243	2.5
Longitudinal Change	ASTM D 2671	±5%
Eccentricity	ASTM D 2671	10%

Ordering Information

Model	Heat shrinkable tube(mm)				Hot-melt tube(mm)				Steel needle(mm)			packing
Model	Utside diameter (±0.1)	Wall Thickness (±0.05)	length (±0.5)	material	Outside Diameter (±0.1)	Wall Thickness (±0.05)	Length (±0.5)	material	Outside Diameter (±0.05)	Length (±0.5)	material	packing
DW-PS6015	4.0	0.25	60	EVA	2.4	0.45	60	EVA	1.5	55	Stainless Steel304	100pcs/bag
DW-PS6012	3.5	0.25	60	EVA	2.0	0.35	60	EVA	1.2	55	Stainless Steel304	100pcs/bag
DW-PS6010	2.7	0.25	60	EVA	1.4	0.35	60	EVA	1.0	55	Stainless Steel304	100pcs/bag
DW-PS5515	4.0	0.25	55	EVA	2.4	0.45	55	EVA	1.5	50	Stainless Steel304	100pcs/bag
DW-PS5512	3.5	0.25	55	EVA	2.0	0.35	55	EVA	1.2	50	Stainless Steel304	100pcs/bag
DW-PS5510	2.7	0.25	55	EVA	1.4	0.35	55	EVA	1.0	50	Stainless Steel304	100pcs/bag
DW-PS5015	4.0	0.25	50	EVA	2.4	0.45	50	EVA	1.5	45	Stainless Steel304	100pcs/bag

Package and shipment

Package

In Plastic Bag

Factory Show

Shipment & Payment:

Contacts US

Address: B2602, 6/F,Launch Industrial Park, Wuhe Road,

Batian,longgang, Shenzhen, China

Tel:86-755-85292799/818 Fax:86-755-86151614

Mobile: 86-18923418970

Skype:dongwe049

Web:

We sincerely invite all interested buyers to visit our company and contact us directly for further information, we will reply you as soon as possible!!!
