Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB

Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB

Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB thumbnail-1
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB thumbnail-2
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB thumbnail-3
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB thumbnail-4
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB photo-1
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB photo-2
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB photo-3
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB photo-4
US$ 0.1 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
DONGWE
Model Number:
DW-ATRLC
Contact Supplier Request Quote Chat Now
Shenzhen Dongwe Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name DONGWE
Model Number DW-ATRLC

Fiber LC Attenuator,sm/mm,1.3.5.10.15.20.25dB

Product Description

 Key Features

  • High return loss
  • Simple structure
  • Max operation power(1W)
  • Low wavelength relativity
  • Low polarization related loss
  • Compact design



Applications

  • Fiber optical distributing frame
  • Fiber optical network system
  • Hi-speed fiber optical transmission system
  • CATV system
  • Long distance DWDM system
  • Optical add-drop multiplexers(OADM)



Specification



Attenuation Value

1 3 5 10 15 20 25db

Attenuation Precision

<5dB±0.3dB
<10dB±1dB
>10dB±10%

Return loss

PC >45dB  APC>60dB

Operation wavelength

1310nm and 1550nm(SM)

Polarization loss

<0.1dB

Operation temperature

-40℃ ~ +75℃

Storage temperature

-40℃ ~ +85℃

Temperature(Unencapsulation)

95%RH Apply Telecordia standard(GR-910-CORE)






Ordering Information
Part Number Description
DW-ATRLC LC Attenuator,sm/mm,1.3.5.10.15.20.25dB
DW-ATRSC SC Attenuator,sm/mm,1.3.5.10.15.20.25dB
DW-ATRFC FC Attenuator,sm/mm,1.3.5.10.15.20.25dB
DW-ATRST ST Attenuator,sm/mm,1.3.5.10.15.20.25dB



Product Serial
Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB

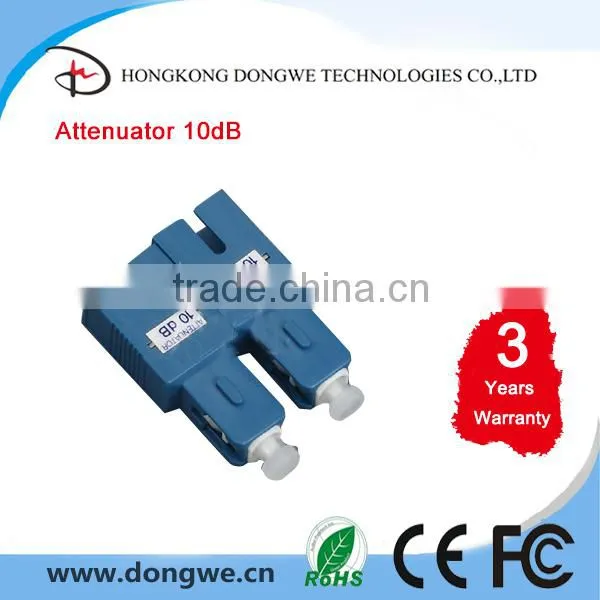

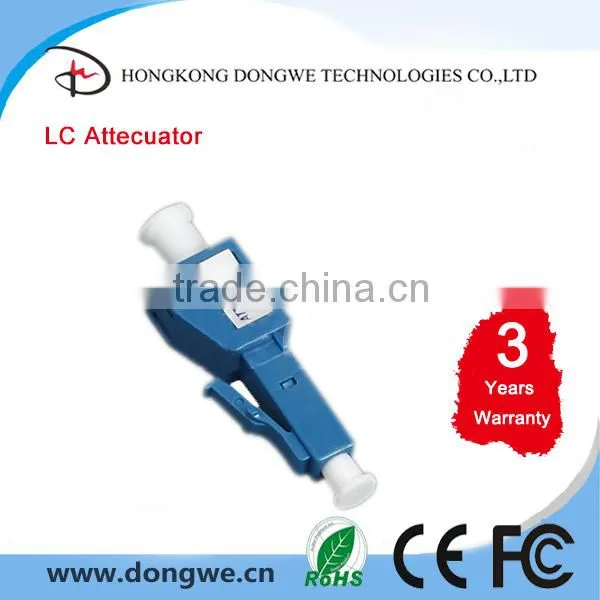

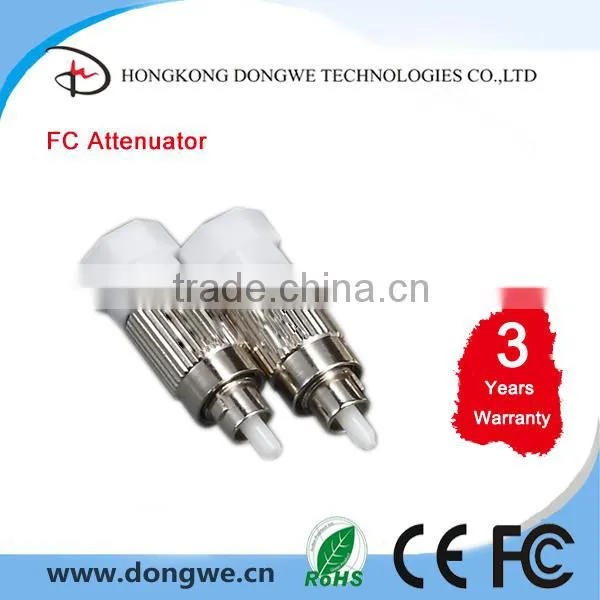

          SC Attenuator                     LC Attenuator                   FC Attenuator                   ST Attenuaot
Package and shipment

Package

In Plastic Bag, In Carton Box

Shipment:

International  Express: DHL, FedEx, UPS, TNT and EMS optional

Factory Show

Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB

Our Service

      1.  Competitive price

      2.  3 years warranty
       3.  Reply your inquiry within 2 hours
      4.  Have large quantity modules in stock, delivery fast
      5.  Label can be customized, also ODM and OEM service offered
      6.  100% new material and good quality
      7.  Capacity: 100,000pcs/day
      8.  Certificates below:

      Fiber LC/SC/FC/ST Attenuator,sm/mm,1.3.5.10.15.20.25dB
Related Products

You may also be interested in other products like:

WS-G5483                     WS-G5484                WS-G5486               WS-G5487

GLC-T                            GLC-SX-MM                    GLC-LH-SM                   GLC-EX-SM

GLC-ZX-SM                  GLC-BX-D                       GLC-BX-U

SFP-10G-SR                 SFP-10G-LR             SFP-10G-ER           SFP-10G-ZR
