atsc-t encoder modulator , hd-mi to rf modulator COL5011U
- 10000 Set / Sets per Month
- Chengdu
- T/T Credit Card
- Dark Red Antique European antique desk lamp telephone for sale
- Antique European brown lamp telephone landline with home phones
- Antique European antique desk lamp home phones
- Antique gramophone gift music box player
- Classical turntable gramophone gift music box player
- Modern turntable gramophone gift music box player
Product Details
Brand Name: | Colable | Model Number: | COL5011U | Place of Origin: | Sichuan, China |
Product Description

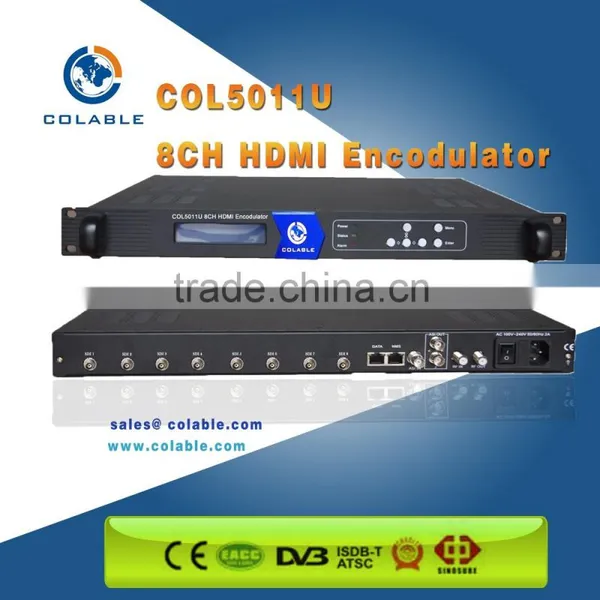

COL5011U atsc-t encoder modulator , hd-mi to rf modulator
Outline
This 4/8CH HDMI Encodulator is a professional HD and SD audio & video encoding and multiplexing device
with powerful functionality. It has 4/8 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile
code format. This device can simultaneously encode 4/8 channel HD programs; moreover, it has an ASI input
and can multiplex the input TS with the 4/8 encoded SPTS to generate a MPTS output. Also, the PSI/SI inform
-tion can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the
device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and
terrestrial digital TV, etc.
Features
- 4/8×HDMI HD/SD video inputs
- 1× ASI input interface
- Low Latency Encoding
- Lower Resolutions Output
- Support MPEG4AVC/H.264 igh Profile code format
- PSI/SI editing and inserting
- PID remapping and passthrough
- Support CBR/VBR video bitrate mode
- Support 1080i,1080P,720P,576i,480i video format
- Outputs multiplexed MPST ASI
- 4*DVB-C RF output
- Support IP out(UDP/RTP/RTSP protocol,SPTS)
- Support IP null packet filter
- Support Web monitoring
- Support SNMP Ethernet software upgrade
- LCD display
Specification
Input | 4/8HDMI inputs | |||
1×ASI input( BNC interface) | ||||
1RF input | ||||
Video | Resolution | 1920×1080_60p 1920×1080_50p | ||
1920×1080_60i, 1920×1080_50i | ||||
1280×720_60p, 1280×720_50p | ||||
720×480_60i, 720×576_50i(D1) | ||||
544×480_60i, 544×576_50i(3/4D1) | ||||
352×480_60i, 352×576_50i(HD1) | ||||
480×480_60i, 480×576_50i(2/3D1) | ||||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD and SD | |||
Bit-rate | 0.8Mbps~19ps (each channel) | |||
Rate Control | CBR/VBR | |||
GOP Structure | IBBP | |||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |||
Audio |
|
| ||
Sampling rate | 48KHz | |||
Resolution | 24-bit | |||
Bit-rate | 64Kb/s~384Kb/s each channel | |||
Multiplexing | Multiplex 1ASI input and 8 channels hd encoding programs | |||
Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.) | |||
Low Latency Encoding | ||||
Lower Resolutions Output | ||||
IP out SPTS(UDP,RTP,RTSP),support IP out null packets filter. | ||||
RF Out(DVB-C 4RF, DVB-T 2RF,ISDB-T 1RF,ATSC 4RF) | ||||
Modulator Section | standard | J.83A,J.83B,J.83C | ||
MER | >42dB | |||
RF Frequency | 30~999MHz,1KHz step | |||
RF output level | (80dbuv~115dbuv),0.1db step | |||
Symbol Rate | 5.0~9.0Msps | |||
RF carrier | 4 carrier | |||
J.83A | Constellation | 16/32/64/128/256QAM | ||
bandwidth | 8M | |||
J.83B | Constellation | 64QAM,256QAM | ||
bandwidth | 6M | |||
J.83C | Constellation | 64QAM,256QAM | ||
bandwidth | 6M | |||
System function | LCD/keyboard operating, web based management software, English control interface | |||
SNMP Ethernet software upgrade | ||||
General | Dimensions (W×D×H) | 482mm×455mm×44.5mm | ||
Approx weight | 3.5Kg | |||
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |||
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |||
Power consumption | 65W |
Order reference:
| 4channels | 8channels |
DVB-C | COL5011U-4HC | COL5011U-8HC |
DVB-T | COL5011U-4HT | COL5011U-8HT |
ATSC | COL5011U-4HA | none |
ISDB-T | COL5011U-4HJ | none |
COL5011U Series Option:
DVB-C/T / ATSC / ISDB-T
- 2CVBS+2HDMI: MPEG2-CVBS,MPEG4 AVC/H.264-HDMI
- 4/8 CVBS: MPEG2,
- 1/2/4/8 HDMI: MPEG4 AVC/H.264
- 1/2/4/8 SDI: MPEG4 AVC/H.264
- 4 HDMI/SDI: MPEG-2,MPEG-4 AVC/H.264
DVB-S/S2
- 1 HDMI or SDI(950-2150M)/2 HDMI or SDI(950-1050M
- 1 model(2AV+Ypbpr)---950-2150M
- 2 model(2*(2AV+Ypbpr))---950-1050M
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administration for Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first
time as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long
erm cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

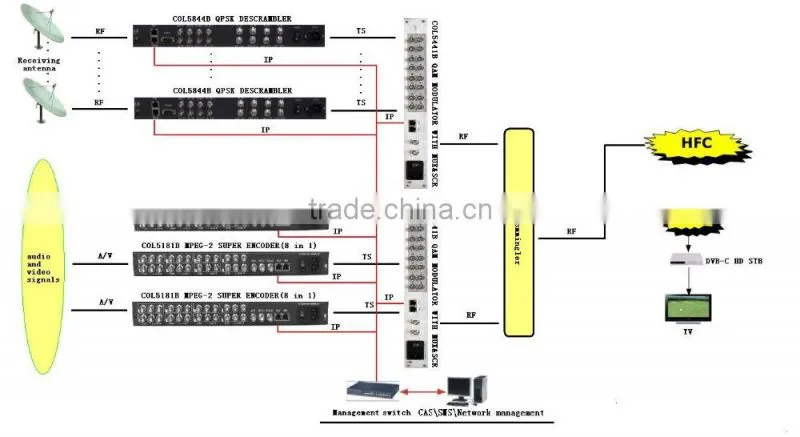

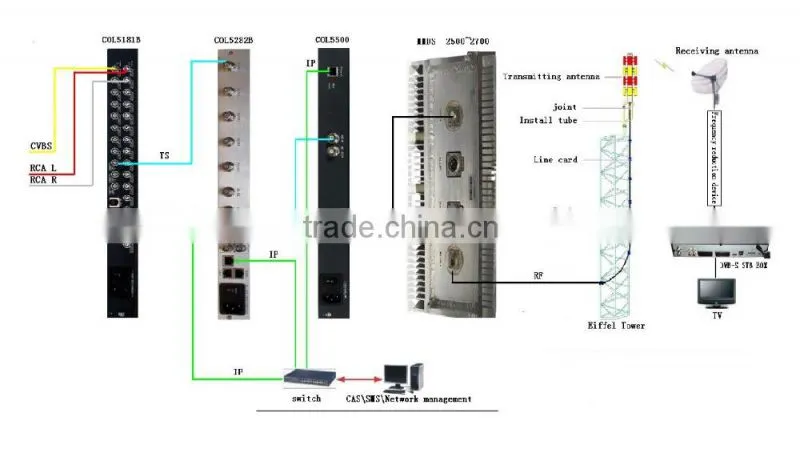

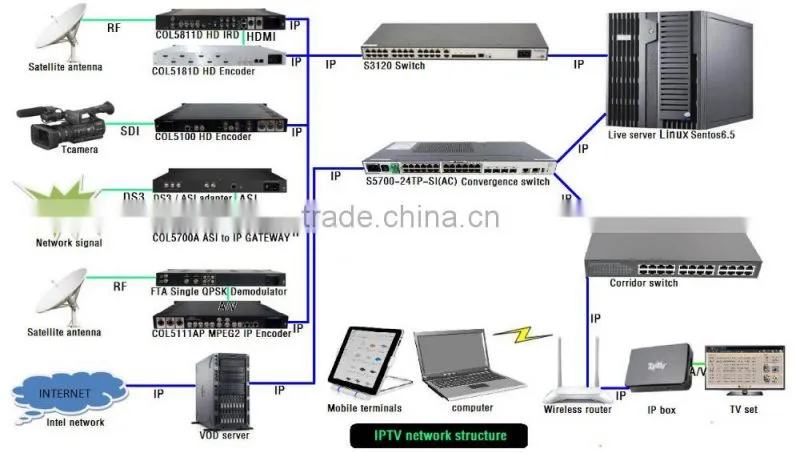

Some pictures for reference
