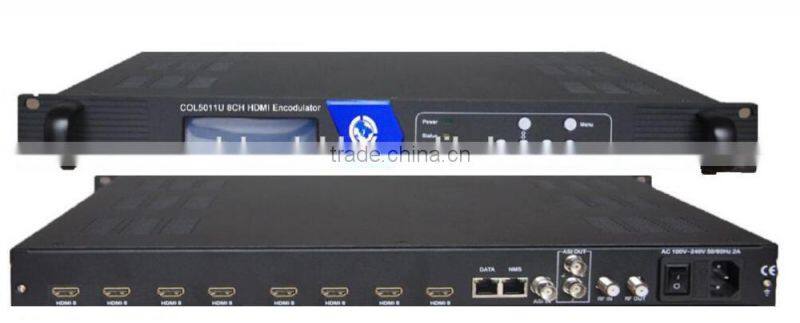

8CH HD MI encoder modulator -HD video to rf modulator COL5011U
- 10000 Set / Sets per Month
- Chengdu/Shanghai
- Credit Card
- In stock PJ-208B earphone audio socket 4-pin 2.5 plug earphone socket plastic plug
- In stock PJ-208A earphone audio socket 4-pin 2.5 plug-in anti wolf alarm plug
- simar popular 22/24 inch self-reversing monitor tempered glass mirror presidential conference meeting speech teleprompter
- simar Best selling 20/22/24/27/32 inch self-reversing flip monitor M-ZYS20/22/24/27/32 teleprompter
- 17/20/22/24/27/32 inch Broadcasting studio prompter teleprompter for recording
- NIORFNIO T50M 50W FM transmitter, high-power USB playback farm application 5-kilometer range
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Colable | Model Number: | COL5011U |
Product Description
Model: COL5011U
8CH HDMI encoder modulator -HD video to rf modulator
Outline
This 4/8CH HDMI Encodulator is a professional HD and SD audio & video encoding and multiplexing device with powerful
functionality. It has 4/8 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile code format. This
device can simultaneously encode 4/8 channel HD programs;moreover, it has an ASI input and can multiplex the
input TS with the 4/8 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties
of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Features
- 4/8×HDMI HD/SD video inputs
- 1× ASI input interface
- Low Latency Encoding
- Lower Resolutions Output
- Support MPEG4AVC/H.264 igh Profile code format
- PSI/SI editing and inserting
- PID remapping and passthrough
- Support CBR/VBR video bitrate mode
- Support 1080i,1080P,720P,576i,480i video format
- Outputs multiplexed MPST ASI
- 4*DVB-C RF output
- Support IP out(UDP/RTP/RTSP protocol,SPTS)
- Support IP null packet filter
- Support Web monitoring
- Support SNMP Ethernet software upgrade
- LCD display
Specifications
Input | 4/8HDMI inputs | |||
1×ASI input( BNC interface) | ||||
1RF input | ||||
Video | Resolution | 1920×1080_60p 1920×1080_50p | ||
1920×1080_60i, 1920×1080_50i | ||||
1280×720_60p, 1280×720_50p | ||||
720×480_60i, 720×576_50i(D1) | ||||
544×480_60i, 544×576_50i(3/4D1) | ||||
352×480_60i, 352×576_50i(HD1) | ||||
480×480_60i, 480×576_50i(2/3D1) | ||||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD and SD | |||
Bit-rate | 0.8Mbps~19ps (each channel) | |||
Rate Control | CBR/VBR | |||
GOP Structure | IBBP | |||
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |||
Audio |
|
| ||
Sampling rate | 48KHz | |||
Resolution | 24-bit | |||
Bit-rate | 64Kb/s~384Kb/s each channel | |||
Multiplexing | Multiplex 1ASI input and 8 channels hd encoding programs | |||
Stream output | 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.) | |||
Low Latency Encoding | ||||
Lower Resolutions Output | ||||
IP out SPTS(UDP,RTP,RTSP),support IP out null packets filter. | ||||
RF Out(DVB-C 4RF, DVB-T 2RF,ISDB-T 1RF,ATSC 4RF) | ||||
Modulator Section | standard | J.83A,J.83B,J.83C | ||
MER | >42dB | |||
RF Frequency | 30~999MHz,1KHz step | |||
RF output level | (80dbuv~115dbuv),0.1db step | |||
Symbol Rate | 5.0~9.0Msps | |||
RF carrier | 4 carrier | |||
J.83A | Constellation | 16/32/64/128/256QAM | ||
bandwidth | 8M | |||
J.83B | Constellation | 64QAM,256QAM | ||
bandwidth | 6M | |||
J.83C | Constellation | 64QAM,256QAM | ||
bandwidth | 6M | |||
System function | LCD/keyboard operating, web based management software, English control interface | |||
SNMP Ethernet software upgrade | ||||
General | Dimensions (W×D×H) | 482mm×455mm×44.5mm | ||
Approx weight | 3.5Kg | |||
Temperature range | 0~45℃(Operating), -20~80℃(Storage) | |||
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |||
Power consumption | 65W |
Order reference:
| 4channels | 8channels |
DVB-C | COL5011U-4HC | COL5011U-8HC |
DVB-T | COL5011U-4HT | COL5011U-8HT |
ATSC | COL5011U-4HA | none |
ISDB-T | COL5011U-4HJ | none |
Application system:
-DVB-C cable tv system:
-IPTV stream Encoder (LAN)
Asking for more information? please feel free to directly chat with Betty.Li
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
