COL-MT100 Digital TV Wireless Transmitter MMDS
Power Optional : 5W,10W,30W,50W,100W,200W,400W
Outline
This manual introduces the main technical specifications, structure and electric connecting features of
digital MMDS transmitter. Please check the equipment cell amounts and the status under the steps after
careful reading, connect the equipment according to the demand and be sure to input the electric level,
then finish the connection and use of equipment and system.
Features
- The design of module groups is convenient to maintain the equipment.
- Low phase noise
- Compatible with analogue and digital signals transmission.
Specifications
Working frequency: |
2500 – 2700MHz |
The output power on the point of 1dB |
P1dB :50dBm |
L.O.: |
2033MHz |
AGC range: |
±8dB |
Pre-attenuation: |
7dB |
Input level: |
85dBuv/CH |
The digital output power: |
43dBm |
Interfaces: |
RF IN — FL1075K RF OUT — N-50K TEST PORT — AK16-7 |
Power supply: |
AC220V |
The total power loss |
450W |
The total weight: |
65Kg |
Specification can be changed according to clients’ requirement | |
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administrationfor Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first time
as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit. Usually
we use the speediest DHL/UPS/Fedex for small order delivery,and we have longerm cooperated
carriers for commonair & sea delivery with cheap price and high speed.
Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.

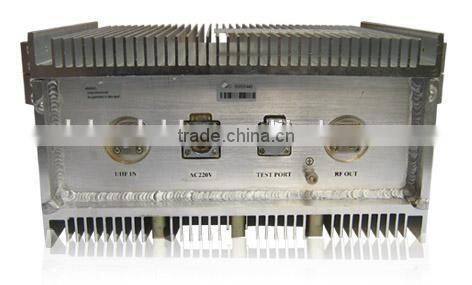

Some pictures for your reference
