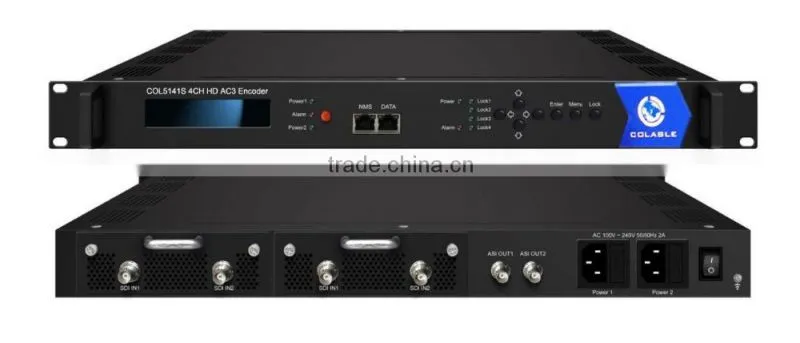

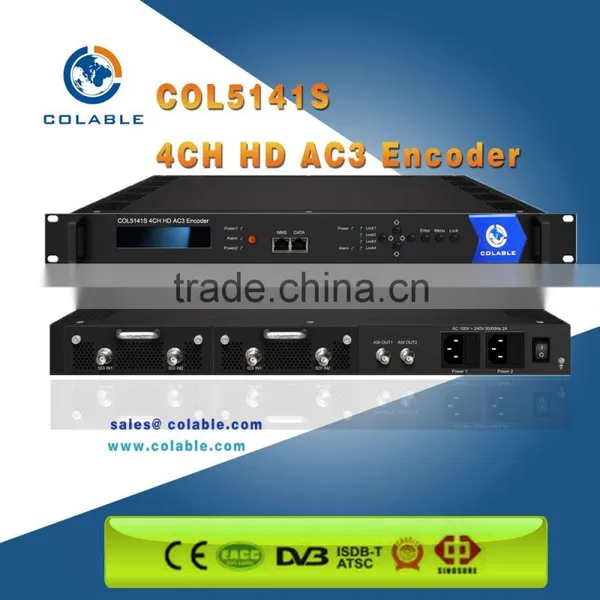

COL5141S 4 channel HD SDI h 264 Encoder with AAC AC3
Outline
COL5141S 4CH HD AC3 Encoder has equipped with 4 HD-.SDI channels input supporting MPEG-2
and MPEG-4AVC/H.264 video encoding and MPEG-1 Audio layer 2, LC-AAC, HE- AAC and AC3 audio
encoding.The 4 encoded SDI programs will output through ASIand IP ports in MPTS or SPTS.It adopts
inner drawer-type structural design which greatly facilitates the change of encoding modules if needed.
Features
- MPEG1 Audio Layer 2, LC-AAC, HE-AAC and AC3 audio encoding
- Support CC (closed caption) EIA 608 & EIA 708
- Dual power supply
- MPEG2 HD/SD & MPEG4 AVC/H.264 HD/SD video encoding
- 4*HD-SDI input
- Support VBR/CBR rate control mode
- Support Low Latency function
- Support PSI/SI editing and inserting
- Supports IP null packet filter
- ASI output, IP (MPTS & 4 SPTS) output over UDP, RTP
- LCD display, Remote control and firmware
- Web-based NMS management; Updates via web
Specifications
|
Video |
Encoding |
MPEG2 & MPEG4 AVC/H.264 |
Input |
HD-SDI*4 |
|
|
Resolution |
1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
|
Bit Rate |
0.5~19.5Mbps for H.264 encoding 1~19.5Mbps for MPEG-2 encoding |
|
Rate Control Mode |
CBR/VBR |
|
Chroma Sample |
4:2:0 |
|
Aspect Ratio |
16:9, 4:3 |
|
|
Audio |
encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, Dolby Digital AC3 |
Sample rate |
48KHz |
|
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
|
interface |
LCD + control buttons |
|
|
Remote management |
Web NMS |
|
System |
Low Latency Mode |
Normal, mode 1, mode 2 |
output |
2*ASI out (BNC type); IP (1 MPTS & 4 SPTS) over UDP, RTP (RJ45, 100M) |
|
interface |
RJ45, 100M |
|
Language |
English |
|
|
General |
Power |
AC 100V~240V, 45W |
Dimensions |
482*400*44mm |
|
Weight |
4.5 kgs |
|
Operation temperature |
0~45℃ |
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administrationfor Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first time
as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit. Usually
we use the speediest DHL/UPS/Fedex for small order delivery,and we have longerm cooperated
carriers for commonair & sea delivery with cheap price and high speed.
Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.
Some pictures for reference
