The Most powerful 4ch hd mpeg2/h.264 catv/iptv encoder
Outline

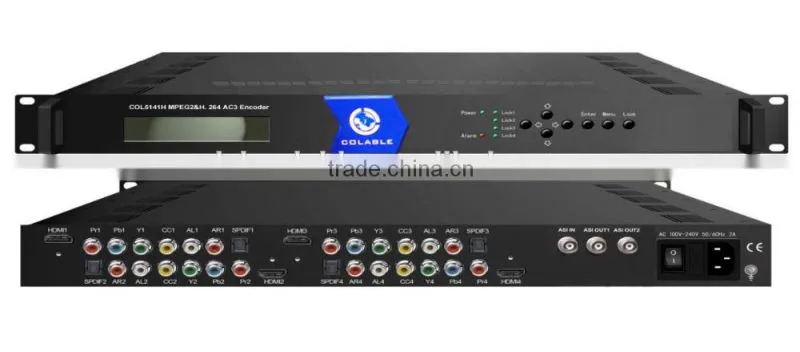

COL5141H MPEG2&H.264 AC3 Encoder is our new professional HD audio & video encoding device with powerful functionality. It has equipped with 4 YPbPr/HDMI/CVBS (Pr in) channels input supporting MPEG-2 & MPEG-4 AVC/H.264 video encoding and DD CC (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding and CC (2.0/5.1/7.1) passthrough. It is also embedded with 4 CVBS port for CC (Closed Caption) only.
To meet customers’ various requirements, it is also equipped with 1 ASI input, and output with 2 ASI ports and 1 IP port.
Features
- MPEG2 HD & MPEG4 AVC H.264 HD video encoding
- DD CC (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
- Support DD CC (2.0/5.1/7.1) passthrough (for HDMI interface only)
- 4* HDMI/YPbPrCVBS(Pr in) channels in
- 1*ASI in for re-mux;
- Support CC (Closed Caption) EIA608, (from CVBS source only)
- Support Low Delay
- LCN (Logical Channel Number) support
- LCD display, Remote control and firmware
- Web-based NMS management; Updates via web

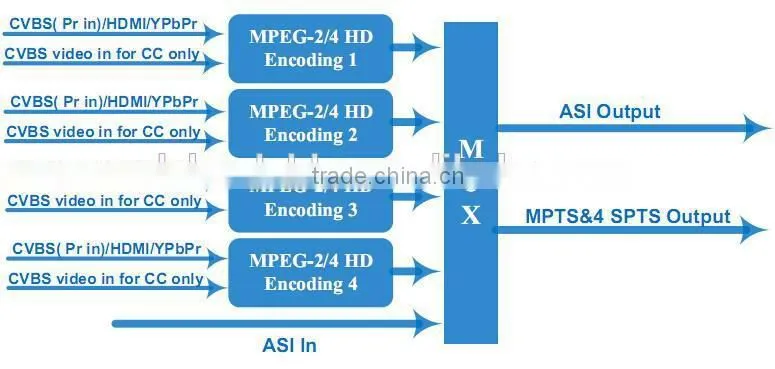

Working principle:
Specifications
|
Encoding Section Video (HDMI) |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
HDMI*4 |
|
Resolution |
1920*1080_60P, 1920*1080_50P (For MPEG 4 AVC/H.264 only), 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
|
Low Delay |
Normal, Mode 1, Mode 2 |
|
|
Audio (HDMI) |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD CC (2.0) Optional; DD CC (2.0/5.1/7.1) passthrough |
Interface |
HDMI*4 /SPDIF*4 |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
|
|
Video (CVBS/YPbPr) |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
CVBS/YPbPr*4 (RCA) |
|
Resolution |
CVBS: 720*576_50i, 720*480_60i YPbPr:1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
|
Low Delay |
Normal, Mode 1, Mode 2 |
|
|
Audio (L/R) |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD CC (2.0) Optional |
Interface |
4*Stereo/8*mono/4*SPDIF |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
|
System |
Local interface |
LCD + control buttons |
Remote management |
Web NMS |
|
Stream Out |
2 ASI mirrored out (BNC type, 100M); IP (MPTS&4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M) |
|
NMS interface |
RJ45, 100M |
|
Aspect Ratio |
4:3; 16:9 |
|
Language |
English |
|
|
General |
Power supply |
AC 100V~240V |
Dimensions |
482*400*44mm |
|
Weight |
4.5 kg |
|
Operation temperature |
0~45℃ |
Application system:
-DVB-C cable tv system:
-DVB-C IP networking system:
-Terrestrial Broadcasting system:
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
