Specifications
Hid ballast(fat)1.hid ballast factory,ce,Emark
2.35w/55w slim canbus ballast
3.canbus efficiency rate>95%
4.fail 1,get2

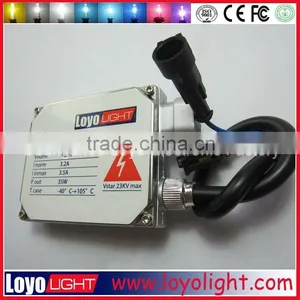

Hid ballast(fat)
Hid ballast specifications:
1) Input Voltage Range DC9V~32V
2) Starting Voltage DC12.8V
3) Input Current 4.2A
4) Max. In-rush Current 15A
5) Output Power 52W-58W
6) Output voltage AC85V±15V
7) Output Frequency 260Hz~280Hz
8) Efficiency: ≥84%
9) Ignition pulse - Typical peak Voltage 23kV Typ. 1s
10)Cooling method - Natural cooling
11)Input Protection, Under voltage protection at 6V±1V
12)Over voltage protection at 34.5V±1V
13)Input connection-reverse protection
14)Output Protection, Short circuit protection between two outputs
15)Open circuit protection between two outputs
16)The ballast matches lamps as H1, H3, H4, H4 (H/L), H7, H8, H9, H10, H11, H13, 9004, 9005, 9006, 9007, 880, 881
Function:
1). Overvoltage Protection
2). Short Circuit Protection
3). Undervoltage Protection
4).Overcurrent Protection
5). Circuit Protection
6). Waterproof, Anti-dust, Shockproof
Packaging detail :
Normal white box, 50 pcs/box,0.5kg/pair,17kg/box by size.
Delivery time:
Samples order in 1-2 days, big order in 3-5 days after payment.
