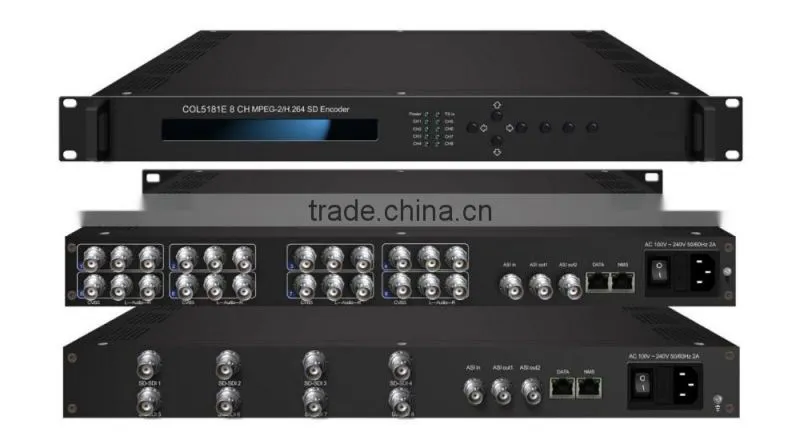

COL5181E 8 channel mpeg-2/h.264 iptv encoder,h 264 sd video encoder
Outline
The COL5181E series 8-in-1 MPEG-2/H.264 SD Encoders are our professional SD audio & video encoding
and multiplexing device with powerful functionality. It has 8 independent channels of unbalanced audio & CVB
video input interfaces or SD-SDI input interfaces. It supports MPEG-2 and H.264 video encoding and MPEG1
Audio layer 2, LC-AAC and HE-AAC audio encoding.Its each channel can reach an ultra-low bit-rate.Morever,
it has an ASI input and can multiplex the input TS with the 8 encoded SPTS to generate a MPTS output.
Features
- Support 8 AV (CVBS or SDI optional),1 ASI Input
- H.264 and Mpeg2 video encoding
- MPEG1 Audio Layer 2, LC-AAC and HE-AAC (V2) audio encoding
- Support PSI/SI editing and inserting
- Supports VBR/CBR video encoding
- Supports ultra low bit rate encoding
- Applicable for one Seg/ISDB-T utilization
- Supports MPTS or 8 SPTS UDP IP Output
- Supports IP null packet filter
- Real-time output bit-rate monitoring
- LCD / keyboard and NMS operation
- Update device through NMS port
Specifications
Input |
8 CVBS/SDI, BNC interface |
|
|||
8 pairs of unbalanced stereo audio, BNC interface | |||||
1 ASI input, BNC interface | |||||
Video |
Resolution |
PAL: 720*576/352*288/320*240/320*180/176*144/ 160*120/160*90-50Hz |
|||
|
NTSC: 20*480/352*288/320*240/320*180/176*144/ 160*120/160*90-59.94Hz | |||||
Encoding |
MPEG-2 / H.264 |
||||
Bit-rate |
0.25~15Mbps for H.264 encoding 0.5~15Mbps for MPEG-2 encoding |
||||
Rate Control |
CBR/VBR |
||||
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
||||
Audio |
Encoding |
MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2 |
|||
Sampling rate |
48KHz |
||||
Bit-rate |
32Kb/s~384Kb/s (each channel) |
||||
Multiplexing |
1 ASI input multiplexed with local 8 channels of TS |
||||
Stream output |
2*ASI output, BNC interface |
||||
MPTS / 8 SPTS over UDP, 10/100Base-T Ethernet interface (UDP unicast / multicast) | |||||
System function |
LCD/keyboard operating, NMS supporting |
||||
Chinese-English control interface | |||||
Ethernet software & hardware upgrade | |||||
Miscellaneous |
Dimension (W× L× H) |
482mm×455mm×44mm |
|||
Approx weight |
4kg |
||||
Temperature |
0~45℃(work), -20~80℃(Storage) |
||||
Power |
AC 100V-220V±10%, 50/60Hz |
||||
Consumption |
25W |
||||
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administrationfor Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first time
as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit. Usually
we use the speediest DHL/UPS/Fedex for small order delivery,and we have longerm cooperated
carriers for commonair & sea delivery with cheap price and high speed.
Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.
Some pictures for reference
