Customized 3030 Matrix Led Pcb Module 70W 10 Series 7 Parallel High Power
- 1000000000 Piece / Pieces per Month
- ZHONGSHAN SHENZHEN GUANGZHOU
- T/T Credit Card PayPal
- High Quality Full Color Diode IC APA102C 5050 RGB SMD LED CHIP
- Built-in IC chip SK6812 MINI Full Color SMD 3535 RGB led
- Black Version WS2811 SK6812 Full Color Diode 5050 RGB SMD IC WS2812B LED Chip
- Factory direct Surface Mount Package Type sk6812-WWA 5050 SMD LED with IC Inside
- SK9822 compatible APA102, double signals, parallel lamp beads, Inner drive ic 5050 SMD LED
- WS2811 SK6812 Full Color Diode 5050 RGB SMD IC WS2812B LED Chip
Product Details
Model Number: | YM-3030 LED MODULE | Chip Material: | InGaN | Emitting Color: | Cool White |
Luminous Intensity: | 120lm/W | Luminous Flux(lm): | 8400lm | Optical Attenuation(%): | 5 |
Power: | Other, 70W | Power Dissipation: | 0.2 | Color Rendering Index(Ra): | 80 |
Color Temperature: | 2700-8500K | Operating Temperature(℃): | -30, 60 | Storage Temperature(℃): | -40, 85 |
Place of Origin: | Guangdong, China | Brand Name: | YM lighting | Certification: | CE |
Product Description
Product Description

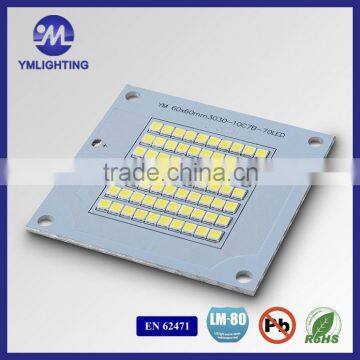

Type | 3030 Matrix LED PCB module |
PCB size | 60 * 60mm |
LED used | 3030 * 70pcs |
Wattage | 70W |
Circuit | 10 series 7 Parallel |
Flux | 8400lm |
Light Efficiency | 120lm/W |
Appliances | 1.Outdoor lighting: Flood lights,High bay lights,street lights,wall washer 2.Commercial lighting display: advertising, advertising light box 3.Landscape lighting: soft light, hard light 4. Car wash internal auxiliary lighting 5. Other lighting and display |
Precaution For Use
1 Storage
a) Do not open moisture proof bag before the products are ready to use.and kept at ≤30℃,≤90%RH
b) After opening the package, LEDs should be stored at ≤30℃,≤60%RH
and be soldered within 24 hours. It is recommended that the product be operated at the workshop condition of 30℃ or less and 60%RH or less.
c) If moisture absorbent material has fade away or LEDs expired storage time, baking treatment should be performed on the following condition: 80℃ for 24 hours.
2 Static Electricity
1) LEDs are ESD and surge high sensitive device. Damaged led will show abnormal electrical performance
2) All devices, equipment and machinery must be properly grounded. Wrist band or anti-electrostatic gloves, anti-electrostatic containers are recommended
Handling
1) Handle the component along the side surface by using forceps or appropriate tools.
2) Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry.
3) Do not stack together assembled PCBs containing the internal circuitry.
Packaging & Shipping
5730: 4K in one reel, 2 reels in one bag , 22 bags in one carton
4014: 5K in one reel, 2 reels in one bag , 23 bags in one carton
3030: 3.5K in one reel, 3 reels in one bag , 22 bags in one carton
2835: 3.5K in one reel, 3 reels in one bag , 22 bags in one carton
FAQ
Q: Are you manufacturer or dealer?
A:We are manufacturer of LED located in Zhongshan , welcome to visit our factory.
Q:Do you have LM-80 report
A:Yes,please contact our sales representative to get soft copy
Q:Can you offer free sample for testing?
A:Yes,free sample is available upon request, but customer will need to pay express charge or provide consignee account
Q:How long is your lead time
A: Normal parts including SMD and COB are 5working days upon payment, for customize parts, will discuss with customer
Q:What’s your MOQ requirement
A: SMD : 100k COB: 10K
