Specifications
NDT ultrasonic test equipment1. Detection range :0-12000mm
2. Gain: 0-110dB, 0.5/2/6/12 step for choice
Ultrasonic test equipment
1. Detection range :0-12000mm
2. Gain: 0-110dB, 0.5/2/6/12 step for choice
What is NDT:
According to ASNT (American Society for Nondestructive Testing) Nondestructive testing (NDT) has been defined as comprising those test methods used to examine an object, material or system without impairing its future usefulness. The term is generally applied to nonmedical investigations of material integrity.
NDT Method:
1- RADIOGRAPHIC EXAMINATION
2- ULTRASONIC EXAMINATION
3- MAGNETIC PARICUL TEST
4- LIQUID PENETRANT TEST
5- EDDY CURRENT TEST
6- ACOUSTIC EMISSION TEST
About product:
1. Detection range :0-1200mm, the minimum display range 0.1mm
2.Operating Frequency: 0.3 ~ 20MHz, sub-broadband, narrowband two tranches
3. Pulse repetition frequency: in total 10 tranches, frequency adjustable.
4. Gain: 0-110dB, 0.5/2/6/12 step for choice
5. Testing wave modes: positive, negative, bi-directional, radio frequency (RF)
6. Monitoring Gate: two independent measurement gates.
7. Echo Evaluation: sound process, horizontal distance, vertical distance, amplitude, dB difference display
8. A-type echo freeze: freezing of the testing pictures
9.Vertical Linearity Error: ≤ 3%
10. Level Linearity Error: ≤ 0.1%
11. Surplus Sensitivity: ≥ 60dB 200mm diameter 2 flat-bottom hole
About company:
IDEA Electronics Technology Co., Ltd. is located in the beautiful coastal city of Xiamen, a domestic first-class high-tech enterprise professional development of non-destructive testing instruments and equipment. It is mainly dedicated to the research and development of the electromagnetic (eddy current, magnetic flux leakage and the magnetic memory), ultrasonic testing, industrial electronic endoscope apparatus and equipment ,has gained many national patents, and obtained the national science and technology fund of technology-based SMEs in technological innovation fund. Products are widely used in aerospace, electric power, oil and gas, metallurgy, machinery and automotive industries
About advantage:
1.The biggest hi-tech enterprise with independent R&D center ,manufacturing center and marketing center in China.
4.Short lead times, competitive price with perfect after-sales service system
About application:

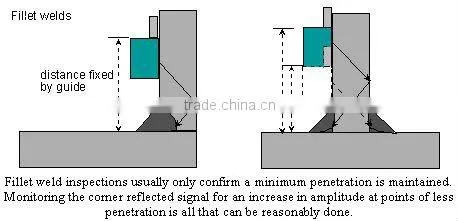

1. Examination of welded point

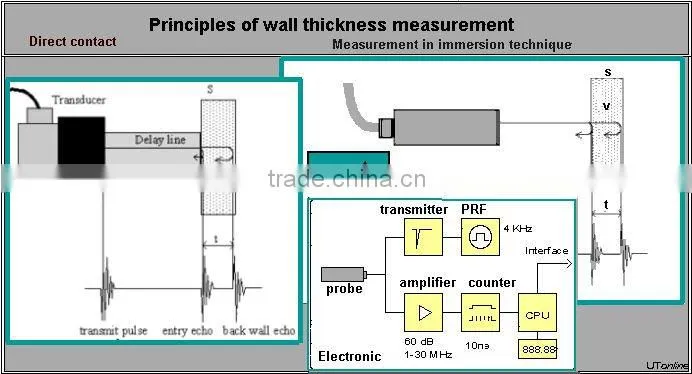

2.thickness measurement
3.Cast and forged products testing
About contact info:
VINCENT WANG
Sales Representative
Phone: 86-592-6301078
Mob: +86-13850022178
Fax: +86-592-6301919
Skype: vincent19840309
Add:Unit 503,No.26 Guanri road,software park,Siming district,Xiamen,China
