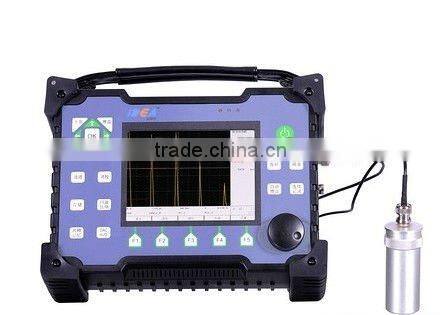

Digital Ultrasonic Testing for Welding Seam Pipe

Specifications

1. Digital Ultrasonic Testing for Welding seam pipe
2. Accurate, stable and portable
4. AWS standard
5. CAD curve generated

Digital Ultrasonic Testing for Welding seam pipe

1. Ultrasonic Testing for Welding
2. Thickness Gauge
3. Accurate, stable and portable
4. AWS standard
5. CAD curve generated



Specification

l         American Welding Society Standard AWS D1.1/D1.5

l         Automatic generation of DAC curve

l         Mass storage of up to 1000 waveforms and the corresponding parameters

l         The use of high-luminance color screen, suitable for various operating conditions.

l         Automatic testing of the probe frequency

l         Visualized thickness alarm function, continuous storage of waveform and multi-waveform measuring modes.

l         Automatic measuring of apparatus indicators and automatic peak search function.

l         A variety of testing standards setting for choice.

l         Distance compensation and the amplification of waveform inside gate, which makes it easier to distinguish the defect signals.



Applications

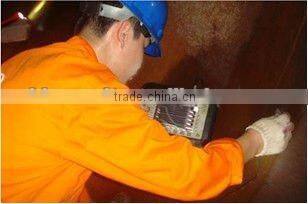

1. Ultrasonic Inspection System in the production of  pipe, tube, bar, plate

2. Portable UT detector for metal tube , metal bar , sheet material and linear materials



Technical Data

Detection Range	(0~9999)mm
Operating Frequency	0.2 ~ 20MHz, sub-broadband, narrowband two tranches
Material Velocity	(1000~9999)m/s
Dynamic Range	≥36dB
Vertical linear error	≤ 2.5%
Horizontal linear error	≤ 0.1%
Resolution	> 40dB (5P14)
Sensitivity Leavings	65dB (flat-bottomed deep hole 200mm, diameter2)

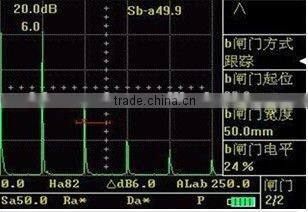

Testing Wave	positive wave, negative wave, full wave and radio frequency
Rejection	(0 to 80)% Linear
Noise level	≤ 8%
Power supply	DC 9V; lithium batteries work for 8 hours or more
Ambient temperature	(-10 ~ 50) °C
Relative Humidity	(20 ~ 95)% RH
Language	Chinese, English
Dimensions	240mm x  170mm x 76 mm
