Mini Industrial Digital NDT Endoscope Tester Made in China

Mini Industrial Digital NDT Endoscope Tester Made in China photo-1
Mini Industrial Digital NDT Endoscope Tester Made in China photo-2
Mini Industrial Digital NDT Endoscope Tester Made in China photo-3
Mini Industrial Digital NDT Endoscope Tester Made in China photo-4
Mini Industrial Digital NDT Endoscope Tester Made in China photo-5
Mini Industrial Digital NDT Endoscope Tester Made in China photo-6
US$ 1 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
Other, Electronic
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Power Other, Electronic

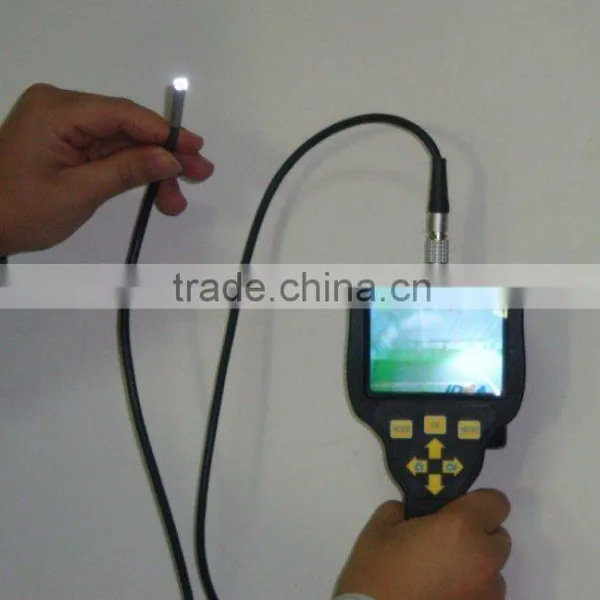

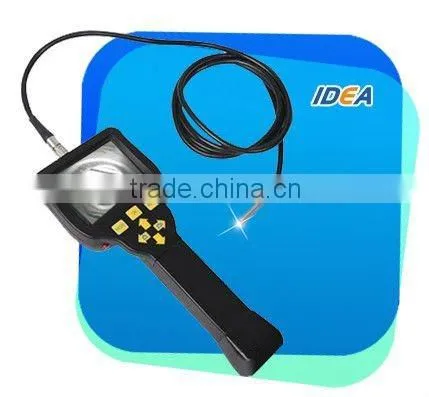

NDT Endoscope

1.Intelligent Industrial endoscope/borescope
2. Complied to intenational test standard
3. Adjustable luminance



Product name Non-destructive measuring equipment made in china
Description IDEAP-GS is one type of technologically advanced industrial video instrument. It
adopts the latest video decoding technology and high-performance 32-bit dual
CPU system to improve the quality of video pictures and refresh rate. Equipped
with mass-storage devices and USB communication capabilities, it’s faster, safer
and more efficient for the testing data browsing.
IDEA-ES has been widely applied to various devices inspection and pipeline inner
flaw detecting. Various sizes of probes to meet your different detecting
requirements. the probe can be rotated 360 degrees to ensure a comprehensive
inspection without any Conner omission. Besides, it’s featured with easy operation
and clear pictures.

Application

















inspection

1. Car: Applied to the quality inspection and assembly testing of the engine,
hydraulic components and the nozzle part
2. Industrial Machinery: used to check boiler, heat exchanger, mechanical
equipment and manufacturing equipment.
3. Petroleum and Chemical: applied to the craft-oriented configuration pipes,
pressure vessels, piping and other equipment inspection.
4. Aviation & space: used for the regular inspection of turbine, blades, combustor,
body check or applied to the R&D and manufacturing of the rocket engine
5. Railways, ships: applied to turbines, heaters, diesel engines, boilers and pipeline





Item Related parameter remark
Probe hardware index
Displayer 3.5inch//4.3inch
Transducer SONY HD CCD
Resolution Ratio 300thousand-10million Pix
Exposure automatic
White Balance mix
Probe diameter Φ4mm/6mm/8mm
Depth of field 5mm~100mm
Waterproofness IP64
Outer skin Stainless steel/ABS plastic
Light Source 2—4—6 white LED
Probe line 1.5M 2M 3M 100M
Probe line type Hard pipe/soft pipe
Probe view angle
360 degree (curve around 90 degree for each by top and
bottom, left and right)(manual operation/motor driven)
connect USB 2.0 can be connected to all computer
Lightness
adjust
Adjust the probe lightness by level
IDEA Video Software
Print Screen Save the testing pictures on spot
Video Save the real time testing process on spot
Image Processing Adjust the picture’s grey level to reach the best definition
Storage SD-—8G
Video output PAL/NTSC
Wireless Transmission
Transmitted powe 0.5W
Effective
transmission
distance
70-150M
Transmission
receiver
frequency
2.4GHz, 4 channel (2414MHz, 2432MHz,2450MHz,
2468MHz)
Compressed
format
Compliant with MPEG4
Still picture save
format
JPEG (1024*768)
Frame Frequency ~30fps
