Specifications
Eddy Current Measuring Equipment for Industrial Inspection1.high-speed & reliable test data
2. international test standard
Application:
1. Steel parts, steel billet, round steel, bar, pipe, weld, cable and other products testing
2. In-service pipe, metal parts testing, analysis and evaluation of nuclear energy, electric power, petrochemical, aerospace, aviation and other departments
3. Boilers, petrochemical industry, pressure vessels, pipelines, oil storage equipment corrosion detection
Brief Description

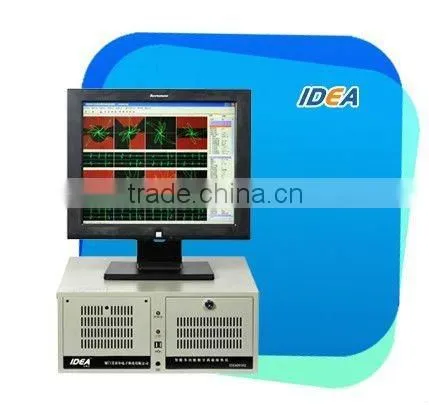

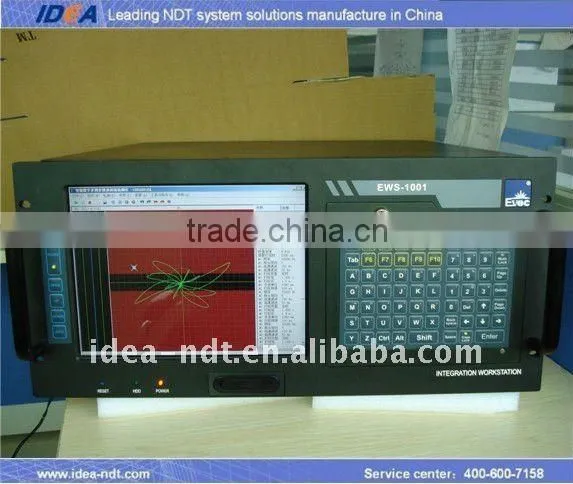

Adopted with the digital integrated technology,eddy current technology,optoelectronic technology and micro processing technology, the high-speed multi-channel eddy current detector is the high-tech full-automatic electronic testing machine. Equipped with the delicate mechanical transmission, it makes us well-known as the exclusive domestic ndt detector supplier with complete set of automatic testing system.
With the software coded by the WINDOWS platform, it’s easier and more intelligent for testing. Besides, the instrument is featured with stable and reliable performance, full-automatic testing and fast testing speed.
Characteristic:
1. Full-digital testing system.
2. Provide professional detecting scheme
3. High-precision and high speed automatic testing
4. fittings can be high-precision delayed marking electronic modules,magnetic saturation,probe holder and easy-operating marking machine to realize full-automatic eddy current flaw testing
5. Equipped with professional eddy current analysis software with powerful data processing ability.
6. Automatically generates and saves the testing reports
Main Technical Parameters
Main Technical Parameters | |
Frequency range |
50Hz-10MHz |
Phase |
0-359°,continuously adjustable, precision 1 ° |
Gain |
0 dB ~ 99 dB with 0.5dB for each step |
Display |
Impedance display, time base display |
Digital Filtering |
High-pass frequency (0Hz ~ 2000Hz); low-pass frequency (0Hz ~ 2000Hz) |
Alarm mode |
Multi-mode,non-constant-amplitude phase / amplitude domain Alarm,built in alarm |
Data storage |
Testing Parameters and testing result query and playback |
Series Products
IDEAD0101 Eddy Current Detector (single channel)
IDEAD0102 Eddy Current Detector (dual-channel)
IDEAD0104 Eddy Current Detector (four-channel)
IDEAD0108 Eddy Current Detector (eight-channel)
IDEAD010X Eddy Current Detector (OEM channel number)
