Rapid and Reliable Aircraft Wheel NDT Eddy Current Testing System

Specifications

1.Rapid and reliable aircraft wheel NDT eddy current testing system
2.Rapid digital /analog electronicbalance
3.ET flaw detect

Rapid and reliable aircraft wheel NDT eddy current testing system

1.automatic online ECT flaw detector system
2.Rapid digital /analog electronic balance
3.ET metal flaw detector
4.eddy current



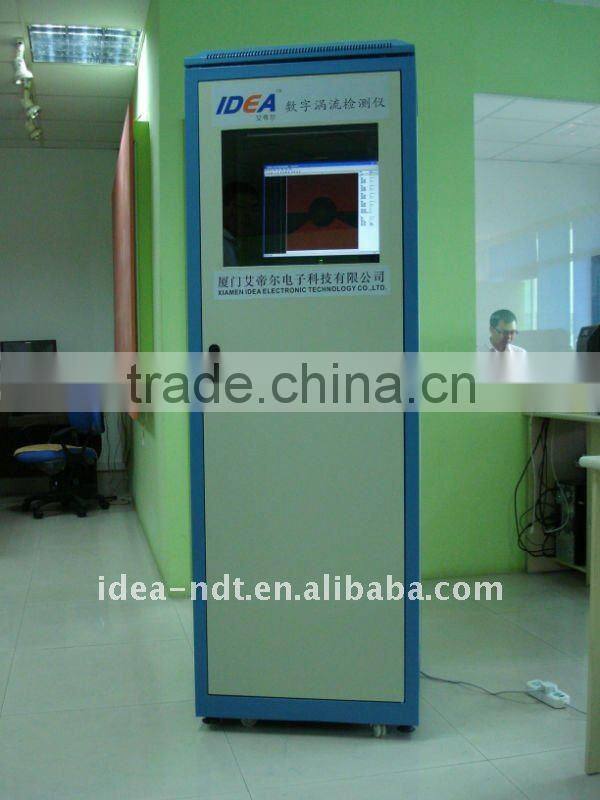

The online Eddy current inspect flaw instrument is used large-scale imported integrated circuits, with the most advanced eddy current technology, photoelectric technology, which was computer-controlled automatic detection machines. Supported by the exquisite design of mechanical devices, form a complete mechanical and electrical systems, is the only system with complete sets of automatic eddy current inspection machine.



Used the Windows XP platform to compile the software, makes the instrumentation to be simpler, intelligence.  Property stable, reliable, high-automaticity and speed, specially applied in high speed examining the metallic pipe, the stick, the wire’s crack



 IDEAD0101 the intelligent online eddy current inspect flaw instrument can sensitivity examine each different material’s flaws on metallic pipe, stick, wire rod surface crack, submerged joint, blowhole, mixture and aperture crack .



IDEAD0101 eddy current inspect flaw instrument with range from50 Hz to 5MHz testing frequency , has adapted to a variety of metal pipe testing request, various alarm mode, fast automatic digital electronic balance and use digital design. Therefore, the equipment can be established standard testing process, it is great convenient for the users to change the different specifications of the material.



IDEAD0101 may match the coupling gap which request very low to pass through the type coil and other structure coil (probe head's choice definitely may decided by the user's examination request), the instrument may match with high accuracy time delay to sign-hit electronic module, the magnetic saturation as well as simple sign-hit machine, the probe head frame, to realized the aim the metallic pipe eddy current online automatic flaw testing.



Application field

Apply in testing of metal pipe & tube & bar

Testing standard


GB/T 7735—95     GB/T 11260—96     ASTM-E  243—97



Main parameter of instrument:

 Detection channel: 1--4

 Frequency range: 50 Hz -- 10 MHz

 Gain range: 0 -- 99.0 dB continuous-tuning, step: 0.5dB

 Phase rotation: 0 -- 359 ° continuous-tuning, step: 1 deg

 Gain than: (X / Y) 0.1 -- 10.0

 Detection speed: 0 m / s -- 200m / s

 Adjustable driver probe (incentives) grade: 1 to 8.

 Rapid digital / analog electronic balance.

 Non-rate, non-symmetrical phase set alarm region

 More in the way: Impedance, time-base

 Digital filtering: Low-pass : 0 Hz -- 2000Hz  High-pass:0 Hz -- 2000Hz

 Delay hardware output alarm, real-time hardware output alarm

 Sound and light alarm output

 Marking a delay, the accuracy of 0.01 seconds.

 Self-balancing time: 1 to 1000 seconds

 Inside and outside the clock choice.

 With the first-and-tail signal removal function.

 Can store large variety of testing procedures and testing data

 Eddy signal intervals can be extended functions, measurement defects amplitude, phase, the digital value

Automatically records show that the number and location of defects.

Automatically create test report (including the number of detection, the number of qualified and unqualified few).

Display: Solid line, blanking

Blanking show factor: 1-100;

Operation in the English language, online help

Cartesian coordinate system and a coordinate system background choice.

Automatic calendar and time display.

Power supply: 220V (-20% ~ +20%), power consumption <10W









System technology

Eddy-current test system with digital system technology for automatic, highresolution, multi-channel flaw testing on wires, bars, tubes and pipes made of ferromagnetic and austenitic steels and non-ferrous metals. Universal test system,which can be adapted to individual applications and requirements. Configurable test sequence programs for piece testing,continuous testing and testing with subsequent cutting simplify matching to production conditions.



Extensive documentation for each part and each flaw allow subsequent research and form the basis for product liability. Continuous monitoring of operational safety and reliability is a foregone conclusion.



Statistics

Individual analysis of the test results with MS Office tools thanks to direct access to the result database.
