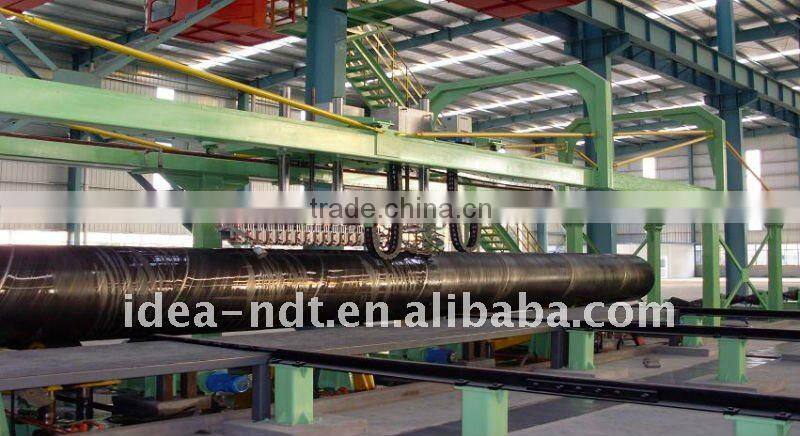

Highest Advanced Off-line Rotary Ultrasonic Testing System

Highest Advanced Off-line Rotary Ultrasonic Testing system

1.High speed testing sysetm

2.High accuracy and stability

3.Easy to operateion

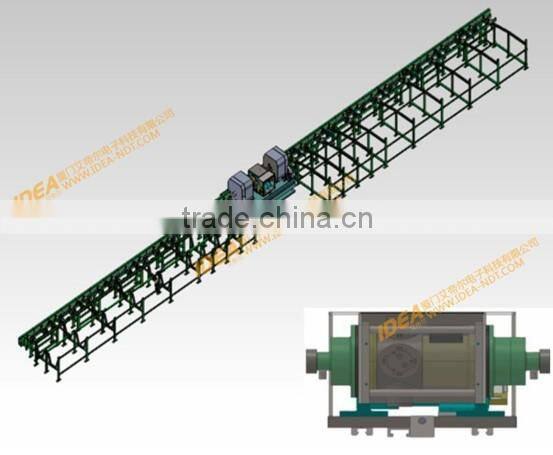

System Design

1. System Introduction

This is the rotary off-line ultrasonic testing system , the testing work pieces will be automatic put on the up-loading platform ,then go directly to the ROTA Ultrasonic testing parts for testing,then according to the testing results , the workpieces will be automatic off-loading and sorting to qualified area and unqualified area.

This testing model can achieve the high speed testing, also can make sure the high precision and high stability.

2.Testing object: seamless pipe , steel bar

 3.Testing material : Carbon steel ,stainless steel,copper,aluminium,titanium and different kinds of non-ferrous and ferrous metals

4. Testing speed : 0-30m/min

5. Testing model : Off-line rotary ultrasonic testing : Workpiece moves directly , the probes high speed rotated

6. Testing Standard :

ISO 9303:1989---- Seamless and welded (except submerged arc-welded) steel tubes for pressure purposes —Full peripheral ultrasonic testing for the detection of longitudinal imperfections

ISO 9305:1989---- Seamless steel tubes for pressure purposes — Full peripheral ultrasonic testing for the detection of transverse imperfections

YB/T 4082-2000 Measurement method of comprehensive properties for automatic ultrasonic flaw detection system for steel tubes

    GB/T 5777-2008 Seamless steel pipe and tubing methods for ultrasonic testing

GB/T 3310-1999  Method of ultrasonic inspection for copper alloy bars

GB/T 4162-91 Forged and rolled steel bars - Method for ultrasonic testing

API SPEC 5L Specification for Line Pipe

GB/T9711.1-1997 Petroleum and natural gas industries-Steel pipe for pipelines-Technical deivery conditions

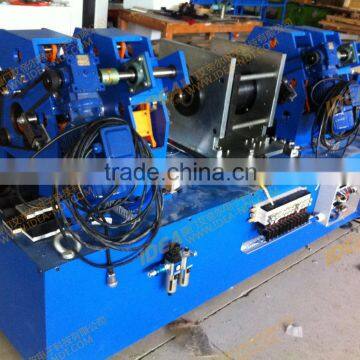

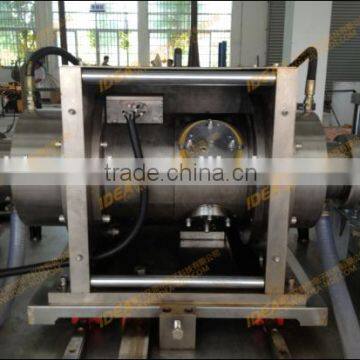

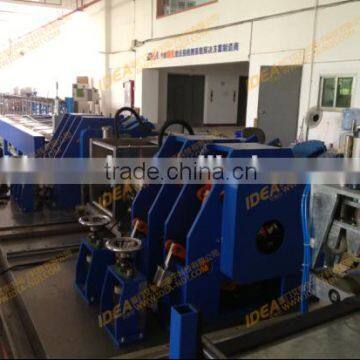

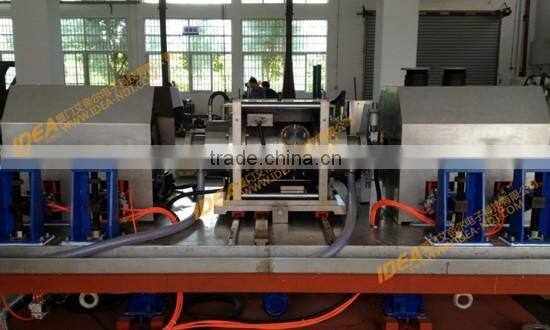

Real picture 1: Rotary ultrasonic testing parts/ Rotary probe head

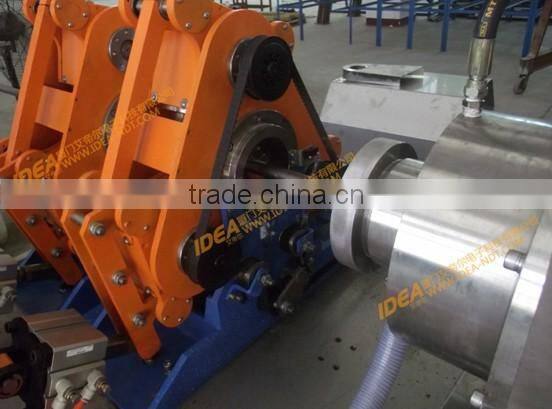

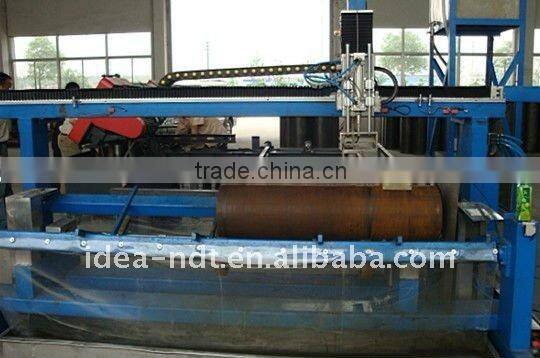

Real picture 2 : Auto control Tube centering system

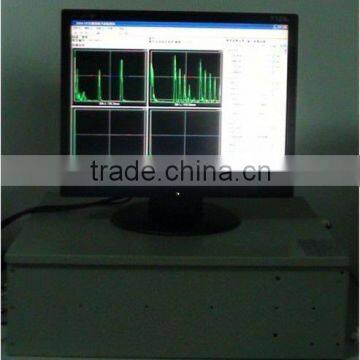

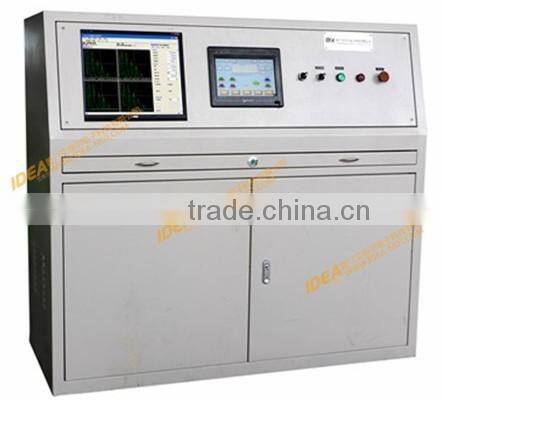

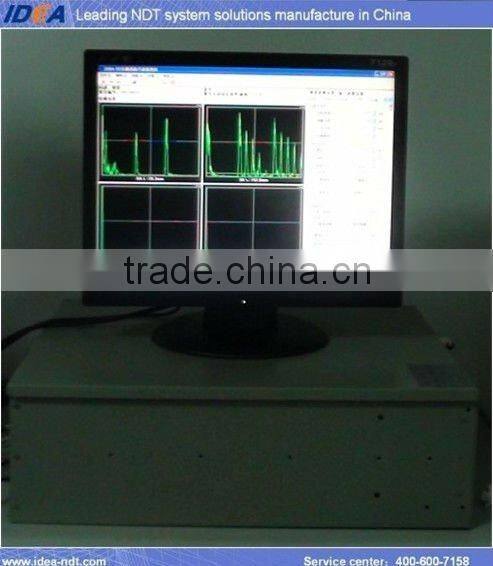

Real picture 3: Automatic electronic control table

Features

1.1. It is highest advanced system in the Ultrasonic testing industry which with the highest testing speed

2.2. With the superhigh precision and stability

Applications

Metallurgy, machinery manufacturers, such as seamless pipe, titanium tube etc.
Steel Bar :titanium bars , precision steel bars ,aluminum bar etc.
Parameters
