Metal Welding Magnetic Memory Inspection Equipment

Specifications

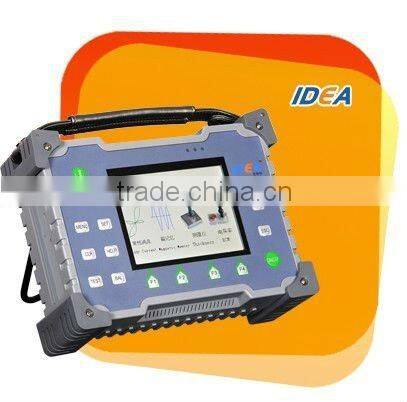

Metal welding Magnetic Memory inspection equipment
2.Fast digital electronic balance
3.Real-time trace memory
4.NDTinspection

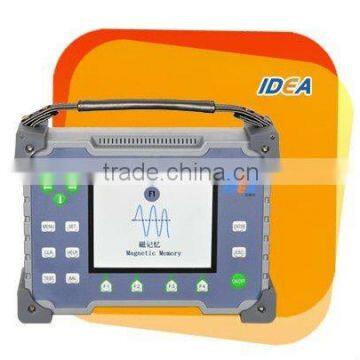

Hand-held Metal welding Magnetic Memory inspection equipment
2.Fast digital electronic balance
3.Real-time trace memory
4.NDTinspection



IDEAP0201 is designed by a new detecting method to evaluate metal material characters. That method bases on metal material can causes stress concentration area, when the part worked by outside stress. That method belongs to a fast examination method, don't request to clear metal surface.



The Metal Magnetic Memory method is the main mission that to checked to have in the object if stress concentration area, the area most dangerous of the part or work piece, then can use other methods to check again this area, other methods such as the ultrasoundeddy current detecting, so that this method can raise detecting efficiency and to enhance works or parts safety.

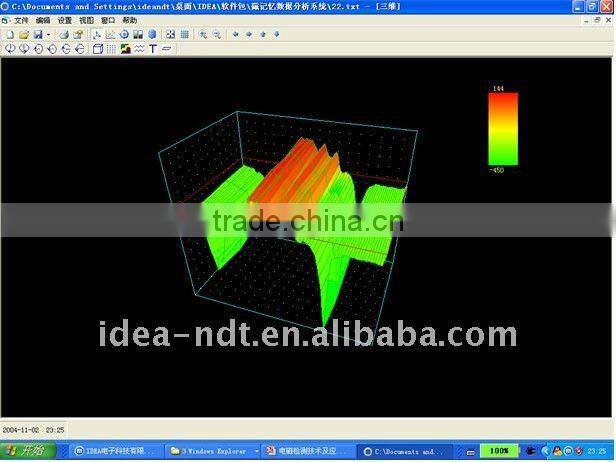

IDEAP0201 Metal Magnetic Memory /eddy current tester adopts the latest digital signal processing,, can satisfy your different examination need and show mode, such as Time-Base wave, to show original signal, the grads of the original signal, the absolute value of the magnetic field manifestation, can let you get various different magnetic fields to distribute an information.





Applications of Metal Magnetic Memory NDT inspection

To show stress concentration area in early days, this area are all of the main source coming into damage.

To measure stress concentration area if this area have flaws, and to evaluate its dangerous degree.

The beginning of the metals structure, to measure the future crack development of positionsize and direction.

Evaluate the actual work time of equipments.



Specification of this NDT  Metal Magnetic Memory diagnostic unit

Large screen, high luminance 5.7 inch colored TFT-LCD

Examination channel number: 4 (can be expanded to 64 channels)

Gain: from 0dB to 99dB, step lengths: 0.5dB

Display usage: wave, gradient, numerical value

Digital filter: qualcomm frequency (0.1HZ~10HZ), Low-pass frequency10Hz1000Hz

Warning setting: Each channel independent non-constant-amplitude size

Store 10 groups inspecting technics parameter

Store 10 graphics (can be expanded to 10,000),the graphics can be restored in a USB

PC communication: USB 2.0 and RS-232

Operating system: Linux 2.6

Operation System  language: Chinese, English, easy to operate

Build-in rechargeable lithium battery 8000MAH

Coordinate system: Rectangular coordinate system

Central coordinates: Adjustable

Show the calendar, time and capacity of battery automatically

Charging power range:110V220V20 20 50 60Hz

Working temperature :-10~ 50

Instrument volume: 210 MM x 130 MM x 90 MM

Instrument weight: 2.0KG

Online hotkey graphics, text help

Turn off manually or automatically

Fast digital electronic balance
