Custom-made NDT Eddy Current Testing System

Specifications

1.Custom-made NDT  Eddy current testing system

2.Inspection passages:1 ~128
3.Acousto-optic alarm output
4.ET system

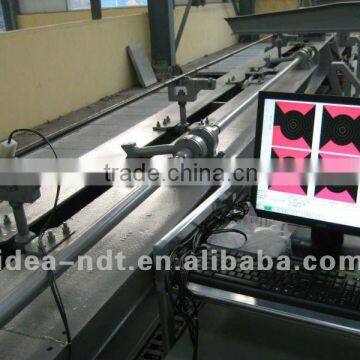

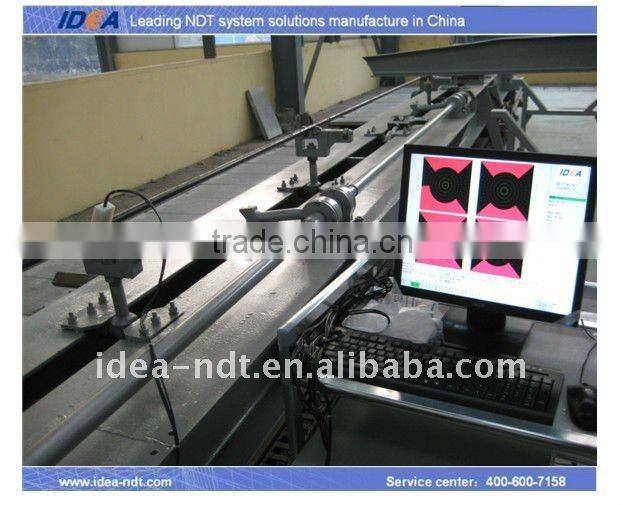

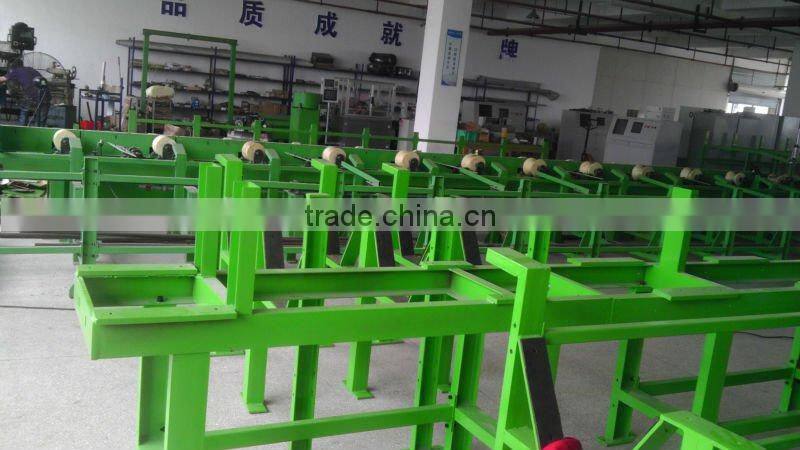

Eddy Current -----Online pipe and tube Eddy current testing system

Eddy current testing system uses the most advanced digital electronic technology, photovoltaic technology and microprocessor technology. With beautiful design automatic transmission, complete electromechanical integration system, which is the only company that have a complete system of automatic machine.

Use WINDOWS to write the software, so the instrument is more convenient and intelligence. Equipment performance , reliability, the stability of automation and high speed, used for rapid detection online metal tube, metal bar and linear materials.

Intelligent online eddy current testing instrument can quickly test the crack, concealed joint, air hole, entrapment and welding cracks of  the metal tube , metal bar and linear materials , which has high detection sensitivity.

Intelligent eddy current testing instrument with a 10Hz to 10MHz frequency range, able to cope with all sorts of metal piping testing ,many different kinds of alarm model, fast digital / automatic electronic balance. Therefore, it can establish standards for the detection and the users can change the specifications for different materials.

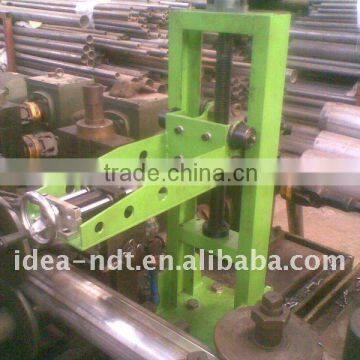

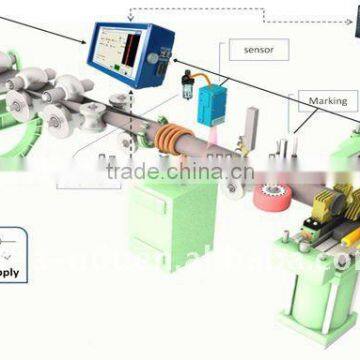

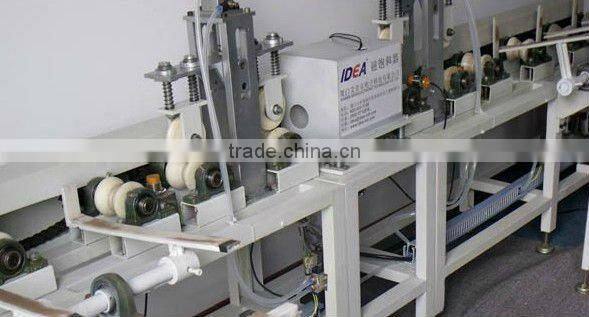

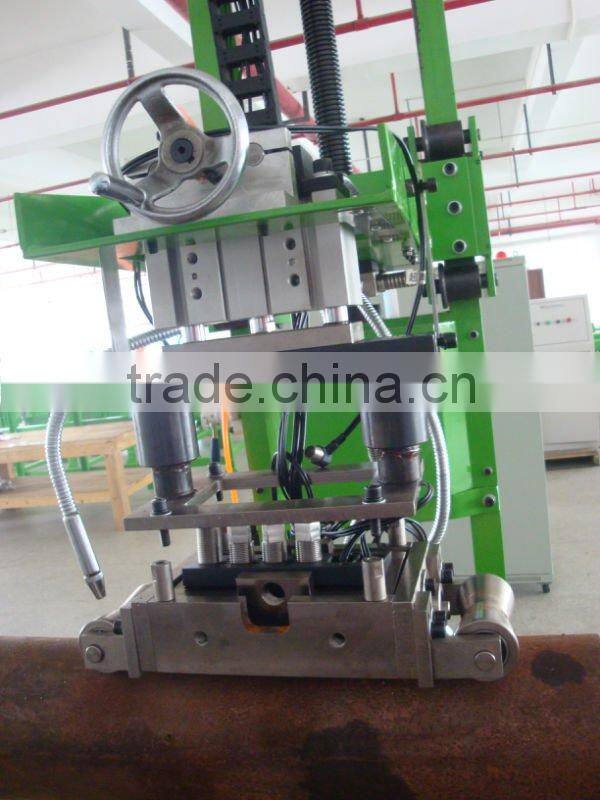

Intelligent eddy current testing instrument can coupled with the low coupling gap through type coil or other type coil ( Probe can choose as your demand ) . The instrument may match with high accuracy time delay to sign-hit electronic module, the magnetic saturation as well as simple sign-hit machine, the probe head frame, to realized the aim the metallic pipe eddy current online automatic flaw testing.

Applications

Metal tube , metal bar , sheet material and linear materials

Standard

GB   ASTM    API   EN   JISG   JB  ISO  MH  JG  YB

Main Technical Data

Inspection passages: 1 ~128

Detection speed : 1~600m/min

Multi-mode,non-constant-amplitude phase / amplitude domain Alarm,built in alarm

Digital Filtering: High-pass frequency (0Hz ~ 2000Hz), low-pass frequency (0Hz ~ 2000Hz)

Real-time alarm output, alarm output delay

Acousto-optic alarm output

Delay and Fixed-length marking , the accuracy is 0.001S/mm

With the first-and-tail signal removal function.

Can store large variety of testing procedures and testing data

Can back the extension function, detection the amplitude,phase and binary value of the imperfection.

Automatically record and display the defects and their position

Automatically generate inspection reports ( including the number of inspection, acceptance number and rejection number)
