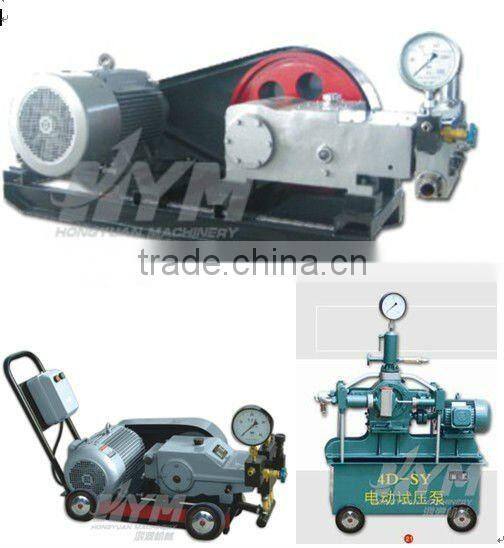

Uhp Electric Hydraulic Test Pump(200MPA) ,hydraulic Pressure Tester 3D-DY

FOB Price

US$ 4,500 - 4,800 / Set

1 Set(Min. Order)

Port TIANJIN PORT /ANY PORT OF CHINA
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	HAORI
Model Number	HY	Theory	Reciprocating Pump
Structure	Piston Pump	Usage	Other, TESTING
Power	Electric	Standard or Nonstandard	Nonstandard
Fuel	Other, Electricity	Pressure	High Pressure
Application	Metering

Product Description

Specifications

Uhp electric hydraulic test pump, the use of safe, high pressure testing, preferential price

3D - SY series, can satisfy all sorts of ultrahigh pump, valve for containers, pipeline and blasting test hydrostatic test, the test pressure in atmospheric pressure rated discharge to. The pump is generally medium emulsion, usable also antirust water and viscosity and similar neutral oil emulsion, its temperature for 5 ~ 60 ° c.

Specifications

The high pressure pump: Max Flow: 158L/min; 9.48m3/h,Max Power: 90kW,Max Pressure: 70MPa.factory tested before shipment

A. The characteristics of the high pressure pump 3D2A-S

the structure of needle bearing between crankshaft and connecting rod,
lower friction coefficient,
very good lubrication,
stable driving,
low temperature
suitable for long time operation.

B. Applying fields:

coal excavation with high pressure water jetting
hydraulic liquid supply in the well,
high pressure water cleaning,
metallurgy descaling,
powder metallurgy,
shipping rust elimination,
basic engineering,
liquid transportation,
engineering and pressure test for various rubber hose,
metal tube and oil well

C. The medium to be pumped

clear water
emusion
some other chemical liquids

D. Technical parameters

RPM min^-1		1480
Plunger impact frequency min^-1		332
Power KW		30	37	45	55	75	90	Plunger Dia
Power KW		30	37	45	55	75	90
Rated Flow		Pressure
L/min	m³/h	Mpa						mm
30	1.8	53	64	70				20
37	2.22	43	50	62	70			22
45	2.7	35	42	51	62			24
52	3.12	30	36	44	54	70		26
60	3.6	25	30	40	47	65	70	28
70	4.2	22	28	33	42	56	70	30
80	4.8	18	24	30	36	50	60	32
95	5.7	15	20	25	30	42	50	35
125	7.5	12	15	19	23	32	38	40
158	9.48	9	12	15	18	25	30	45
Weight	Single pump: 600 Kg Base: 130 Kg

Max Flow: 158L/min; 9.48m³/h

Max Power: 90kW

Max pressure : 200 Mpa
