16 Port PoE Switch full Gigabit with 2 giga SFP fiber port
16 Port PoE SwitchIntroduction

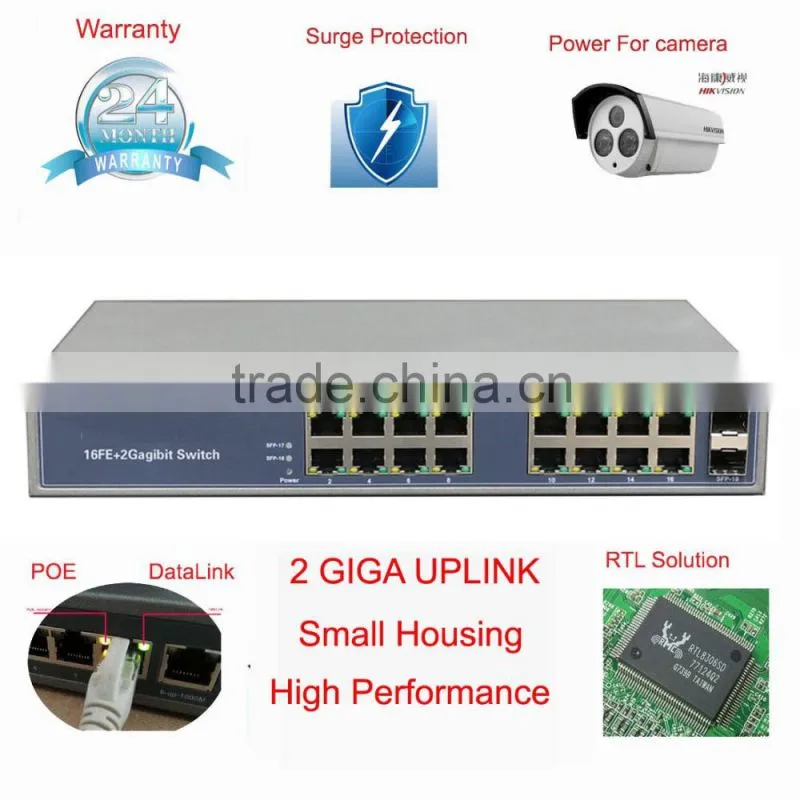

TS1816GF 16 PORT POE SWITCH SUPPLY 16*10/100Mbps POE ports and 2 giga SFP fiber ports, built-in max up to 400w POWER ADAPTER
TS1816GF is applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easyfor network transmission.
This device comes with SFP port, easy for optical fiber remote transmission.
Main Features
16FE POE+2SFP, with different modules, can up to 100KM.
Comply to IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,802.3X,802.3z.
Comply to POE IEEE 802.3af/at standard, all ports standard testing.
Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
Auto MDI/MDIX.
Upstream port lightning protection.
MAX 30W, MAX power 250W.
Store-and-forward.
All ports support wire speed switch, jumbo frame transmission.
Zero QFD, self-adaption.
Panel lights can monitor operative mode and malfunction analysis.
Specification
Model |
TS1816GF |
|
Electric Port |
100M POE |
16 |
SFP |
2 |
|
|
Function |
Exchange Mechanism |
Store-and-forward |
Exchange Capacity |
12.8G |
|
MAC |
8K |
|
|
Environmental |
Working Temperature:0℃~40℃ Storage Temperature :-40℃~70℃ |
|
|
Working Humidity :10%~90% RH non-condensing Storage Humidity:5%~90% RH non-condensing | ||
POE |
IEEE802.3af/at, MAX 30W, MAX power 250W |
|
power |
AC110-265V 50/60HZ 2.5A |
|
|
Network protocol |
IEEE 802.3X IEEE 802.3i 10BASE-T X IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-X G IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control IEEE 802.1q VLAN Bridge operation |
|
|
Default Mode |
Common switch |
|
Match |
VLAN isolation |
|
|
Speed |
Ethernet 10Mbps half-duplex, 20Mbps full-duplex Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex Gigabit Ethernet 2000Mbps full-duplex |
|
|
Network Media |
10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤100m) 100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
|
Physical Specifications |
Product Size:285mm*220mm*45mm(L*W*H) package Size:410mm*280mm*95mm(L*W*H) 2.2Kg |
|
Product Ordering Information :
Model Number:TS1816GF
Product Details:16FE POE+2SFP
FAQ
1.What is the warranty on the parts you sell?
All parts sold by YINET meet all of the manufactures specifications and carry one year warranty. Some customized products could carry up to three years warranty.
2.How to repair a broken product?
Usually we supply free substitute model for the small value products. and we bear the freight. For Big-ticket items or high value products,Considering the high freight and cost we can supply free parts such as PCBA,power adapter or power supply etc. We can also provide remote guidance.
3.What payment methods do you offer?
We accept payment via T/T, L/C,Western Union, MoneyGram and PayPal;
4. What is your minimum order?
To achieve customers' satisfaction, we accept sample order, even one Piece.
