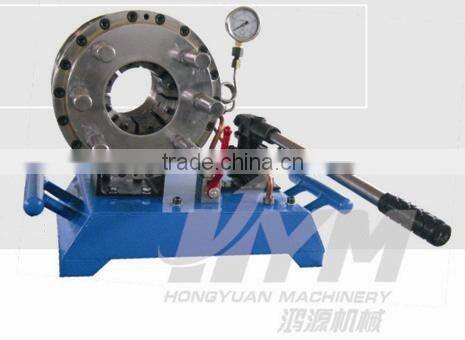

JKS 200 Portable Hand Hose Crimping Machines 32MM Hand Operated Crimping Machine

Specifications

JKS 200 hand hose crimping machines
hose range:6-32MM
pressure:40T
displacement of oil pump:30ML
8 set dies

JKS 200 hand hose crimping machines

,portable hose crimping machines 6MM UPTO 32MM/hydraulic hose crimping machine 6MM UPTO 32MM (MANUAL)/manual rubber hose crimping

JKS-200 MANUAL Hyd hose crimping machines 6MM UPTO 32MM is a portable type of machine which is much suitable for the outdoor work and production of without electric power.



3

JKS-200 Hose crimping machine

2,Instruction

Hose crimping machine is a portable type of machine which is simply designed and convenient for operating and carrying. It takes manual pump of extra high pressure as power source. So it’s much suitable for the outdoor work and production of without electric power.

 3,Technical data

 1,Specifications,            JKS-200

2,Hydro-cylinder pressure,     40  T

3,Displacement of oil pump,    30  ml

4,Hydraulic oil,              Summer, YB-N46

                                    Winter,B-N32

5,Crimping  range.           φ6——φ32mm

6,Weight,                    120  kg

7,Volume,                  600×500×370mm³

Operation o  Hose Crimping Machine

 1. Release the pole (3) by the handle (random accessories), set the dies one by one, according to the number and clean the awl surface and flange. Put the side with letter foreword. Please make sure that the die marches the hose: the inner diameter of hose is the size mm of die.

2. Screw up the valve (10), and then tighten (7).

3. Lift (8) to put it on and then put down it. Repeat this movement and pay attention to the changing of the Pressure gauge (6) until it reaches 16.5MPa.The maximum pressure for swage should not pass 20MPa.

4. After swaging the hose, please revolve (10) and (7) in contrary direction. Then the dies will be released automatically. Take the swaged hose out.

5. Clean the machine after working and cover it with the plastic shelter.

Packing lis

No.	Name	Dimension	Quantity	Notice
1	Dies		8
2	Oil gun		1
3	Oil box		1 --
4	Pull-rob		1
5	User’s manual		1

Technical Parameter Reference Tabl jks-200   hose crimper
Nominal internal diameter of rubber hose  φmm	Nominal outside diameter of the pipe sleeve φmm (before buckling)					Nominal outside diameter of the pipe sleeve  φmm (after buckling)					Internal diameter of the mould φmm					Corresponding scale    mm
	Layer 1	Layer 2	Layer 3			Layer1	Layer2	Layer3			Layer1	Layer	Laye3			Layer1	Laye 2	Laye 3
6	19	21	23			16	18	20			16	16	19			0	4.4	2.2
10	23	25	27			20	22	24			19	19	23			2.2	6.6	2.2
13	28	31	33			24	27	29			23	26	26			2.2	2.2	6.6
16	31	34	36			27	30	32			26	30	30			2.2	0	4.4
19	34	37	39			31	33	35			30	30	34			2.2	6.6	2.2
22	38	40	42			34	36	38			34	34	38			0	4.4	0
25	40	43	45			36	39	41			34	38	38			4.4	2.2	6.6
32	49	51	53			46	47	49			45	45	45			2.2	4.4	8.8

4,are appling CE certificate, factory founded in 1978 with more than 30 years experience.

 5,all  life technical    service
