Specifications
open frame power supply1.Universal AC input range
2.Low ripple and noise
3.Protection:Short circuit/Over load/Over voltage

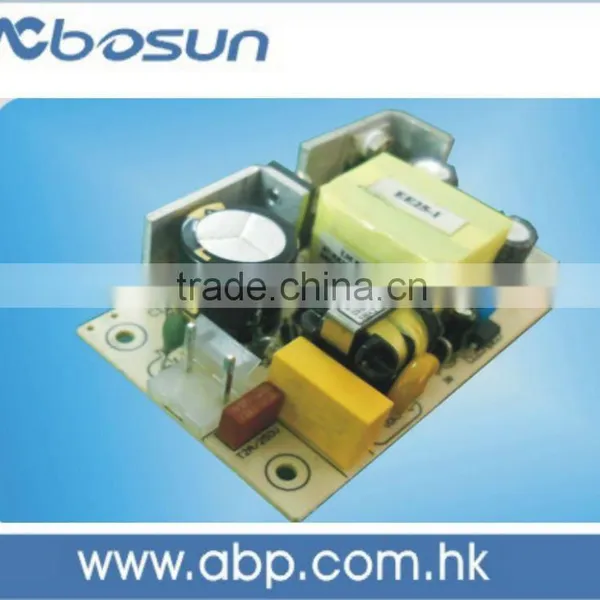

open frame power supply
Our main products include Switching Power Supply, Open Frame Power Supplies, Single Output Power Supply and PC Power Supply, etc. We provide high quality products with good prices.
Feature
• Universal AC input range
• 100% Burn-in and Hi-pot tested
Electrical Specifications
• Input range :90-264VAC
• Frequency : 50-60HZ
• Inrush current : < 70A peak @230VAC; cold start @25°C
• Input current (rms) : 1A @115VAC; 0.5A @230VAC max.
• Efficiency : >70% typical @full load 115VAC
• Maximum output power (Po) : 13 Watts convection cooling
• Hold-up time : > 10ms typical @full load, 115VAC
• Short circuit protection : Auto-recovery
• Over load protection : Auto-recovery
Environmental
• Operating temperature : 0 to +60°C (Derate linearly 2.5% per °C from 41 to 60°C)
• Storage temperature: -10°C to +70°C
• Humidity: Non-condensing 10% to 95%
• MTBF : > 80,000 hours @full load and 25°C ambient temperature
| Model | Output voltage | Minimum load | Maximum load | O/P regulation | POWER | Ripple & noise (Vp-p) |
ABP-1020 |
5-48V |
|
4A |
+/-5% |
20W |
2% |
