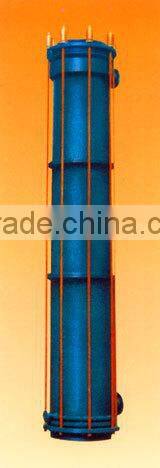

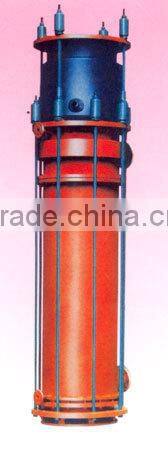

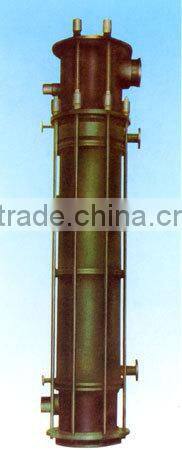

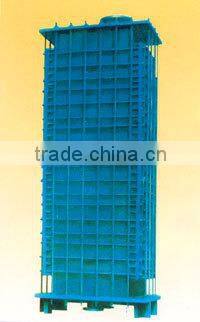

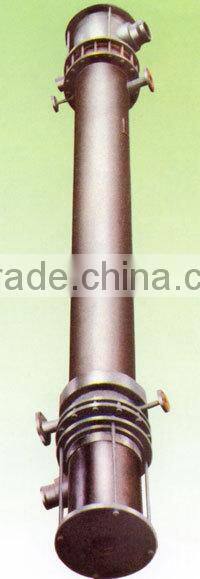

By-product steam three-in-one hydrochloric acid synthesis furnace
STRUCTURE AND FEATURES
The product is mainly composed of mixed burner, HCL synthetic section, byproduct steam section, furnace top cooling absorption section, liquid distributor, etc., and has the advantages of compact structure, small floor area, stable operation, high thermal energy utilization rate, large operating flexibility and realization of automatic control. It is the current preferred equipment for production of high purity acid.
TECHNICAL FEATURES
Designed temperature:
Tube pass: wall temperature of synthetic section 220℃
Shell pass: byproduct steam section 175℃
Hydrochloric acid outlet temperature 50℃
Designed pressure:
Tube pass: 0.1MPaG
Shell pass: byproduct steam section 0.8MPaG
furnace top absorption section 0.4MPaG
Hydrochloric acid31%: 30-400T/DAY
Standard export packaging
Our company takes honesty as foundation, and customer first for the purpose! Welcome new and old friends to come and give guidance!
The Company always devotes to provide customers with traditional mass transfer, heat transfer and anticorrosive equipment and technology solutions. There is mainly HCL Synthesis (absorption) system, Hydrochloric acid deep (conventional) analytic system, waste water (waste gas) disposal system, sulfuric acid concentration and hydrogen chloride drying system; main products are: by-product steam graphite 2 (3 4) in one synthetic furnace, round piece of hole type heat transfer and absorption equipment, resin extruded tube and asphalt dip tube heat exchange and absorption equipment, graphite mixing axe and tower equipment, of dozens of varieties and thousands of specifications as well as various non-standard equipments. The equipment and system solutions are sold to dozens of countries and areas like France, the United States, India, Egypt, Vietnam, Iran,Turkey and Taiwan.
