Help Center2mm to 50mm Black Durostone for SMT Processing
Related Products
-
Black Antistatic Durostone Sheet for ICT FixtureUS$ 9.5 - 12.5MOQ: 20 Pieces -
Durostone Sheet ExporterUS$ 6.79 - 12.18MOQ: 20 Pieces
-
Durostone Forfor Wave Solder FixturesUS$ 9.5 - 12.5MOQ: 500 Kilograms
-
Blue Lead Free Complex Durostone Sheet for ProcessingUS$ 9.5 - 12.5MOQ: 300 Kilograms
-
Synthetic Stones ManufacturersUS$ 7.62 - 13.32MOQ: 100 Kilograms
Specifications
1.High temperature resistance durostone factory2.High mechanical strength
3.Resistance to chemical corrosion

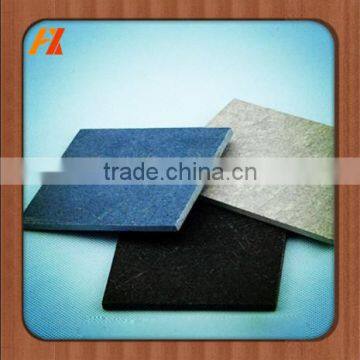

Name: Durostone
Size
Durostone | |
Thickness |
L*W |
3-50 mm |
1020X1220 mm/1160x1260mm |
Type: Sheet /Board
Grades:
1. Standard model , color: Blue/Red/Dark Grey/black
2. Antistatic model, color: Black
Description
Durostone is a heavy-duty glass fiber reinforced plastic which offers extreme strength and excellent electrical, thermal and chemical properties. It can keep its mechanical strength, smoothness and original color when continuously used under the temperature of 280°c (max. working temperature below 385 degree 10~20sec).In addition, durostone have the advantage of easily machining, high intensity and can be easily machining into special mechanical parts.
Main Characteristic
1. Normal working temperature at 325 °C, operating temperature up to 384 °C
2. Less distortion, low thermal conductivity
3. Superior dimensional stability, Long life
4. High temperature resistance
5. Resistance to chemical corrosion
6. High mechanical strength
7. Good machinability (low density)
Application
1. Support thin baseboard or soft substrate circuit board
2. Carry an irregular shape solder pallet
3. Use multi-pak panel design to improve production efficiency
4. Prevent the deformation of the solder pallet during high temperature reflow soldering process
5. Smoothly surface, good endurance, applicable for Teflon spray painting
6. Avoid gold finger contamination by human contact
7. Protect bottom side SMT components during the wave soldering process
8. Prevent the deformation of the baseboard during the wave soldering process
9. Standardized the width of the production lines, eliminate the width adjustment of the production line
10. Prevent baseboard being contaminated by the overflow of tin
Sample Supply
Sample sheet / rod supply to test quality free of charge , Fast delivery by FEDEX ,DHL ,TNT or EMS .
FAQ
1.How can I get a sample?
Normally small samples (sizes less than 100*100mm) can be sent free of charge .Freight collect .
2. MOQ can be 50KGS or 100kgs ?
Yes, You can place your small order . Pls kindly tell us your ordering weight or pieces, we would quote for you immediately .
Because the unit price cost and freight cost of small order would be higher than MOQ'S .
Pls also consider our MOQ ,the cost can be reduced .
3. Can we order a large quantities with a discount price ?
Yes, you will be quoted a better price if qty is large . The larger the volume is, the more discount you can enjoy.

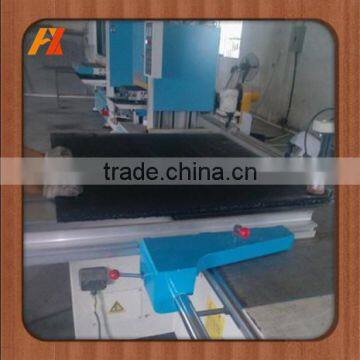

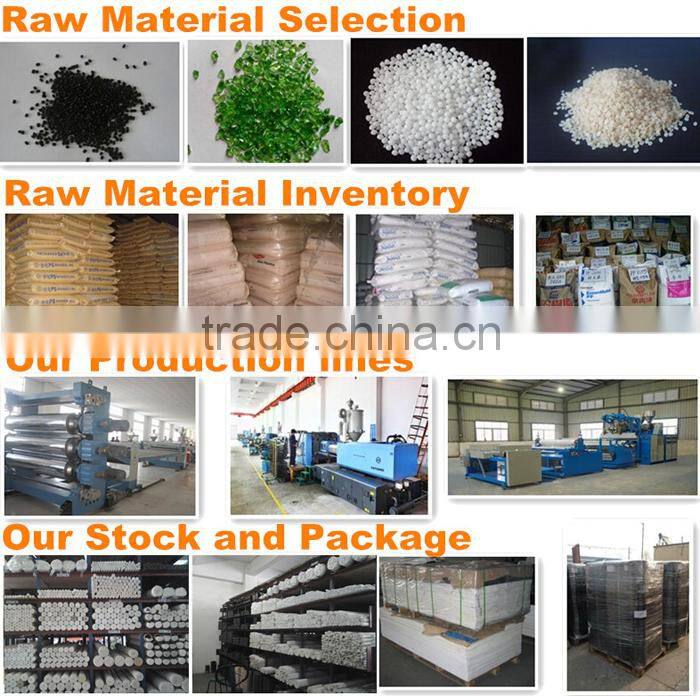

Production process
