Help CenterManual Technology Cctv Lens Focal Length 16mm c Mount Zoom Lens ir Filter 5megapixel Manual Iris Manual Focus Cctv Lens
Related Products
-
Cctv Security System Company 25mm Fixed Aperture c Mount Cmos Sensor Cctv Camera LensUS$ 60 - 100MOQ: 1 Piece -
Image Sensors Lens 8 Megapixel Lens 20mm c Mount Night Vision Optical Sight Camera Lens for CctvUS$ 89 - 100MOQ: 1 Piece
-
Cctv Camera Dual Lens!!machine Vision Camera Lens 25mm F1.6 1inch Ccd Cmos Sensor 8mp Water Resistance Cctv LensUS$ 60 - 100MOQ: 1 Piece
-
Megapixel Waterproof Thermal Camera Lens Wholesale Price 16mm c Mount Ccd Cmos Sensor High Performance ir Cctv Camera LensUS$ 40 - 100MOQ: 1 Piece
-
NEX Mount Cctv Camera ir Filter Glass Lens 35mm Manual Focus Lenses Chinese 8megapixel Cctv LensUS$ 90 - 110MOQ: 1 Piece
our company will be guaranty that all of lens elements are with Multi-layer broadband AR coating which can correct the aberration and improve the ability of the light transmisson,
Parameter of Lens | ||||||||
Image Format |
2/3” |
|||||||
Focal Length |
16mm |
|||||||
Aperture(F-Stop) |
2.0 |
|||||||
|
Operation
|
Iris |
Manual |
||||||
Focus |
Manual |
|||||||
Zoom |
/ |
|||||||
|
Angle of View (°)
|
D |
2/3" Type |
33.7° |
1/1.8" Type |
30.1° |
1/2" Type |
28° |
|
H |
30.7° |
23.4° |
22.6° |
|||||
V |
23.3° |
18.5° |
17.1° |
|||||
Size |
Φ29 x 33.53mm |
|||||||
Back Focal Length |
16.4 mm |
|||||||
Flange Back Length |
17.526mm |
|||||||
Mount |
C |
|||||||
M.O.D |
0.3m |
|||||||
Filter mount |
M27X0.5mm |
|||||||
|
Distortion
|
2/3" Type |
0.09%(y=5.5) |
||||||
|
1/1.8" Type
|
-0.06%(y=4.32) |
|||||||
|
1/2" Type
|
-0.07%(y=4.0) |
|||||||
Weight |
53g |
|||||||
Operating temperature |
-20°C~+60°C |
|||||||
1.Reply your enquiry in 24 working hours.
2.Experienced staffs answer all your questions in professional and fluent English.
3.Customized design is available.OEM are welcome.
4.Special discount and protection of sales area provided to your distributor.
5.Do the best quality,good image,cheap price wholesale cctv camera or ip camera lenses in China.

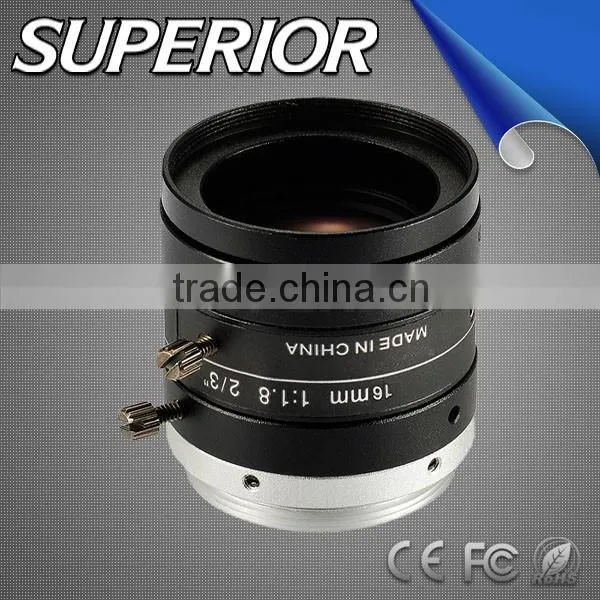

Product image:
1PC packing in blister bag and 100PC packing in Carton or do as your requirements
we hope you would have a chance to testing our samples if the price is acceptable. Samples are available in stock and can be shipped within 3days
Fuzhou Superior Electronic and Technology Co., Ltd. is a professional manufacturer and exporter of comprehensive CCTV security equipments. Since establised in 2005, we set up a company with over 500 employees, possessed mechanical, optical and assembly. We export our products to more than 30 countries, mainly in Asia, Europe, America and Middel-East ect. .
Certificate:
We are looking forward to cooperation with you!
