2015 Hot High Quality Mega Pixels F2.8 180 Degree 1/2.3 Cctv Fisheye M12 Lens Lens ir Cut Filter 1.5mm
2015 hot high quality Mega Pixels f2.8 180 degree 1/2.3 cctv fisheye m12 lens lens ir cut filter 1.5mm
What is the introduction of our m12 lens lens ir cut filter?
1. New Design, Hot sale
2. 10 Megapixel High Definition
3. Focal Length 1.5mm
4. Super Wide Angle View
5. Board Fisheye Lens
What is the parameter of our m12 lens lens ir cut filter?

Image Format
1/2.3 " (Ø4.3mm)
Focal Length
1.5mm
Aperture(F/No)
F2.8
Mount
M12*0.5 (S-Mount)
Angle of View (°)
D X H X V (°)
1/2.3"
D
180 °
H
180°
V
180°
Optical Distortion (TV)
-99.9%
M.O.D.
0.1m(from front vertex)
Effective Aperture
Front
Ø18mm
Rear
Ø4.4mm
Back Focal Length
4.15mm(in air)
Relative Illumination
76%
Max Chief Ray Angle
9.2°
Operation
Iris
Fixed
Focus
/
Zoom
/
Lens Construction
8G + 6 + 1 IR cut filter
IR correction
Yes
Dimension
Ø 24 × 22.3mm
Weight
Approx. 13g
Operating temperature
-20 ℃ ~ +60 ℃

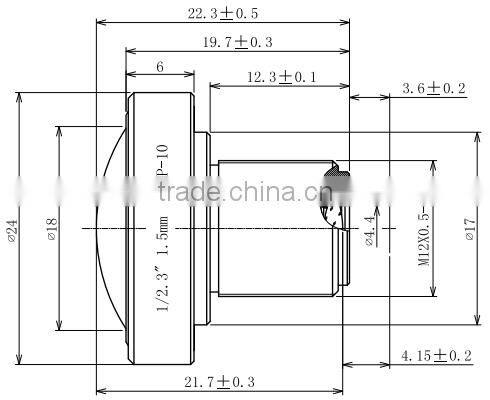

[DIMENSIONS]
Size tolerance (mm)
0-10±0.05
10-30±0.10
30-120±0.20
Angle tolerance
±2°
What is the specifications of our m12 lens lens ir cut filter?
