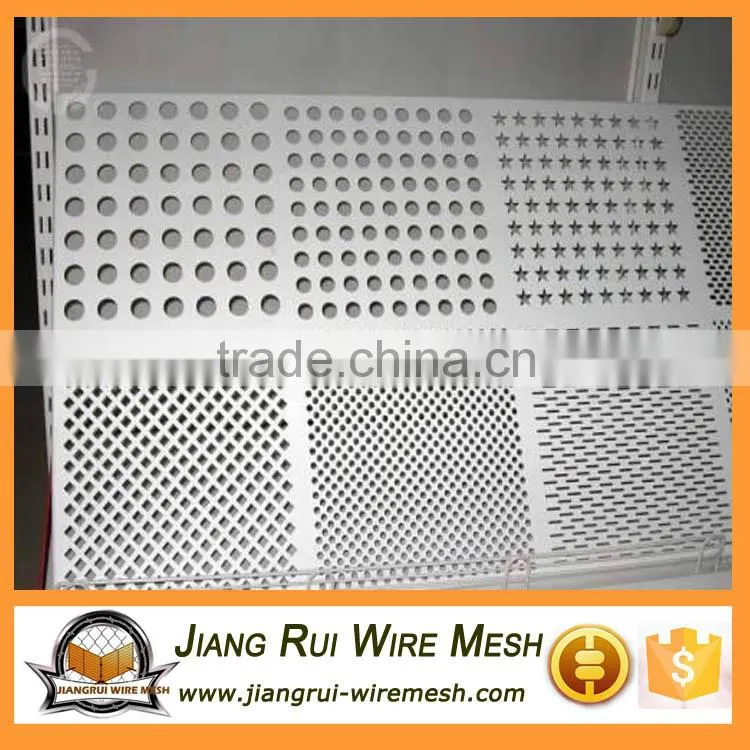

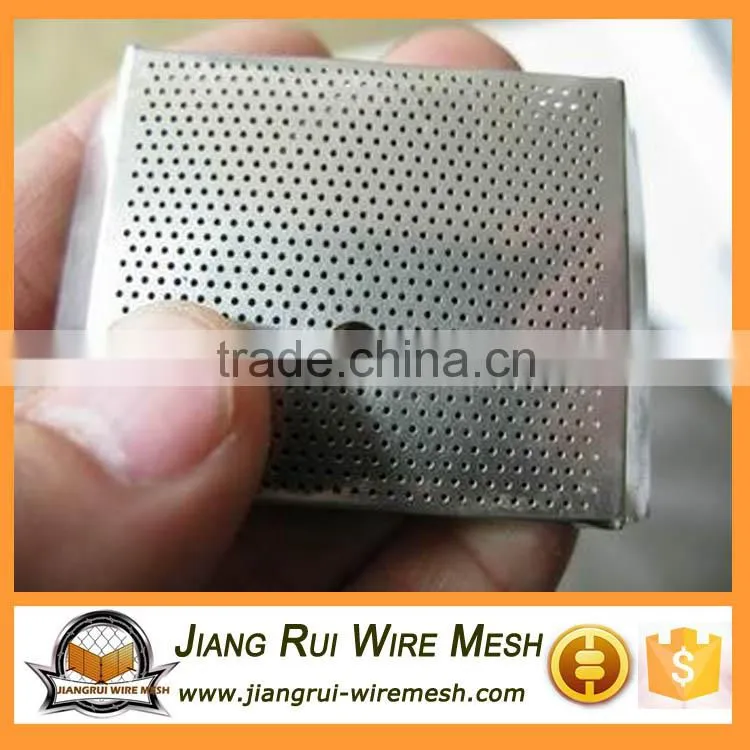

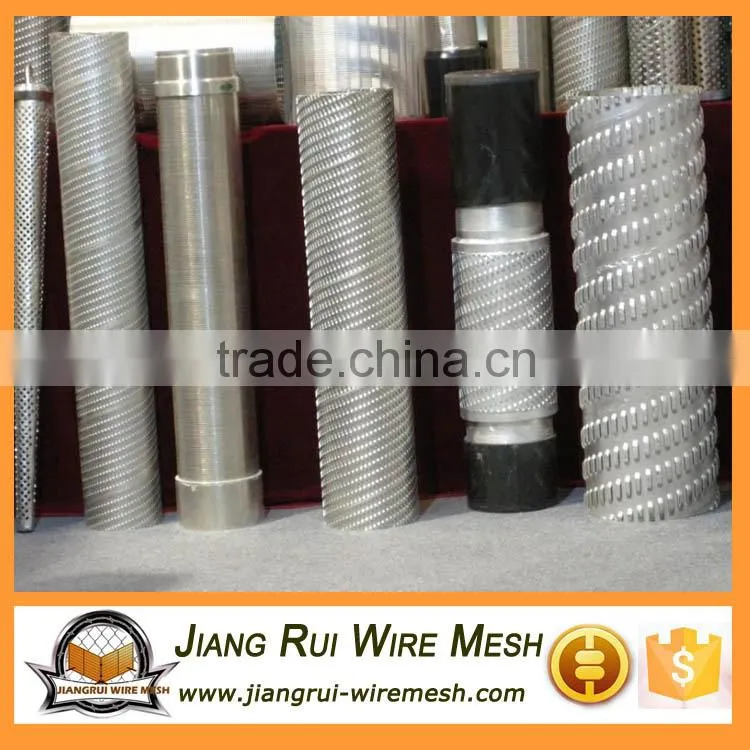

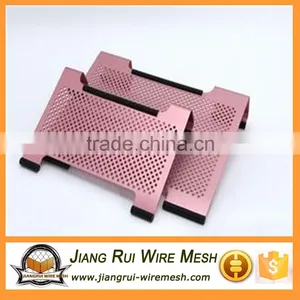

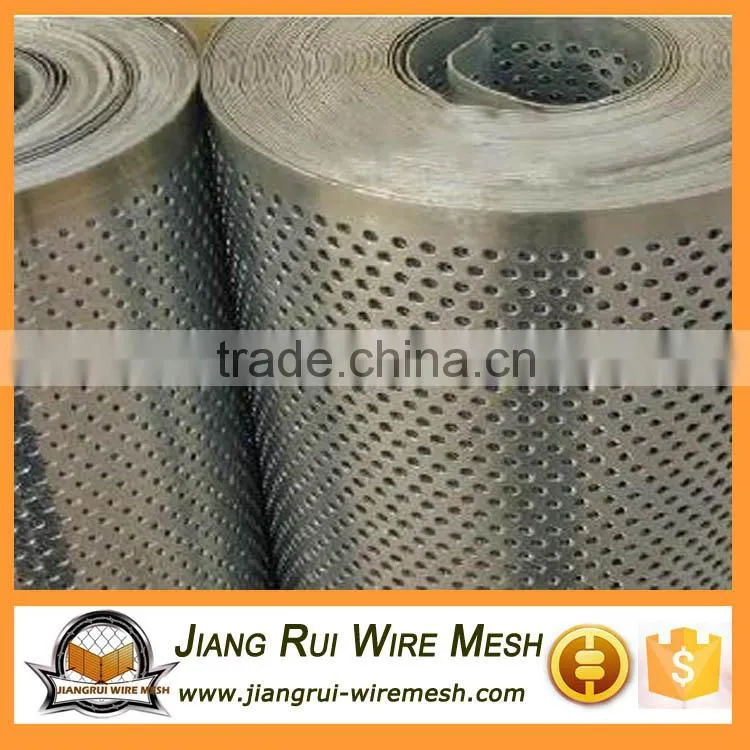

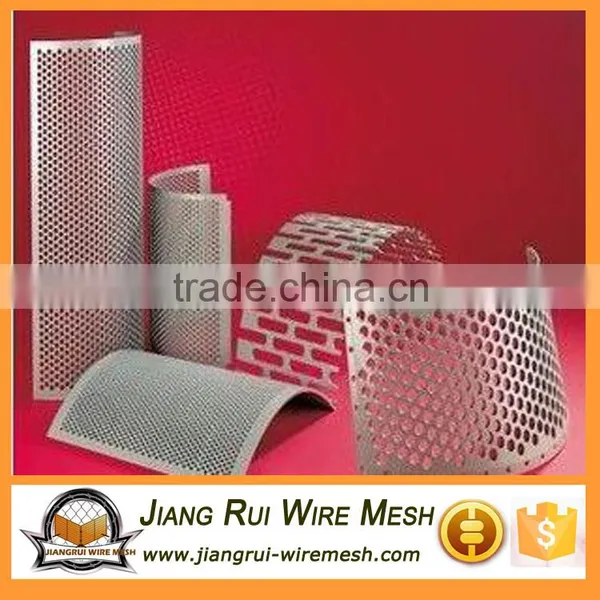

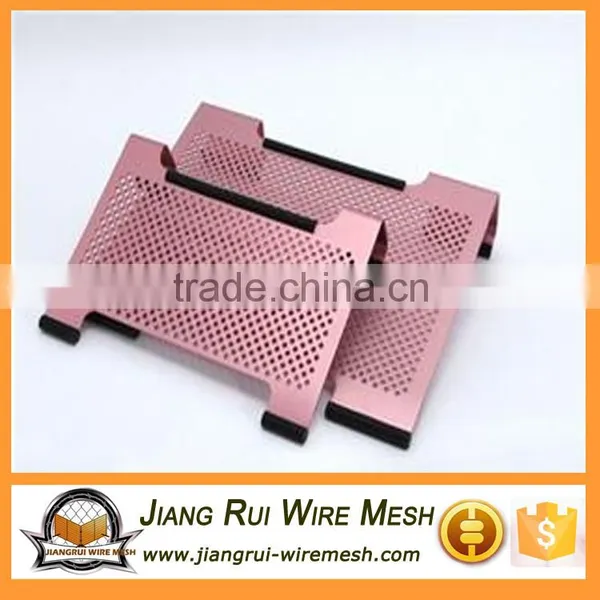

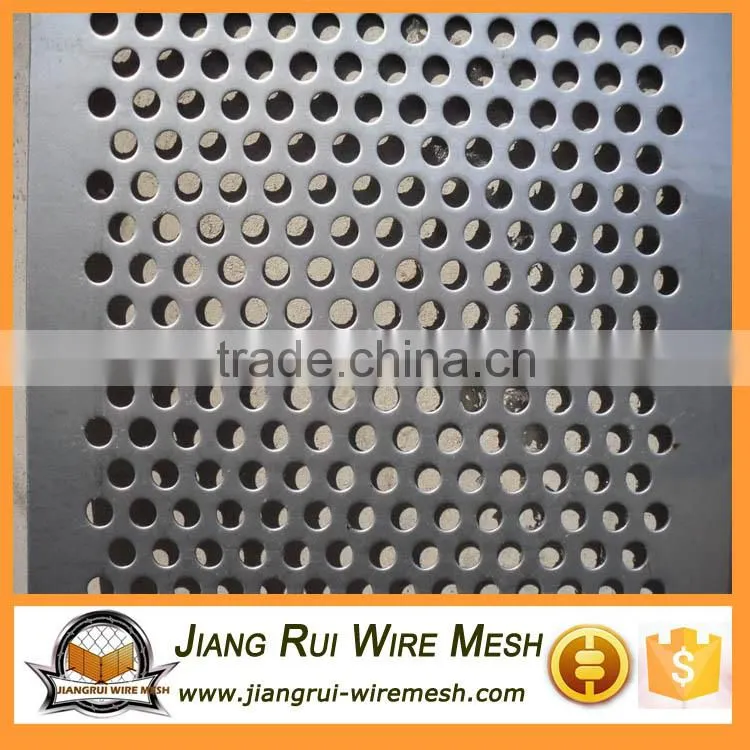

Stainless Steel Perforated sheet/net/plate/punched metal screen wire mesh
Detailed Product Description
Stainless Steel Perforated Metal-SUS304 316 ,Decorative applications
Quick Detail:
Name |
Products Nickname |
Stainless Steel Perforated Sheet |
Perforated Metal |
Material |
302,304,316, & Steel |
1. Description
Stainless Steel Perforated Sheet is made of high quality stainless steel 304,316 after being perforated on the digital control perforated machines.
Perforated mesh has good strength-to-weight ratio, wide range of open area percentages, accurate hole size, available in corrosion resistant materials, available in lightweight material and suitable for decorative applications.
Materials Available:
Stainless Steel
Plain Steel
Galvanized Steel
Aluminum
Uses:
Stainless steel Perforated Mesh finds popular applications in making of oil filters, sound isolation sheets, decorative sheets for stairs, environmental tables and chairs, sifting in grains, feed and mines. Perforated metal mesh is also used in making of kitchenware such as fruit basket, food cover, etc.
2. Specification
Stainless Steel Perforated Metal-SS304
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.033" | 0.84mm | 0.055" | 0.0165-0.0198" | 0.40-0.50mm | 28.00% |
| 0.045" | 1.14mm | 0.066" | 0.0165-0.0198" | 0.40-0.50mm | 37.00% |
| 1/16" | 1.59mm | 3/32" | 0.026-0.053" | 0.66-1.35mm | 41.00% |
| 1/16" | 1.59mm | 1/8" | 0.046-0.053" | 1.17-1.36mm | 23.00% |
| 3/32" | 2.38mm | 9/64" | 0.054-0.065" | 1.37-1.65mm | 40.30% |
| 3/32" | 2.38mm | 5/32" | 0.026-0.079" | 0.66-2.00mm | 33.00% |
| 3/32" | 2.38mm | 1/4" | 0.033-0.053'' | 0.84-1.35mm | 12.50% |
| 1/8" | 3.17mm | 3/16" | 0.026-0.129'' | 0.80-2.89mm | 40.00% |
| 1/8" | 3.17mm | 7/32" | 0.026-0.039'' | 0.66-0.99mm | 29.60% |
| 5/32" | 3.97mm | 3/16" | 0.026-0.065'' | 0.66-1.65mm | 63.00% |
| 3/16" | 4.76mm | 1/4" | 0.026-0.079'' | 0.66-2.00mm | 50.00% |
| 3/16" | 4.76mm | 5/16" | 0.029'', 0.059'' | 0.73mm, 1.50mm | 32.00% |
| 1/4" | 6.35mm | 5/16" | 0.026-0.079'' | 0.66-2.00mm | 58.00% |
| 1/4" | 6.35mm | 3/8" | 0.012'', 0.026-0.065'' | 0.30mm, 0.66-1.65mm | 40.00% |
| 1/2" | 12.70mm | 11/16" | 0.059'', 0.121'' | 1.50mm, 3.00mm; | 48.00% |
Stainless Steel Perforated Metal-SS316
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.033" | 0.84mm | 0.055" | 0.016-0.020'' | 0.41-0.50mm | 28.00% |
| 0.045" | 1.14mm | 0.066" | 0.023-0.025'' | 0.58-0.64mm | 37.00% |
| 1/8" | 3.17mm | 3/16" | 0.024'', 0.049'', 0.121'' | 0.61mm, 1.24mm, 3.07mm | 40.00% |
| 3/16" | 4.76mm | 1/4" | 0.026-0.054'' | 0.66-1.37mm | 50.00% |
| 3/16" | 4.76mm | 5/16" | 0.098-0.113'' | 2.49-2.87mm | 33.00% |
| 1/4" | 6.35mm | 3/8" | 0.114-0.129'' | 2.89-3.28mm | 40.00% |
Product show
our company:
Hebei Anping Jiang Rui Wire Mesh Products Co., Ltd. Is In Anping County,The Home Town of Wire Mesh In China. It covers 3000 square meter, register capital is one million RMB. It has become a big comprehensive wire and wire mesh company which is engaged in production, sales, research and development.
We have a professional production line of wire mesh fences including spot welding machine,single spot welding machine, auto steel wire mesh welding and shaping machine, bending machine for big wire mesh panels and matching PVC coating equipment.
Our major products include expressway wire mesh fences, safety wire mesh for railway, airport, sea port,constructions and aquaculture; iron decorative wire mesh fences; wire mesh fencing; barbed wire and razor barbed wire for safety fencing, welded wire mesh in piece and PVC coated welded wire mesh in rolls. Our products offer good corrosion-resistance, anti - aging property, acid and alkali resistance, no color fading, smooth and neat surface and comfortable touch.
Custom Design:
If our size isn't suitable for you we can make it as your requirement.
package and loading:
We could help you arrange the shipping and any knid of package.
Advise:
We could give advise based on your purpose and give you the best proposal like different
user and wholesaler
all receipts
We will express all the needed receipts to you when it was ready
Are you a manufacture?
of course we are and welcom to visit our factory.
How many methods for surface treatment?
galvanizing+pvc coated+powder coated
could you supply the sample?
Be happy to do that.
How to assemble?
we will teach you how to assemble by vedio.
If any interest in Perforated wire mesh
,any questions feel free to contact me.I will give you the best proposal.
