2015 Hot Sale Low Price pre-insulated ring terminals

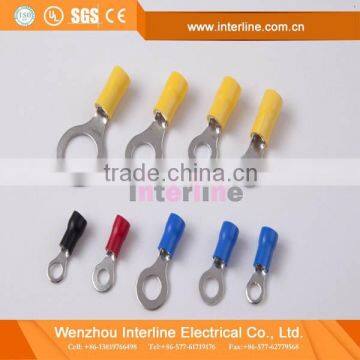

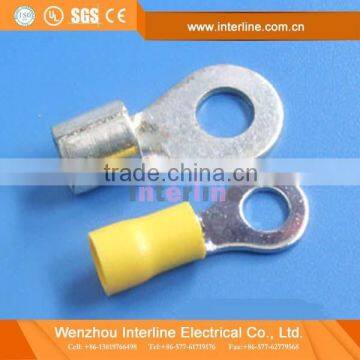

Product Pictures of pre-insulated ring terminals
Product Description of pre-insulated ring terminals
Type |
Ring Terminal, RV series, TO-JTK Type (Crimp Terminal) |
Material |
Copper |
Plating |
Tin |
Thickness |
Thickness:0.7mm,0.8mm,1.0mm |
Insulation |
PVC, Vinyl |
Color |
Red, Yellow, Black,Grey |
Working Temp |
-40 to +105°C |
Cable Range |
A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 14-12(2.5-4mm²), 12-10(4-6mm²) |
MOQ |
Small orders accepted |
Payment Term |
A.L/C,T/T (Bank Transfer, Wire Transfer) |
B.Western Union | |
C.Paypal (For samples fee & Courier cost) | |
Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc | |
Delivery Time |
A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport | |
C.By Sea: 20-25 Working days at appointed port | |
Supply Ability |
2 x 20 feet containers per week |
Packaging Details |
A.Common Packing:100pcs + polybag + label + inner box+ export carton |
B.Customized Packing:OEM Label,Inner Box,Blister,etc | |
HS Code |
8536900000 |
Origin Country |
Zhejiang, China |
Test Report |
REACH, ROHS. |
Diagrammatic Drawing of pre-insulated ring terminals
Data sheet of pre-insulated ring terminals
Lead section: 0.5-1.5mm2(22-16AWG) Max current: 9A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV1.25-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red |
| RV1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-6 | 1-4 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-8 | 5-16 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-10 | 3-8 | 6.5mm | 12 | 21.2 | 11 |
Lead section: 1.5-2.5mm2(16-14AWG) Max current: 27A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
| RV2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | |||
| RV2-3.5 | #6 | 3.7mm | 6.6 | 21 | 7 | |||
| RV2-3.5 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-4 | #8 | 4.3mm | 6.6 | 21 | 7 | |||
| RV2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1-4 | 6.5mm | 12 | 27.6 | 11 | |||
| RV2-8 | 5-16 | 8.4mm | 12 | 27.6 | 11 | |||
| RV2-8 | 3-8 | 10.5mm | 13.6 | 30.2 | 13.9 |
Lead section: 2.5-4mm2(14-12AWG) Max current: 37A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV3.5-4 | #8 | 4.3mm | 8 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RV3.5-5 | #10 | 5.3mm | 8 | 24.6 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3mm | 12 | 27.9 | 7.7 | |||
| RV3.5-6 | 1-4 | 6.5mm | 12 | 27.9 | 7.7 |
Lead section: 4-6mm2(12-10AWG) Max current: 48A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV5.5-3.5 | #6 | 3.7mm | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow |
| RV5.5-4 | #8 | 4.3mm | 7.2 | 21.5 | 5.9 | |||
| RV5.5-4 | #8 | 4.3mm | 9.5 | 25.5 | 8.3 | |||
| RV5.5-5 | #10 | 5.3mm | 9.5 | 25.5 | 8.3 | |||
| RV5.5-6 | 1-4 | 6.5mm | 12 | 31.5 | 13 | |||
| RV5.5-8 | 5-16 | 8.4mm | 15 | 33.7 | 13 | |||
| RV5.5-10 | 3-8 | 10.5mm | 15 | 33.7 | 13.7 | |||
| RV5.5-12 | 1-2 | 13.0mm | 19.2 | 38.1 | 16 |
More Products for You to Choose
About us
|
More than 10 years of export experience for cable & wire accessories. Main products: cable ties (nylon & stainless steel), cable glands, cable clips, terminals and terminal blocks, cable lugs, flexible conduit & connectors, wiring duct, other wiring accessories, Certificates: ISO9001 (SGS), BSCI, TUV, BV, VDE, UL, CE, IP68, RoHS and REACH We cordially welcome customers from all over the world to contact us and develop our markets together. We guarantee superior quality, competitive prices, and best after-sale services. |
Why Choose Us
♦ Certifications
Package of pre-insulated ring terminals
| A. Common Packing: 100Pcs + PolyBag + Label + Inner Box+Export Carton |
| B. Customized Packing: OEM Label, Inner Box, Blister, etc. |
Delivery of pre-insulated ring terminals
| A.By Courier: 4-7 Working days by special offer |
| B.By Air: 7 Working days at appointed airport |
| C.By Sea: 20-25 Working days at appointed port |
