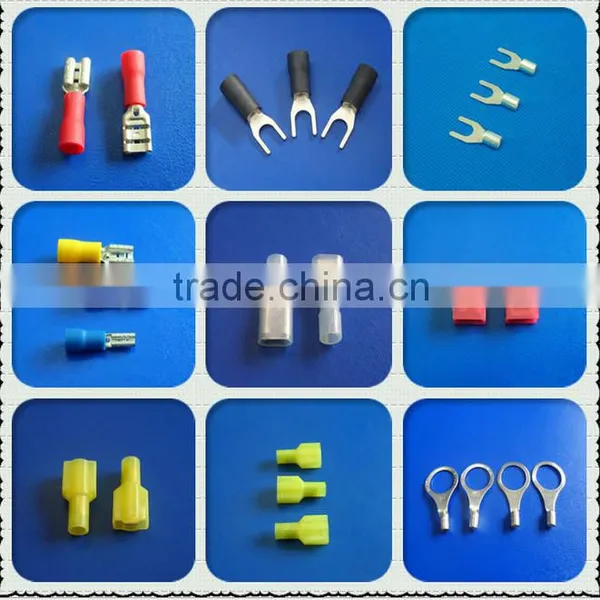

High Quality 100 Pack Female Insulated Terminal

Name: High Quality 100 Pack Female Insulated Terminal
Brand: Interline & OEM
SKU: 132136649

US$ 0.001 - 0.0078 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Interline & OEM

Model Number:

FDD1.25-110

Wenzhou Electroline Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo & Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Interline & OEM

Model Number FDD1.25-110

Type Crimp Terminal

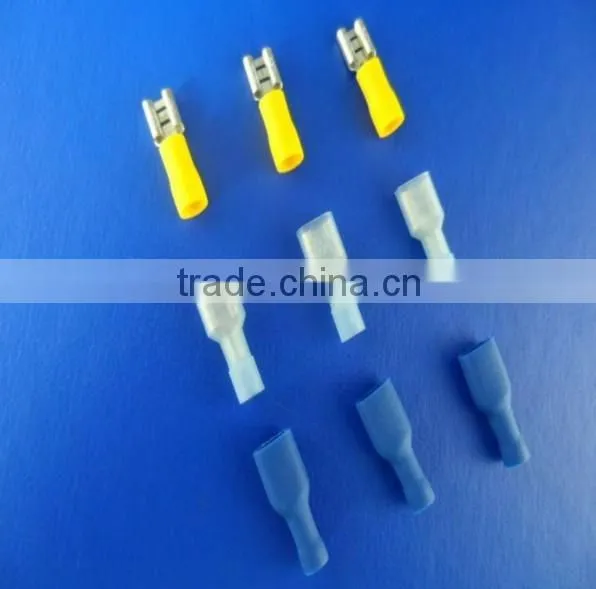

FDD Female Insulated Terminals

Material	brass
Plating	Tin
Thickness	Thickness:0.4mm
Insulation	PVC, Vinyl
Color	Red, Yellow, Black,Grey
Working Temp	-40 to +105°C
Cable Range	A.W.G.:22-16 (0.5-1.5mm²),16-14(1.5-2.5mm²), 12-10(4-6mm²)
MOQ	Small orders accepted
Payment Term	A.L/C,T/T (Bank Transfer, Wire Transfer)
	B.Western Union
	C.Paypal (For samples fee & Courier cost)
	Terms of Payment: FOB Shanghai / Ningbo;CIF;CNF;etc
Delivery Time	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
Supply Ability	2 x 20 feet containers per week
Packaging Details	A.Common Packing:100pcs + polybag + label + inner box+ export carton
Packaging Details	B.Customized Packing:OEM Label,Inner Box,Blister,etc
HS Code	8536900000
Origin Country	Zhejiang, China
Test Report	REACH, ROHS.

Data Sheet of fdd female insulated terminals:

cable size:0.5~1.5mm2(A.W.G 22~16) Imax=10A material:brass pvc
Item No	Name Tab(mm)	thickness	Dimension(mm)					color
Item No	Name Tab(mm)	thickness	B	Dφ	dφ	L	H	color
FDD 1.25-110(5)	0.5×2.8	0.3	3.8	3.8	1.7	19	10	red
FDD 1.25-110(8)	0.8×2.8	0.3	3.8	3.8	1.7	19	10
FDD 1.25-187(5)	0.5×4.75	0.35	5.6	3.8	1.7	19	10
FDD 1.25-187(8)	0.8×4.75	0.35	5.6	3.8	1.7	19	10
FDD 1.25-205	0.5×5.2	0.35	6.5	3.8	1.7	20	10
FDD 1.25-250	0.8×6.35	0.4	7.4	3.8	1.7	21	10
cable size:1.5~2.5mm2(A.W.G 16~14) Imax=15A material:brass pvc
Item No	Name Tab(mm)	Thickness of material	Dimension(mm)					Color
Item No	Name Tab(mm)	Thickness of material	B	Dφ	dφ	L	H	Color
FDD 2-110(5)	0.5×2.8	0.3	3.8	4.3	2.3	19	10	blue
FDD 2-110(8)	0.8×2.8	0.3	3.8	4.3	2.3	19	10
FDD 2-187(5)	0.5×4.75	0.35	5.6	4.3	2.3	19	10
FDD 2-187(8)	0.8×4.75	0.35	5.6	4.3	2.3	19	10
FDD 2-205	0.5×5.2	0.35	6.5	4.3	2.3	20	10
FDD 2-250	0.8×6.35	0.4	7.4	4.3	2.3	21	10
FDD 2-312	0.8×8.0	0.4	9	4.3	2.3	23	10
cable size :4~6mm2(A.W.G 12~10) Imax=24A material:brass pvc
Item No	Name Tab(mm)	Thickness of material	Dimension(mm)					Color
Item No	Name Tab(mm)	Thickness of material	B	Dφ	dφ	L	H	Color
FDD 5.5-250	0.8×6.35	0.4	7.4	5.7	3.4	25	13	yellow
FDD 5.5-375	1.2×9.4	0.5	10.9	5.7	3.4	29.6	13	yellow
