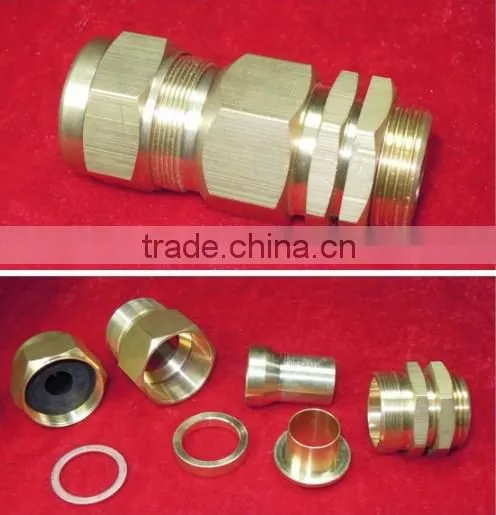

EX Cable Gland
US$ 5 - 8
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
ETL or Empty Brand
Model Number:
1" & 1-1/2"
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo & Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Junction Box,IP66,Explosion-Proof,Anti-Corrosive,Dust-ProofUS$ 5 - 8MOQ: 50 Pieces -
Explosion-Proof Cable GlandUS$ 5 - 8MOQ: 50 Pieces
-
Electrical Junction Box,255x200x80MMUS$ 0.16 - 2.38MOQ: 50 Pieces
-
EX Junction BoxUS$ 5 - 8MOQ: 50 Pieces
-
EX Junction Box With Push ButtonUS$ 5 - 8MOQ: 50 Pieces
Place of Origin
Zhejiang, China
Brand Name
ETL or Empty Brand
Model Number
1" & 1-1/2"
Protection Level
IP66
Type
Other, Explosion-Proof Cable Gland
Explosion-Proof Cable Gland/Fitting/Connector:
Suitable Work Enviorment/Application:
1,Can be used in Zone 1 and Zone 2 dangerous places.
2,Can be used in ⅡA,ⅡB,ⅡC group explosive atmosphere.
Materials & Finishes:
The cable gland is manufactured in Brass (standard), Nickel Plated Brass.
Brass NPT entries are nickel plated as standard.
Features:
- Provides a cable retention seal onto the cables outer sheath.
- When used in increased safety applications, this cable gland may be used with braided cable where the braid and the cables outer sheath pass into the enclosure. The braid must be suitably terminated into the enclosure.
- Provides female running coupler for cable gland or conduit entry.
Main Technical Parameters:
| Protection Category | Explosion-Proof Marker | Corrosion-Proof Grade |
| IP65 | Exe Ⅱ T6 | WF2 |
Outline Drawing:
| Product Name | Thread Specification | Max. Armoured Thickness | Max. Dia. | External Layer Dia. | Internal Layer Dia. | L | L1 | Material |
| EX Cable Gland | G-1/2" | 1.25 | 28 | 8-12 | 6-10 | 83 | 16 | Brass |
| G-3/4" | 1.25 | 35 | 11-17 | 10-15 | 82 | 16 | ||
| G-1" | 1.6 | 45 | 16-25 | 15-22 | 87 | 18 | ||
| G-1 1/4" | 2 | 52 | 24-30 | 22-28 | 95 | 18 | ||
| G -1 1/2" | 2 | 58 | 30-38 | 27-32 | 101 | 18 | ||
| G-2" | 2.5 | 71 | 36-48 | 30-40 | 105 | 18 | ||
| G-2 1/2" | 2.5 | 88 | 46-63 | 38-58 | 123 | 24 | ||
| G-3' | 3.2 | 102 | 61-76 | 55-70 | 125 | 28 | ||
| G-4" | 3.2 | 125 | 74-98 | 68-92 | 146 | 30 |
s
,
