Flexible Corrugated Conduit,Made In China,ISO9001 Certificate

FOB Price

USD $0.003 - $0.83 / Meter

100 Meters(Min.Order)

Supply Ability 50000 Meter / Meters per Month
Port Ningbo & Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	ETL or Empty Brand
Model Number	AD18.5MM AD15.8MM AD21MM	Material	PE
Specification	Dia18.5MM	Length	500Meter/Roll
Thickness	1MM

Product Description

Description of Plastic Flexible Couduit/Pipe:

1.Material: Nylon/PP/PE/PVC

2.Temperature Range: PA(nylon):-40°C~+125°C,140 °C in short time

PP: -30°C~+110°C,130 °C in short time

PE: -30°C~+100°C,120 °C in short time

PVC: -20°C~+80°C

3.Color: Black(Most popular),Grey,other color is availabe according to client's requirement.

4.Feature: a) good flexibility and softness

b)Bellows inside and outside

c)Luster in surface and Insulation

d)abrasion resistance, chemical resistance

e)Unslit and Slit configurations for easy installation.

5.Application: Ship,Mechanical operation,Automated production line, Mass Transit Application, Robot Application, Wood Machinery and so on.

6.Certification: CE ROHS PAHS

7.Flammability: UL-94V0

8.Packing:10m/roll &20/roll &25m/roll &50m/roll &100m/roll &200m/roll & As your requirement

Data Sheet of Plastic Flexible Couduit/Pipe:

Item No.	Specification		Inner diameter × Outer diameter	Curved Radius	Packaging Unit
Item No.	MM	Inch	MM	(mm)	Meter/Roll
PE-10.0	AD10.0	1/4"	6.5×10.0	16	100
PE-11.6	AD11.6		8.0×11.6	16	100
PE-13.0	AD13.0	5/16"	10.0×13.0	20	100
PE-15.8	AD15.8	3/8"	12.0×15.8	30	100
PE-18.5	AD18.5		14.3×18.5	40	100
PE-21.2	AD21.2	1/2"	17.0×21.2	45	100
PE-25.0	AD25.0		20.0×25.0	45	50
PE-28.5	AD28.5	3/4"	23.0×28.5	50	50
PE-34.5	AD34.5	1	29.0×34.5	60	50
PE-42.5	AD42.5	1 1/4"	36.0×42.5	70	50
PE-54.5	AD54.5	2"	48.0×54.5	90	25
PE-74.0	AD74.0	2 1/2"	63.0×74.0	130	10
PE-88.0	AD88.0	3"	76.0×88.0	170	10
PE-108.0	AD108.0	4"	94.0×108.0	225	10

Item No.	Specification		Inner diameter × Outer diameter	Curved Radius	Packaging Unit
Item No.	MM	Inch	MM	(mm)	Meter/Roll
PP-10.0	AD10.0	1/4"	6.5×10.0	16	100
PP-11.6	AD11.6		8.0×11.6	16	100
PP-13.0	AD13.0	5/16"	10.0×13.0	20	100
PP-15.8	AD15.8	3/8"	12.0×15.8	30	100
PP-18.5	AD18.5		14.3×18.5	40	100
PP-21.2	AD21.2	1/2"	17.0×21.2	45	100
PP-25.0	AD25.0		20.0×25.0	45	50
PP-28.5	AD28.5	3/4"	23.0×28.5	50	50
PP-34.5	AD34.5	1	29.0×34.5	60	50
PP-42.5	AD42.5	1 1/4"	36.0×42.5	70	50
PP-54.5	AD54.5	2"	48.0×54.5	90	25
PP-74.0	AD74.0	2 1/2"	63.0×74.0	130	10
PP-88.0	AD88.0	3"	76.0×88.0	170	10
PP-108.0	AD108.0	4"	94.0×108.0	225	10

Item No.	Specification		Inner diameter × Outer diameter	Curved Radius	Packaging Unit
Item No.	MM	Inch	MM	(mm)	Meter/Roll
PA-10.0	AD10.0	1/4"	6.5×10.0	16	100
PA-11.6	AD11.6		8.0×11.6	16	100
PA-13.0	AD13.0	5/16"	10.0×13.0	20	100
PA-15.8	AD15.8	3/8"	12.0×15.8	30	100
PA-18.5	AD18.5		14.3×18.5	40	100
PA-21.2	AD21.2	1/2"	17.0×21.2	45	100
PA-25.0	AD25.0		20.0×25.0	45	50
PA-28.5	AD28.5	3/4"	23.0×28.5	50	50
PA-34.5	AD34.5	1	29.0×34.5	60	50
PA-42.5	AD42.5	1 1/4"	36.0×42.5	70	50
PA-54.5	AD54.5	2"	48.0×54.5	90	25
PA-74.0	AD74.0	2 1/2"	63.0×74.0	130	10
PA-88.0	AD88.0	3"	76.0×88.0	170	10
PA-108.0	AD108.0	4"	94.0×108.0	225	10

Packing of Plastic Flexible Couduit/Pipe:

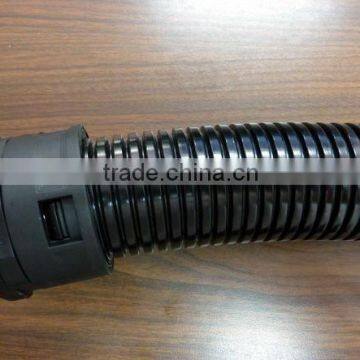

Matched Connector of Plastic Flexible Couduit/Pipe:
