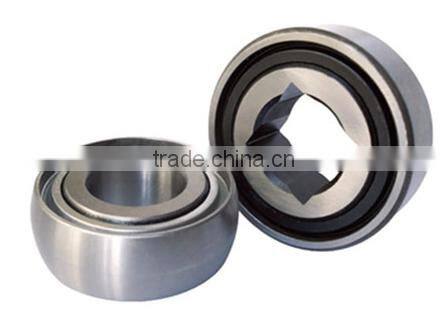

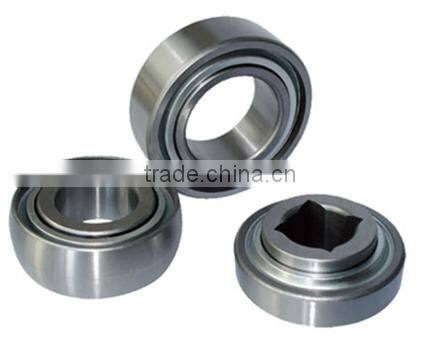

W208PPB10 Agricultural Machinery Insert Ball Bearing - Round, Square, or Hexagonal Bore

W208PPB10 Agricultural Machinery Insert Ball Bearing - Round, Square, or Hexagonal Bore thumbnail-1
W208PPB10 Agricultural Machinery Insert Ball Bearing - Round, Square, or Hexagonal Bore photo-1
US$ 5 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
IKC
Bore Size:
38.113,
Outside Diameter:
80,
Contact Supplier Request Quote Chat Now
Wuxi Ikc Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai shenzhen ningbo any
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name IKC
Bore Size 38.113,
Outside Diameter 80,
Model Number W208PPB10
Precision Rating P0 P2 P4 P5 P6
Seals Type Open
Number of Row Single Row
Place of Origin Germany
Product Description








Bearing

A major supplier to all OEM agricultural machinery manufacturers in North America.

BROAD APPLICATION COVERAGE

Agricultural machinery requires better seals for contaminated conditions, provisions for misalignment, and economical mountings for shafts and housings. IKC offers bearings for disc harrows, planters, mowers, rakes, all types of balers, tillage, seeding and forage harvester equipment, combines, cotton pickers/stripers, and other agricultural equipment like silo unloaders and grain elevators.

We also offer a complete line of insert ball bearings, shaft mounted with either tapered adapters or locking collar or set screws. Our proven seal designs include low torque shields to heavy-duty triple lip seals. Disc harrow bearings are also available with either round, square, or hexagonal bores. All bearings are available with or without re-lubrication holes.

A TRADITION OF AMERICAN-MADE QUALITY

As a trusted brand in agricultural products for nearly 20 years, IKC is committed to serving American farmers with American-made product manufactured in Macomb, Illinois. We have an ongoing commitment to developing and manufacturing the finest in ball and roller bearings, and we’ve been given the customer quality awards that attest to our reliability and quality.

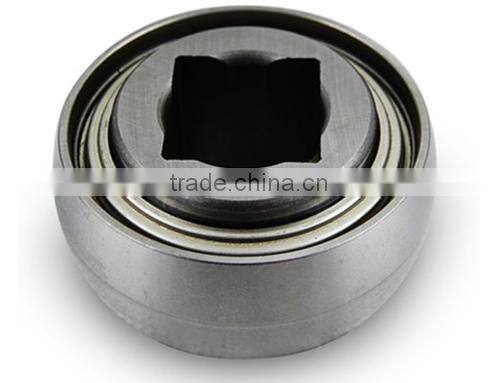

Square Bore
Part No. Type Shaft Size Outside
Diameter
D		 Out Ring
Width
Be		 Inner Ring
Width
Bi		 Load Ratings Wt.
Cr Cor
in. mm in. mm in. mm in. mm Ibf. Ibf. Ibs.
W 208 PP5 4 1 1/8 28.575 3.1496 80.000 0.7090 18.000 1.4380 36.525 7,340 3,650 1.50
W 208 PPB5 1 1 1/8 28.575 3.1496 80.000 0.7090 18.000 1.4380 36.525 7,340 3,650 1.47
W 208 PP6 4 1 25.400 3.1496 80.000 0.7090 18.000 1.4380 36.525 7,340 3,650 1.62
W 208 PPB6 1 1 25.400 3.1496 80.000 0.7090 18.000 1.4380 36.525 7,340 3,650 1.59
W 208 PP8 4 1 1/8 28.575 3.1496 80.000 1.1880 30.175 1.4380 36.525 7,340 3,650 1.66
W 208 PPB8 2 1 1/8 28.575 3.1496 80.000 1.1880 30.175 1.4380 36.525 7,340 3,650 1.66
W 208 PPB9 2 1 25.400 3.1496 80.000 1.1880 30.175 1.4380 36.525 7,340 3,650 1.74
W 208 PPB11 6 7/8 22.225 3.3760 85.750 1.1880 30.175 1.4380 36.525 7,340 3,650 2.05
W 208 PPB12 6 1 1/8 28.575 3.3760 85.750 1.1880 30.175 1.4380 36.525 7,340 3,650 1.62
W 208 PPB13 1 7/8 22.225 3.1496 80.000 0.7090 18.000 1.4380 36.525 7,340 3,650 1.62
W 209 PPB5 2 1 1/4 31.750 3.3465 85.000 1.1880 30.175 1.4380 36.525 7,350 4,150 1.75
W 209 PPB7 6 1 1/4 31.750 3.3760 85.750 1.1880 30.175 1.4380 36.525 7,350 4,150 1.80
W 210 PP4 5 1 1/8 28.575 3.5433 90.000 1.1880 30.175 1.1880 30.175 7,880 4,650 1.92
W 210 PPB4 3 1 1/8 28.575 3.5433 90.000 1.1880 30.175 1.1880 30.175 7,880 4,650 2.11
W 210 PPB6 2 1 1/8 28.575 3.5433 90.000 1.1880 30.175 1.4380 36.520 7,880 4,650 2.11
W 211 PP3 5 1 1/2 38.100 3.9370 100.000 1.3120 33.325 1.3120 33.325 9,740 5,850 2.79
W 211 PPB3 3 1 1/2 38.100 3.9370 100.000 1.3120 33.325 1.3120 33.325 9,740 5,850 2.66
W 211 PP5 4 1 1/2 38.100 4.0000 101.600 1.4380 36.525 1.7500 44.450 9,740 5,850 3.38
W 211 PPB6 6 1 1/2 38.100 4.0770 103.556 1.4380 36.525 1.7500 44.450 9,740 5,850 4.05
