Car Repair Equipment and Automatic Spot Welding Steel Dent Pulling Machine

car repair equipment and Automatic spot welding steel dent pulling machine

Professional production dent puller,vulcanizing machine,tire mount demout tool,engine hoist,auto heavy duty repairing tool torque wrench,pneumatic oil extractor,hydraulic tire impact wrench,hydraulic puller,Co2 welding machine etc.

Hydraulic tire impact wrench is the latest development of our company patented products.

Product name	spot welding machine
Model	YY-15000	YY-1600	YY-1800
Input voltage	2PH 220V	2PH 220V	2PH 220V
Frequency	50Hz	50Hz	50Hz
Floating voltage	10v	11v	12.5v
Second welding current	200-6900A	200-7900A	200-8500A
Instant output power	18KVA	19KVA	20KVA
Duty cycle	15%	15%	15%
Automatic working time	0.1-1s	0.1-1s	0.1-1s
Dimension	53*60*97cm	53*60*97cm	42*60*97cm
N.W	40KG	43KG	45KG

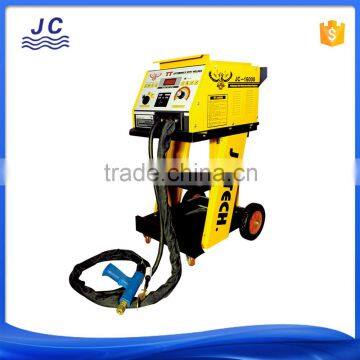

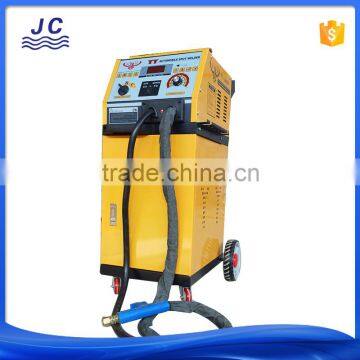

The spot welding machine features: easy maneuverability, simple operation and high output power. The welder can be used for a wide variety of applications, such

as dent pulling, carbon heating and shrinking, single-sided spot welding, stud bolt welding, sheet plate cutting and sheet metal welding. Using this versatile welder

in body repair work, panels will need to be replaced less frequently and repair jobs will be completed in a shorter space of time.

 2. Feature:

Microprocessor control system optimizes the welding parameters.

User friendly design, all you have to do is select the welding current corresponding to the workpiece thickness to achieve the best weld quality

Automatic mains voltage monitoring ,The welding gun testing function evaluates the usage status of the welder more comprehensively .

Overheating protection High precision time and power adjustment system

Complete with triangle washers for dent pulling

Various welding procedures are available such as shrinking, washer welding, dent pulling, spot welding, flattening, wavy wire welding, stud weldng, OT washer welding, triangle washer welding etc

Digital display

Large pulling hammer and waveform wire welding

With several welding currents to choose from

3. Super Configuration:

Microprocessor controls system optimizes the welding parameters, due to the adoption of advanced digital control technology and humanization design, all you have to do is select the welding current corresponding to the workpiece thicknes to achieve the best weld quality

Complete with triangle washers for dent pulling

High precision time adjustment system

The whole spot gun body is cast in polyamide

Sliding type pulling hammer

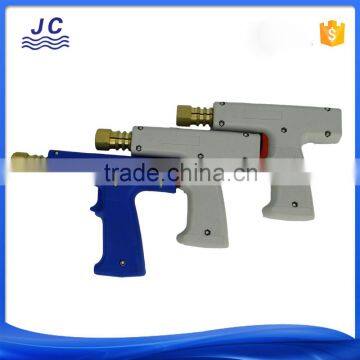

Euqipped with switchable spot gun and multi-functionsl puller

Stud welding is available

Adjustable welding current

Stepless current regulation

Complete with various of welding tools

Complete with pnematic vacuum cupule

4.More details for spot welding machine
