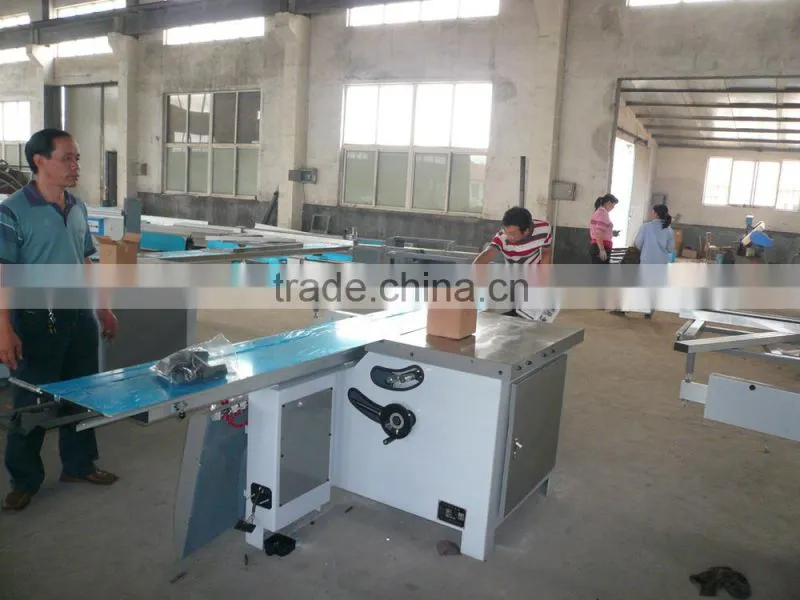

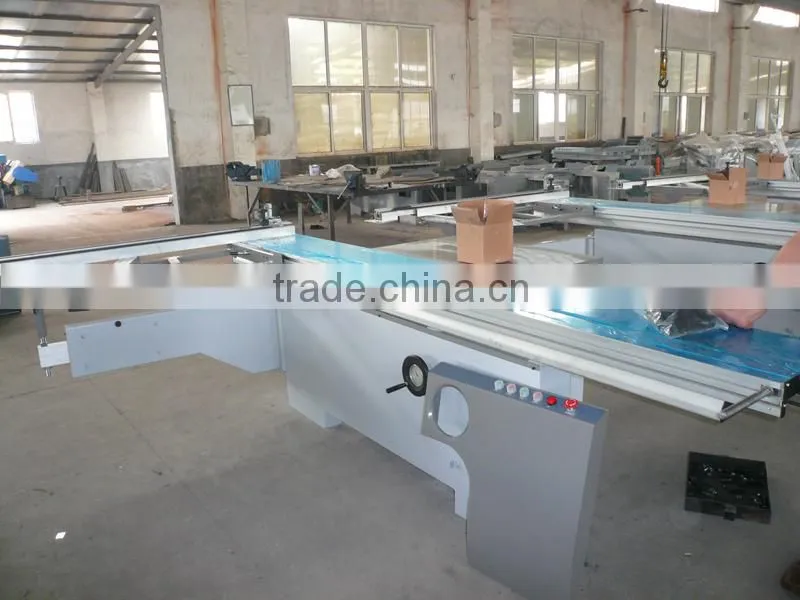

Sliding table saw
1.Sliding table saw with column guideway.
2.The sliding table is made from imported precision cylindrical guide, higher accuracy and longer life.
3.It is using spray outside, laser cutting and welding, so it with more stable and reliable performance.
parameters
Dimension of sliding table |
2800/ 3000/ 3200 x 360 mm |
Power of main saw spindle |
4 kw |
Rotary speed of main saw spindle |
4000-6000 r/min |
Diameter of main saw blade |
300 x 30 mm |
Power of grooving saw |
0.75 kw |
Rotary speed of grooving saw blade |
8000 r/min |
Diameter of grooving saw blade |
120 x 20 mm |
Max sawing thickness |
75 mm |
Slope degree of main saw and grooving saw |
45° |
1. We will send our engineer under your indications to your factory for installing, debugging and maintaining, you only need to afford the cost of the flights, and the engineer's accommodation.
2.If you are experienced in installing jobs, we will provide ongoing technical support for you.
3.Guarantee time for the main parts of the machine will be 12 months.
4.After the warranty, we can also supply the engineer service and the technical service, but you need to pay the salary for the engineer! and afford the cost of the replaced aparts yourself.
QINGDAO YUANPING WOOD MACHINERY CO.,LTD is the manufacture of plywood machine . Our machine have high quality and competitivfe price. We can guarantee good after sale service and we can provide oversea engineer to help you to install.
We can also make according to your requirment.
If you have any question please feel free to contact , I will be happy to serve you.
- For more details, please feel free to contact us!
- Thank you!
