Specifications
Backhoe loaderModel:WZ30-25
DEUTZ:WP4G95E221
CARRARO Synchronization shift,electric-hydraulic control
CARRARO braking axle

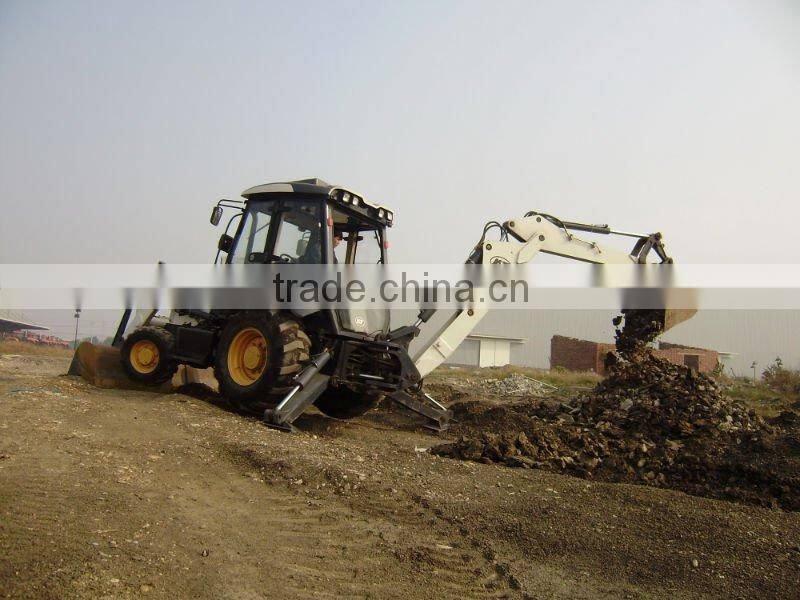

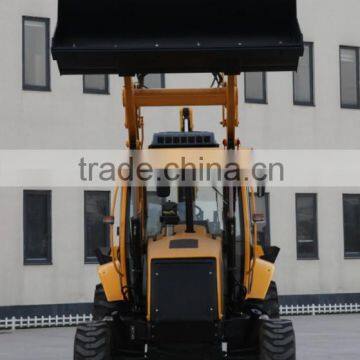

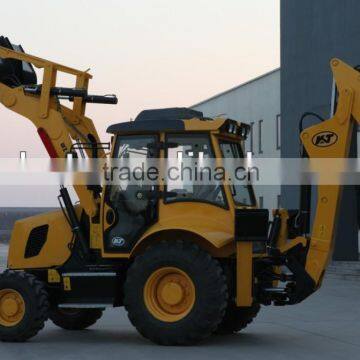

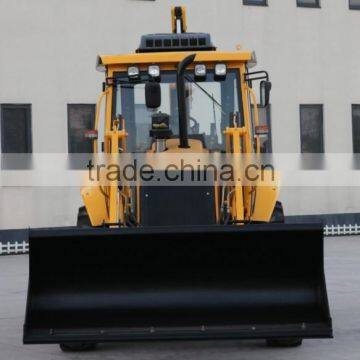

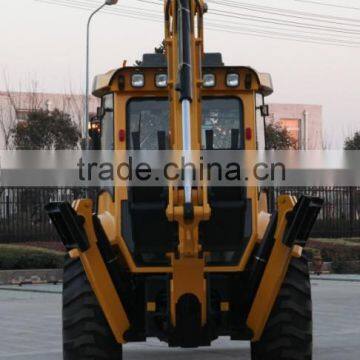

Backhoe Loader
Model: WZ30-25
DEUTZ TD226B
CARRARO synchronization shift, electric-hydraulic control
CARRARO braking axle
Main Technical Parameters:
Item | Unit | Parameter | |||
Backhoe bucket capacity | m3 | 0.3 | |||
Rated loading bucket capacity | m3 | 1 | |||
Rated Lifting Force | KN | 25 | |||
Engines rated power/rated speed | KW/r/min | 70/2200 | |||
Total operating weight | kg | 7400 | |||
Backhoe turning angle | Left | º | 90 | ||
Right | º | 90 | |||
Backhoe parameter | Max. digging radius | mm | 5150 | ||
Max. dump height | mm | 3738 | |||
Radius at the max. dump height | mm | 1084 | |||
Max. digging radius at ground level | mm | 5105 | |||
Digging buckets max. rotating angle | º | 180 | |||
Max. digging depth | mm | 4340 | |||
Max. digging force | KN | >50 | |||
Loading parameter | Max. dump height | mm | 2612 | ||
Dump reach at max. dump height | mm | 727 | |||
Bucket drawback angle | Transportation position | º | 43 | ||
Ground position | º | 34 | |||
Dump angle | º | 43.5 | |||
Digging depth | mm | 191 | |||
Max. breakout force | KN | >40 | |||
Max. grade ability | % | 16.7 | |||
Max. traction power | KN | 70 | |||
Gear and travel speed | Forward/Backward gear I | km/h | 5.9/5.9 | ||
Forward/Backward gear Ⅱ | 9.8/9.8 | ||||
Forward/Backward gear Ⅲ | 21.2/21.2 | ||||
Forward/Backward gear IV | 39.8/39.8 | ||||
Min. turning radius | mm | 3795 | |||
Total length | mm | 7077 | |||
Total height (Cab) | mm | 2700 | |||
Max. height for transportation | mm | 3424 | |||
Total Width | mm | 2350 | |||
Bucket width | mm | 2315 | |||
Loading Operation Parameter | |
Rated Bucket Capacity | 1.0m³ |
Max. Dumping Clearance | 2612 mm |
Max. Dump reach | 727 mm |
Dig depth | 191 mm |
Bucket upward angle at max. working height | 63° |
Drawback angle at ground pos. | 40° |
Max. breakout force | >40KN |
Rated Lifting Force | 25KN |
Rise Time | ≤5.5s |
Fall Time | ≤4.5s |
Tilting Time | ≤1.5s |
Excavating Operation Parameter | |
Rated Backhoe Bucket Capacity | 0.3 m³ |
Max. Digging Depth | 4340 mm |
Max. Digging Force | >50KN |
Max. Digging Radius | 5150 mm |
Max. Dump Height | 3738 mm |
Max. Outreach from mid. of Rear Axle | 6583 mm |
Max. Outreach at the max. dump height | 1084 mm |
Turning Angle | 180° |
