LD250/63 HDPE Pipe Butt Fusion Welding Machine

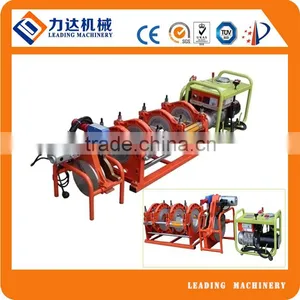

LD250/63 HDPE Pipe Butt Fusion Welding Machine thumbnail-1
LD250/63 HDPE Pipe Butt Fusion Welding Machine photo-1
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADING
Contact Supplier Request Quote Chat Now
Longkou Leading Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name LEADING
Model Number LD-250/63
Input Voltage 220v
Power 3.95
Dimensions 63-250mm
Usage Butt Welding, PE,PP, and PVDF pipe
Certification CE Approved
After-sales Service Provided Overseas third-party support available
Product Description

Butt fusion machine, Butt fusion welding machine,Butt welding machine, Manual butt fusion machine, PE pipe  butt fusion welding machine, HDPE pipe butt fusion welding machine.

Application

Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.



Features

Removable PTFE coated heating plate with separate temperature control system.

Electrical planning tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly;

Low starting pressure ensures reliable welding quality of small pipes;

Separate two-channel timer shows time in soaking and cooling phases;

High-accurate and shockproof pressure meter in indicates clear readings.

Changeable welding position brings more convenience while various fitting.



Specification of butt fusion welding machine

Specification

LD160/50

LD250/63

HD315/90

HD450/280

HD630/355

Fusion Range(mm)

63*75*90*110*125

140*160

63*75*90*110*125

140*160*180*200

225*250

63*75*90*110*125

140*160*180*200

225*250*280*315

280*315*400*450

500

355*400*450*500

560*630

Temperature Range

300℃

300℃

300℃

300℃

300℃

Temperature Deviation

±3℃

±3℃

±3℃

±3℃

±3℃

Operation Pressure Range

0-6.3Mpa

0-6.3Mpa

0-6.3Mpa

0-6.3Mpa

0-6.3Mpa

Heating plate power

1.5kw

2.1kw

3.5kw

5.38kw

9.35kw

Planing tool power

1.1kw

1.1kw

1.1kw

1.5kw

1.5kw

Hydraulic unit power

0.75kw

0.75kw

0.75kw

1.5kw

1.5kw

Total power

3.35kw

3.95kw

5.35kw

8.38kw

12.35kw

Power supply

220v/50hz

220v/50hz

220v/50hz

380v/50hz

380v/50hz

Gross weight

110kg

170kg

200kg

400kg

635kg

Dimension

(mm)

Basic frame

950*540*500

950*540*500

950*540*500

1310*900*960

1430*1000*1050

Middle parts

910*445*430

570*540*645

1020*650*660

940*550*1230

1090*650*1400

Hydraulic unit

745*540*480

745*540*480

780*755*690

745*540*480

740*500*450

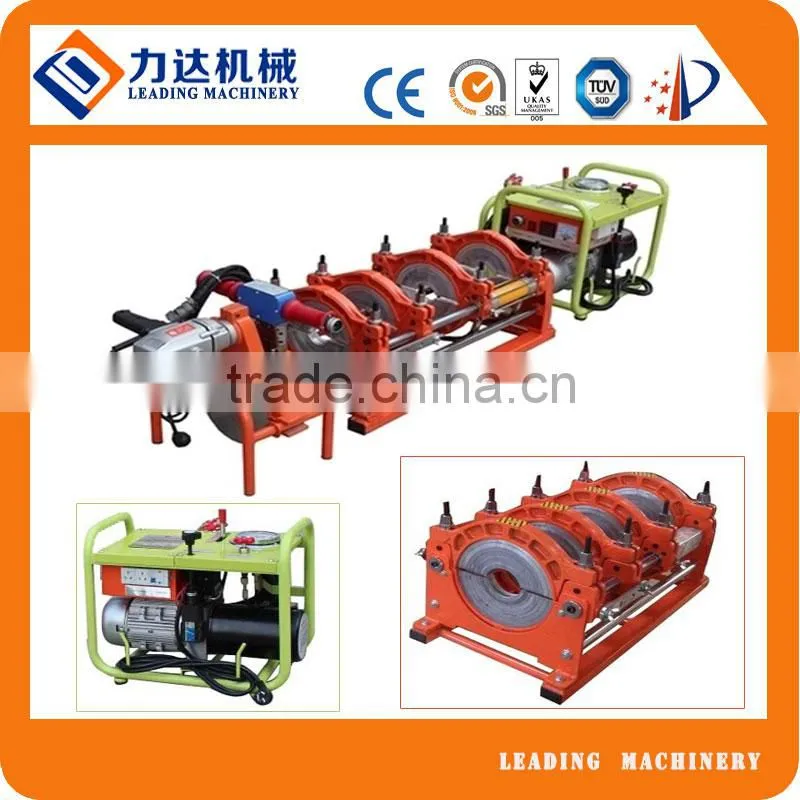

LD250/63 HDPE pipe butt fusion welding machine
