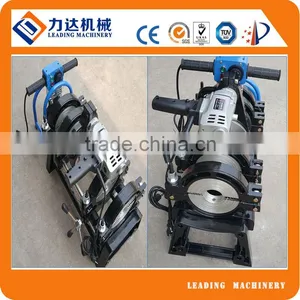

HDPE PIPE Butt Fusion Welding Machine
US$ 1,500 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
LEADING
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic Pipe Butt Fusion Welding MachineUS$ 3,000 - 4,000MOQ: 1 Set -
Plastic Welder MachineUS$ 800 - 1,000MOQ: 1 Set
-
HDPE SEMI-AUTOMATIC HYDRAULIC BUTT FUSION WELDING MACHINEUS$ 12,000 - 13,000MOQ: 1 Set
-
LD630/355 Hydraulic Termofusion Welding EquipmentUS$ 3,500 - 4,000MOQ: 1 Set
-
LD315/90 Hydraulic Butt Fusion Welding MachineUS$ 1,300 - 2,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
LEADING
Model Number
LD-B160/63H
Input Voltage
220V
Current
8.4A
Power
3.2kw
Dimensions
160mm
Usage
Butt Welding, PE,PP, and PVDF pipe
Certification
CE Approved
After-sales Service Provided
Overseas third-party support available
Product Description
Specifications
butt welder
1. Fusion machine dia.:63-160mm
2. Fusion machine application:PE,PP,PVDF.
3. CE compliant
Application and features:
*Suitable for butt welding of plastic pipes and/or fittings made of PE, PP and PVDF in worksite or workshop.
*Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool&heating plate, and optional parts.
*Removable PTFE coated heating plate with high accurate temperature control system.
*Electrical planing tool with safty limit switch.
*Be made of lightweight and high strength material; Designed with a clamp opening angle of 45 degrees C.
*Low starting pressure and high reliable seal structure.
*Changeable welding position enables to weld various fittings easier.
*Separate two-channel timer records time in soaking and cooling phases.
*High-accurate and shockproof pressure meter indicates clearer readings.
Technical specifications
Welding ranges: plastic pipes: 63mm-160mm
(63mm-75mm-90mm-110mm-125mm-140mm-160mm)
Ranges of application: PE,PP and PVDF
Working voltage: ~220V±10%,50Hz
Total power: 3.2 kW, including: planning tool: 0.7 kW, heating plate: 1.0 kW, hydraulic unit motor: 1.5kw
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.
Environment temperature: -10° ~ 45°
Electronic count-down timer for heating and cooling time.
Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit and support (for planning tool & heating plate)
