Product Details
Place of Origin: | Shandong, China | Brand Name: | LIDA | Model Number: | LM-HAJ120 |
Voltage: | 380v | Power: | 5-8kw | Welding Area: | 30-40 |
Dimensions: | 12m | Weight: | 10ton | Usage: | Tarpaulin welding |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
Tarpaulin Welding MachineReasonable design
Easy operation
Fast speed

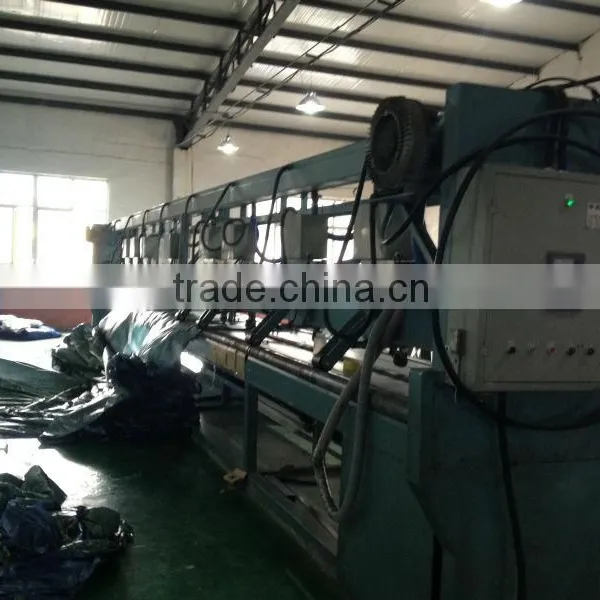

Tarpaulin Welding Machine
Usage and features:
*To fold PE/PVC tarpaulin sides and jointing the separate tarpaulin cloth by hot welding.
*With automatic temperature control device and independent air blower, high welding speed.
*The heater is configured internal and external bladder devices
*With mechanical stepless transmission
*With Pneumatic roll lamination devices
Technical Parameters:
Jointing width | m | 0-12 | |
Welding speed | m/min | 0-30 | |
Jointing seam width | mm | 30-40 | |
Welding head Number | pieces | 3-7 | |
Hot air temperature | °C | 350-500 | |
Heater power | kw | 5 | |
Main power | kw | 5.5-7.5 | |
Air blower | Power | kw | 0.75 |
Wind pressure | kpa | 28 | |
Blowing rate | m3/h | 120 | |
Rotating speed | r/min | 2800 | |
Compress air | Air pressure | mpa | 0.66-0.8 |
Air flow | m3/min | 1.5-2.4 | |
External size | m | ||
Code no | LM-HAJ64 | LM-HAJ80 | LM-HAJ120 |
Main body | 7.7x1.5x1.6 | 9.2x1.5x1.6 | 13.2x1.5x1.6 |
Auxiliary parts | 3x0.9x1.2 | 5x0.9x1.2 | 7x0.9x1.2 |
