Product Introduction
Cattle yard panel is usually called cattle panel, horse panel,livestock panel,corral panel etc.It is fabricated with welded hot dip galvanized pipes for the use of fencing livestocks, such as cattle,cow,bull,calves,Dairy sheep,goat,dog.
Features of cattle panel
--oval horizontal rails, no sharp edge, can protect animals from getting hurt, high safety
--perfect spacing,protect the lambs or calf from running away and breaking legs.
--middle braces for high strength and heavy duty
--with welded top caps and foot plates, water and dust proof
--welded "U" and "L" lugs for easy connection. The lugs are welded for all four sides, very durable and safe.
--footplate on the panel,can cement the panels on the ground by pins.
--2 joining pins are supplied for each panel
Easy to assemble and lightweight for easy handling, Metalcorp cattle pan RHS 40mm RHS 50mm livestock panel
(Anping factory) else are manufactured from high-strength steel .
Panel size: 1.8m highx2.1m wide, 1.6m highx2.09m wide
Horizontal rails: 1.8m high with 6 rails,1.6m high with 5 rails
Fence poat: 40x40mm RHS,50x50mm RHS
Rails: 30x60mm,40x80mm or 40x40mm RHS,50x50mmRHS
Wall thickness: 1.6mm
Zinc coating: 80-100g/m2
Accessories: with caps,lugs,pins and feet
Application of cattle panel (cattle yard panel,livestock panel,corral panel)
the metal animal farm fence panels are widely used in animal husbandry to raising livestocks (cattle/cow/dairy/horse/sheep/goats etc). The connection is very flexible, every panel has lugs so you can connect the panels according to
your need.
The galvanized metal rail panels are very suitable for animal stall, feedlot fence, horse corral fence, area fence etc.
Heavy duty Cattle Yard Swing Gates.
1. Height 2200mmx Length 2000mm
2.Frame: Vertical pipe: 50mmx50mm RHS with fully
welded caps
3. Cattle Gate Horizontal rail: 80mmx40mmx6 Oval
anti-bruise rails "Bull bars"
4. Finish: HDG 15-micrpns
5. Fully weded oval pipes, post & brackets
6. Supplied with two HDG Pins

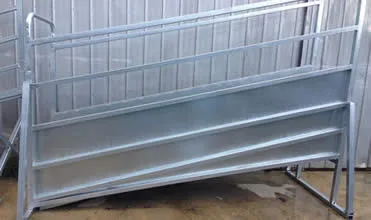

Cattle Loading Ramp
1. Cattle ramp: 3.2m length.
2. Overall height 3,242 mm. Inner width: 735mm
3. Adjustable ramp height: from 585mm-1500mm.
4. Winch Mechanism with 10mm wire rope HDG.
Eliminates manual lifting
5. Frame: 50mmx50mmx2.00mm
6. Side panels: 6x50x50x2.00mm ( side gal sheeting
1.5mm thick)
7. Floor: HDG 3mm checker plate with steel struts for
better grip
8. Pre-galvanized, HDG after fabrication or as client
requst
Heavy duty Sliding Gates
1. Height 2200mmx inner width 800mm
2. Frame: Horizontal & Vertical pipe: 50mmx50mm RHS with fully welded fully welded caps
3. Horizontal rail: 40mmx80mmx6 Oval anti-bruise rails "Bull bars"
4. Nylon rollers
5. Finish: HDG 15-mica ns
Transportation
The shipping company for more than 10 years to protect the security of goods and quickly reach.
To keep products safe,we will take photos when loading and track the products situation for long transportation to make sure the product arrive at the designation ASAP.
Company Information
• Company’s name: Anping Jiang Rui Wire Mesh Products Co., Ltd.
• Areas: 13000m2
• No. of Employees: 50
• Cartographers: 5,we can design drawings as clients' requirements
• Personnel for preparing samples: 5
• No. of QA/QC Inspector(s): 5
• Overseas Markets: Europe, South America, Australia, North America, Asia etc.
• Annual Revenue: USD10,724,000
• Certificates: ISO9001 certificate, SGS certificate, etc.
Pre-Sales Service
Based on your needs, we will offer our expert support.
2. Solution Design
Working closely with our clients, we create the best
possible design to meet the customer's requirements.
3. Expert drawing
Each business, we will make the specialized drawing
to meet client's requirement.
4. Sample testing support.
5. View our Factory.
After-Sales Service
2.Shipping company: We will choose good services and low price on the shipping company.
3. To keep products safe,we will take photos when loading and track the products situation for long transportation to make sure the product arrive at the designation ASAP.
4. Arrival of the goods,we will provide installation
instructions and subsequent technical guidance.
5. For products and accessories , we will provide various
products accessories at cost to clients at any time.
Contact
ADD: East Of Baoheng Road, East Of Hecao Cun, Anping
County, China.
Tel: +86-318-8063988
Fax: +86-318-8063966
Mobile:+86-15931379855
Whatsapp: +86-15931379855
Skype ID & Facebook: yanyshine
Our web site: Http://
