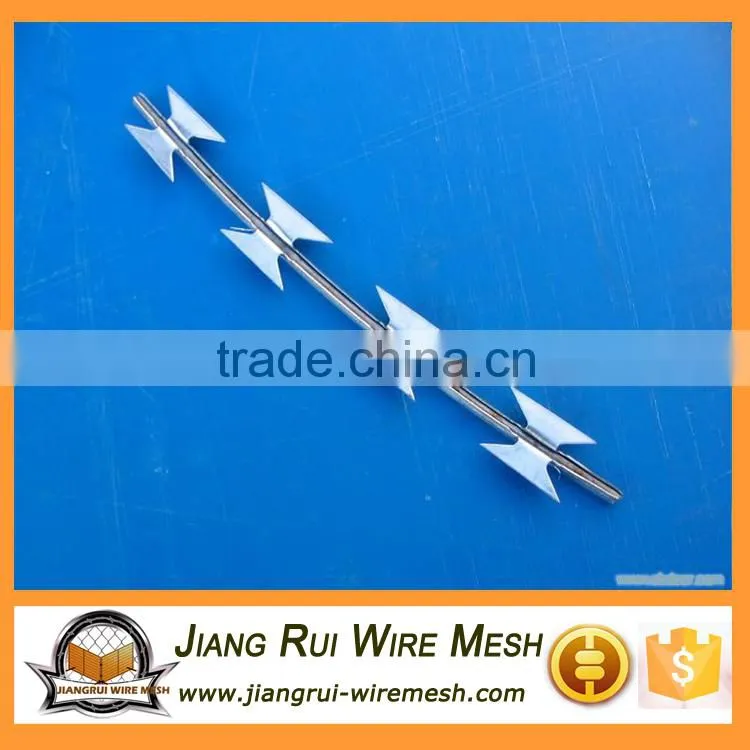

Help CenterCross Loop Razor Barbed Wire Netting
Related Products
-
JR Low Carbon Barbed WireUS$ 8 - 8MOQ: 50 Rolls -
Hot Sales Low Carbon High Tensile Razor Barbed WireUS$ 30 - 30MOQ: 500 Rolls
-
2016 Hot Sale Concertina Razor Barbed WireUS$ 600 - 600MOQ: 30 Rolls
-
Fence Barbed Wire(ap Manufacturers )US$ 400 - 460MOQ: 1 Ton
-
Hot Dipped Galvanized and PVC Coated Barbed WireUS$ 900 - 900MOQ: 30 Rolls
Galvanized Steel Coiled Barbed Wire

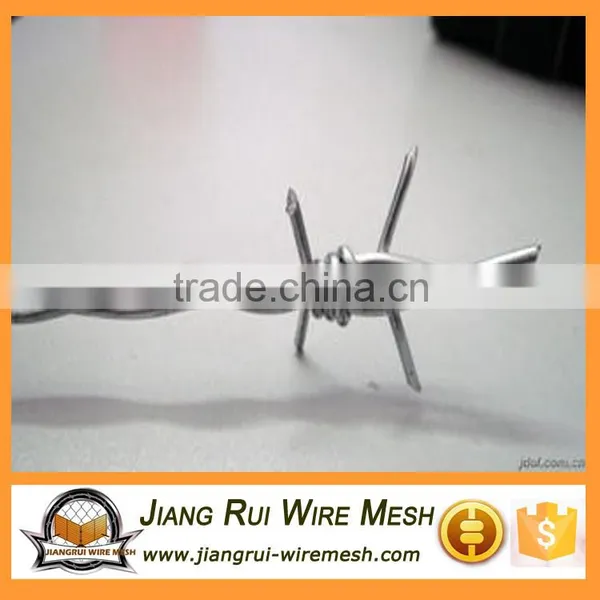

1.Specification of Barbed Wire :
|
Gauge of Strand and Barb in B.W.G. |
Approximate Length per kilogram in Meter | |||
| Barbs Spacing | ||||
| 3'' | 4'' | 5'' | 6'' | |
| 12x12 | 6.0617 | 6.759 | 7.27 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.719 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.562 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.659 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.507 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.406 | 19.3386 |
2.Material of Barbed Wire :

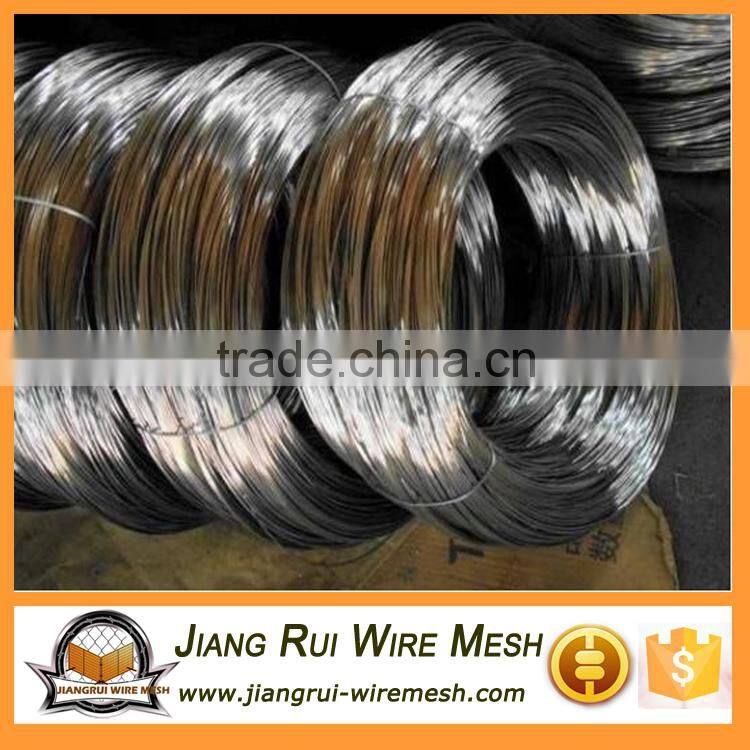

1).high quality low carbon steel wire,
2).stainless steel wire ,
3).medium carbon steel wire (galvanized,plastic coated, plastic sprayed)
3.Types of Barbed Wire :
1).double twisted barbed wire ,
2).general barbed wire,
3).single strand barbed wire.

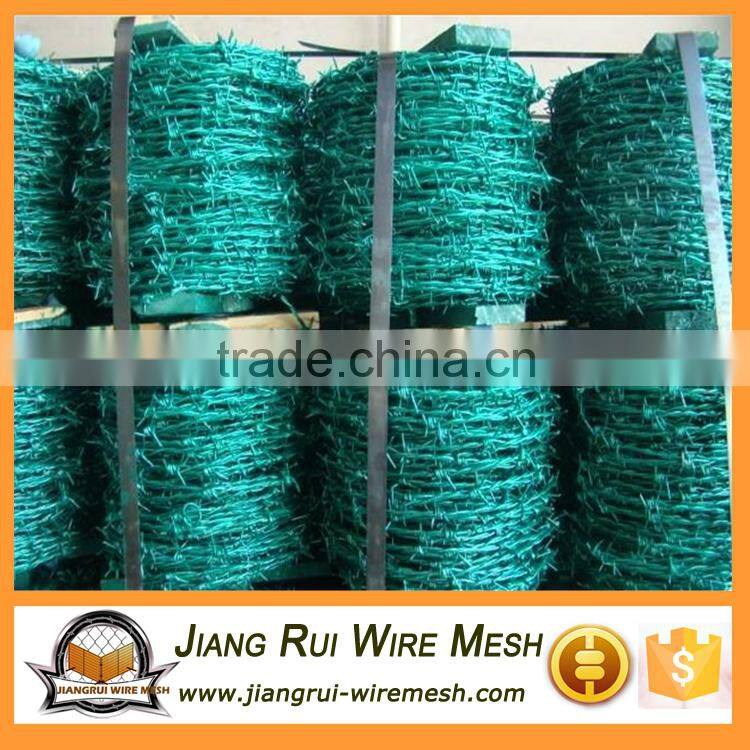

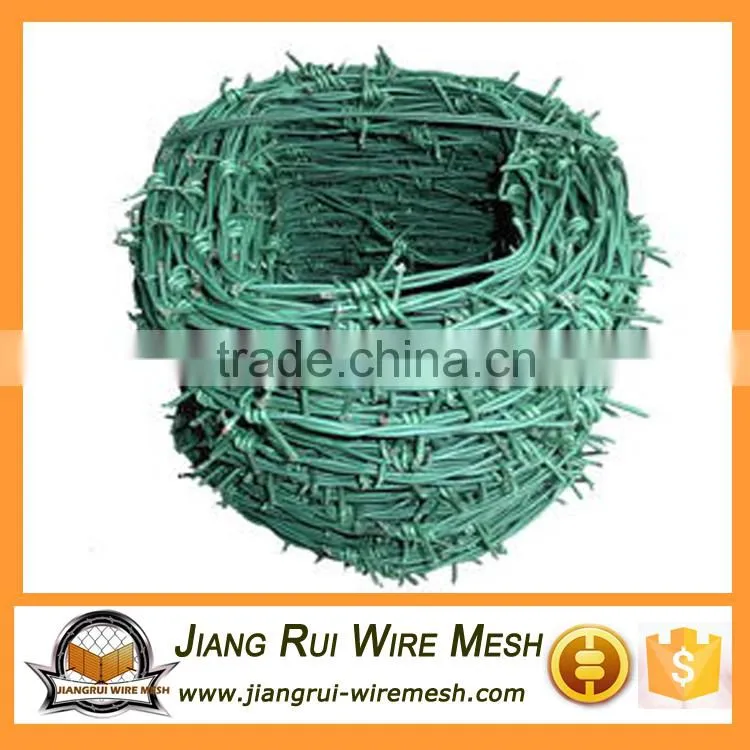

4).PVC barbed wire,
5).stoving varnish barbed wire.

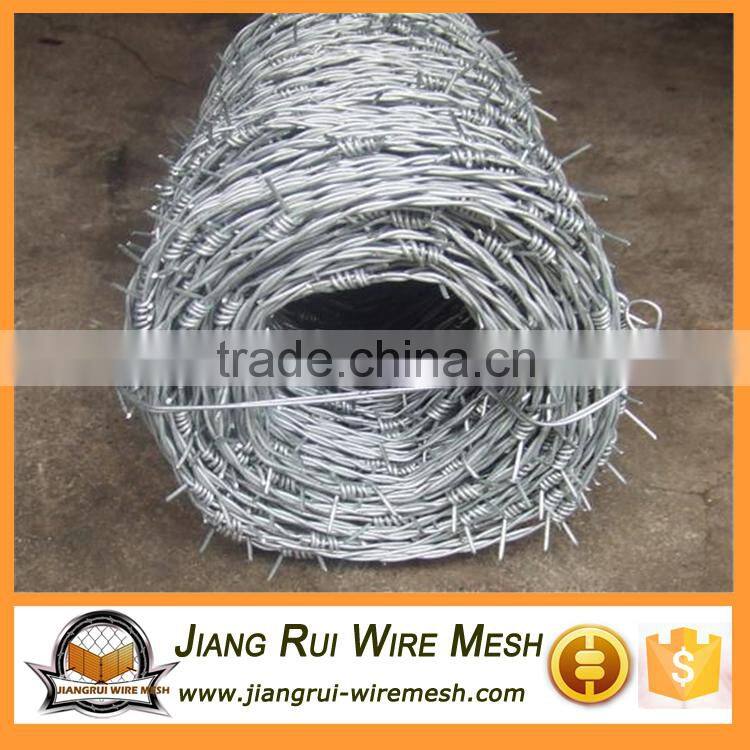

6).Galvanized Barbed Wire : Electro Galvanized Barbed Wire ; Hot-dip Galvanized Barbed Wire .
7).Stainless Steel Barbed Wire;
4.Features of Barbed Wire :
Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.
5 Application of Barbed Wire

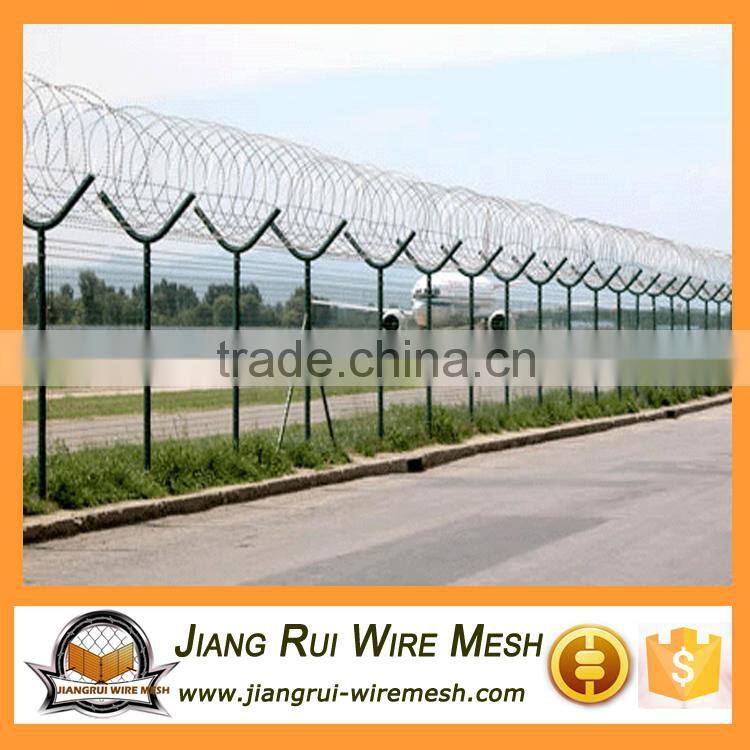

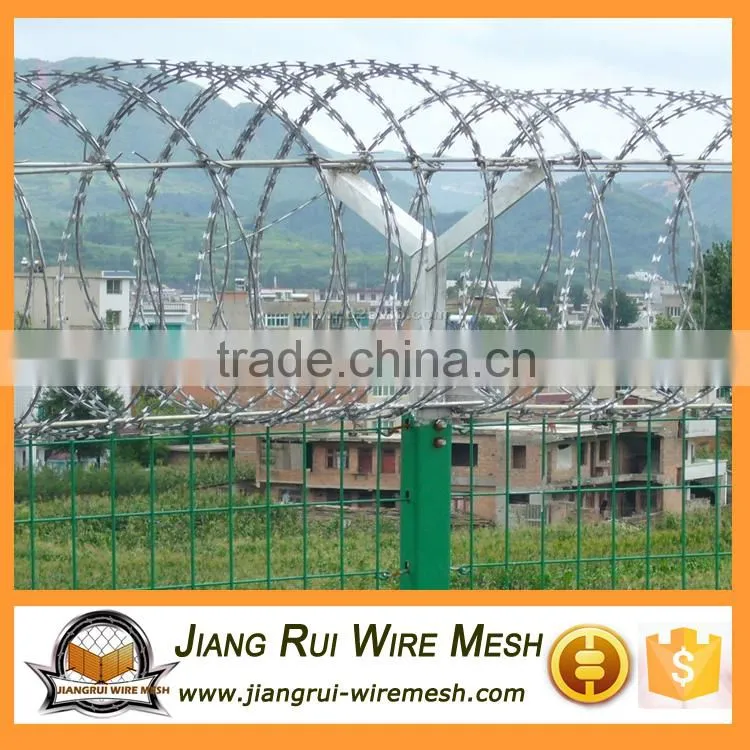

Barbed wire is mainly used in protecting of grass boundary ,railway,highway ,national defense ,airport,orchard ,etc.Excellent protective performance.beautiful appearance,various patterns
6.Packing of Barbed Wire :
1. in rolls with or without handle ( handle with or without plastic)

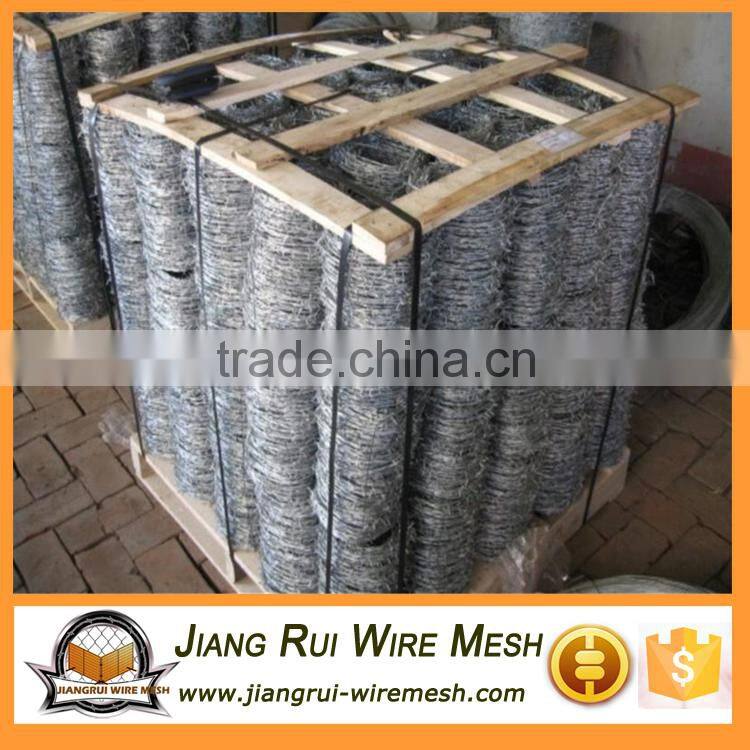

2. in rolls with pallet or without pallet 3. based on customer requirement
our company:
Hebei Anping Jiang Rui Wire Mesh Products Co., Ltd. Is In Anping County,The Home Town of Wire Mesh In China. It covers 3000 square meter, register capital is one million RMB. It has become a big comprehensive wire and wire mesh company which is engaged in production, sales, research and development.
We have a professional production line of wire mesh fences including spot welding machine,single spot welding machine, auto steel wire mesh welding and shaping machine, bending machine for big wire mesh panels and matching PVC coating equipment.
Our major products include expressway wire mesh fences, safety wire mesh for railway, airport, sea port,constructions and aquaculture; iron decorative wire mesh fences; wire mesh fencing; barbed wire and razor barbed wire for safety fencing, welded wire mesh in piece and PVC coated welded wire mesh in rolls. Our products offer good corrosion-resistance, anti - aging property, acid and alkali resistance, no color fading, smooth and neat surface and comfortable touch.
our services
Custom Design:
If our size isn't suitable for you we can make it as your requirement.
package and loading:
We could help you arrange the shipping and any knid of package.
Advise:
We could give advise based on your purpose and give you the best proposal like different
user and wholesaler
all receipts
We will express all the needed receipts to you when it was ready
FAQ
Are you a manufacture?
of course we are and welcom to visit our factory.
How many methods for surface treatment?
galvanizing+pvc coated+powder coated
could you supply the sample?
Be happy to do that.
How to assemble?
we will teach you how to assemble by vedio.
If any interest in galvanized steel coiled barbed wire ,or any questions feel free to contact me.I will give you the best proposal.
