PET Sheet Making Unit (Plastic Machinery)
- 20 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | Shicheng |
Model Number: | XDC SJ120/34 | Certification: | CE |
Product Description
Specifications
1)Transparent PET Sheet Making Unit2)High quality with competitive price
3)The highest yield: 400kg / h
4)Long life
Welcome to visit our Transparent PET Sheet Making Unit !
PET sheet making unit was developed by our company with compact structure,high and stable output, reasonable configuration and high automation is available for 100% reclaimed scrap material and can product PET sheet used for packing material due to its advantages of air insulating, being free from other additives, cleanliness,good tenacity and ductibility, good reclaiming performance, etc. They are popular in the following packing and printing fields as medcine, food, electric appliance,toys,etc.
Extruder: Parallel double screw extruder is characterized by high output and good plasticization.The vacuum exhaust improves the quality of the product. It can process various sorts of plastic.
Metering pump: The meter pump with excellent quality alloy steel guarantees stable melting pressure and flow.
Mould: Moulds adopts high qualilty alloy steel and can make the material flow distributes evenly in the mouth mould.
Traction: The cooling roller is of large diameter, low temperature and S type material discharge. It enlarges the impulsive cooling area and shortens the length of the production line.
Corona treatment: It eliminates the static on the surface and enlarges the surface tension which guarantees the printing quality.
Double work station coiler: Two moment motors supply the power to the machine, and pneumatic shafts do coiling work respectively.
Width of the sheet:≤1250mm, thickness:0.2-1mm.
The configuration list is as follows:
1 | Single-screw extruder SJ-120/34 | 1unit |
2 | Single-screw extruder SJ-65/33 | 1unit |
3 | Hydraulic extruder for the network | 1unit |
4 | Metering pump 150 cc | 1unit |
5 | Co-extruded composite distributor (ABA) | 1unit |
6 | Dies (ABA) | 1set |
7 | Three roll-ray machine | 1unit |
8 | Cooling frame (5 m) | 1unit |
9 | Traction | 1unit |
10 | Two station rolling machine | 1unit |
11 | Wasted material winding device | 2 set |
12 | Pre-crystallization drying equipment | 1 set |
13 | Crusher | 1unit |
14 | Electrical control system | 1set |
Our company can design and manufacture products with different specs for clienteles.
If you are interested in our product, please be free to contact us. Whether we could cooperate, we would do our best to help you. I’m confident that will be benefit to you and us!

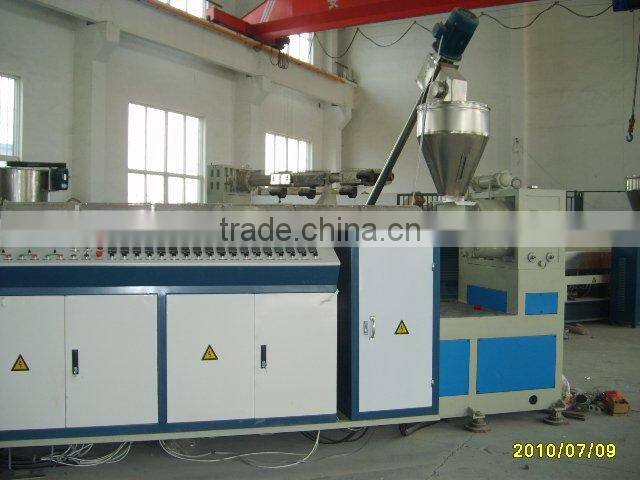

1. The Extruder:
2.The Sheet Mould:

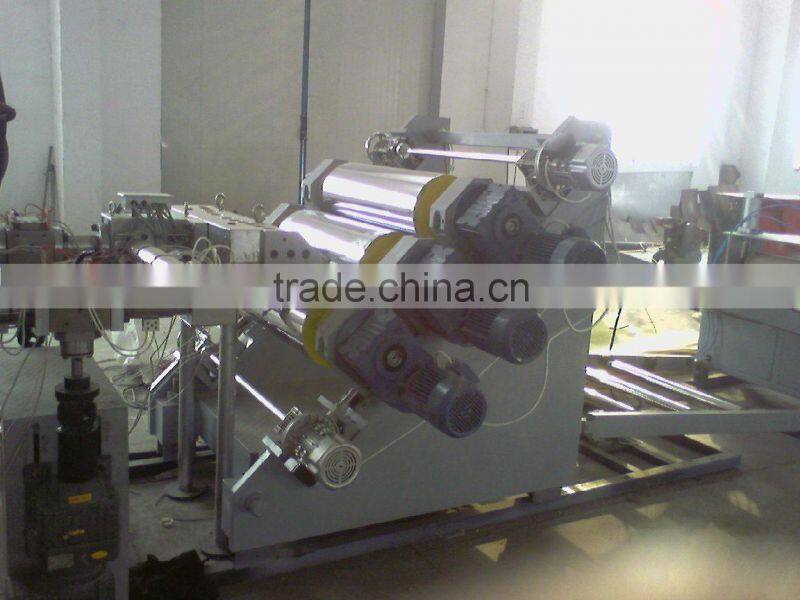

3. The 3-roller Calender:

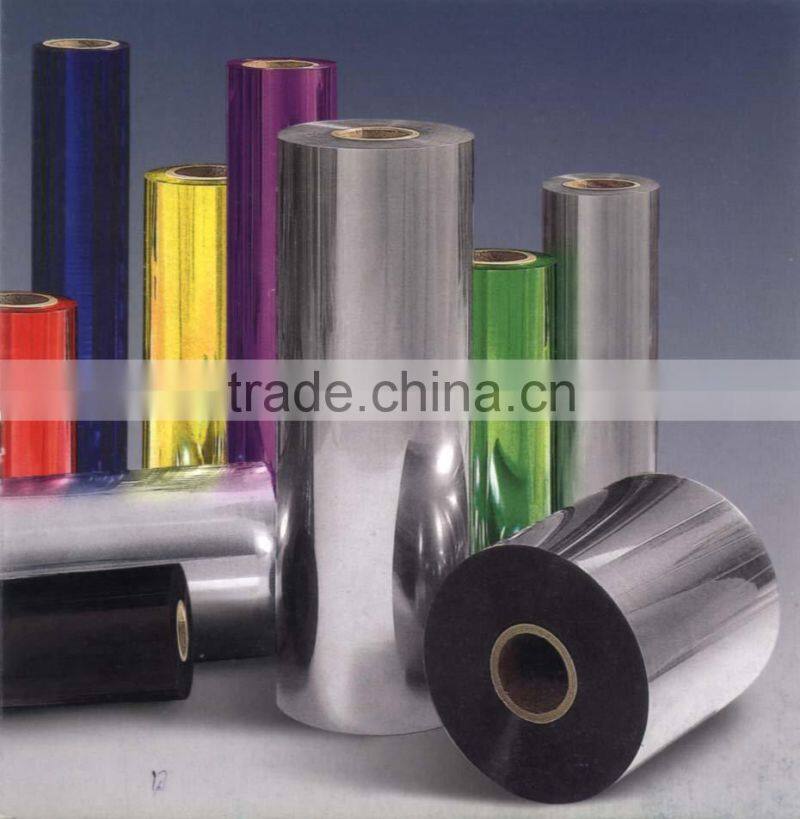

4. The PET Sheet:
