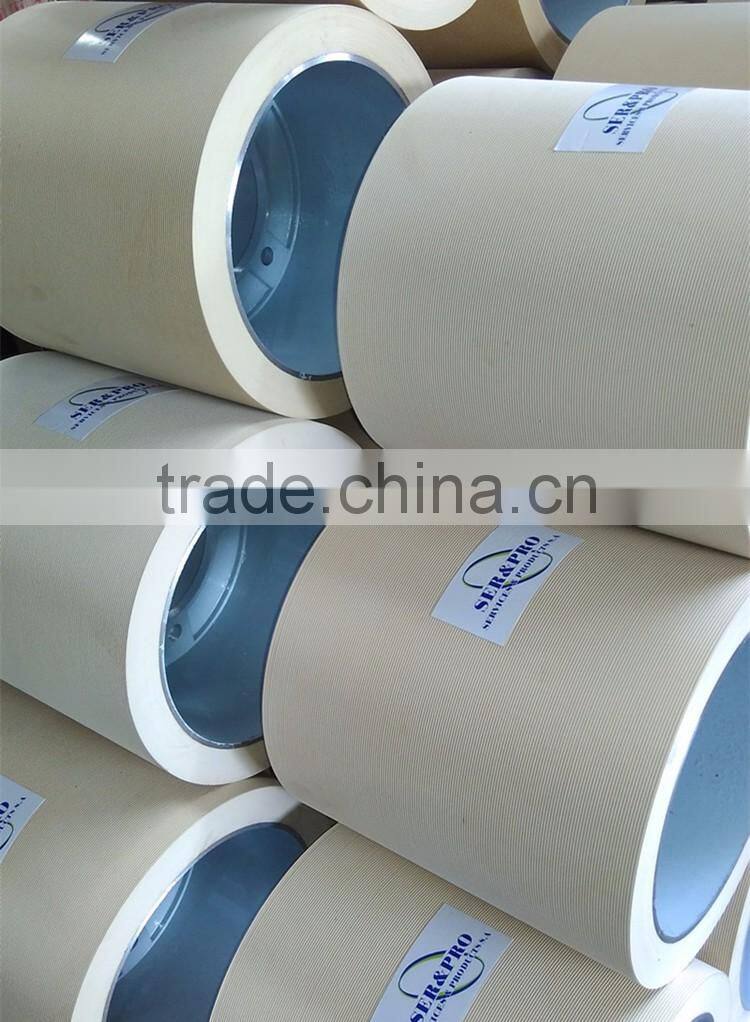

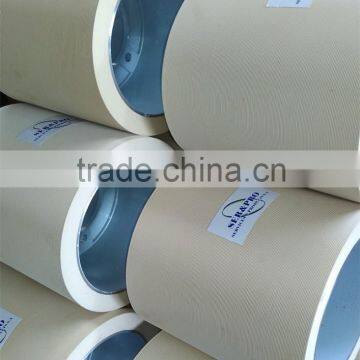

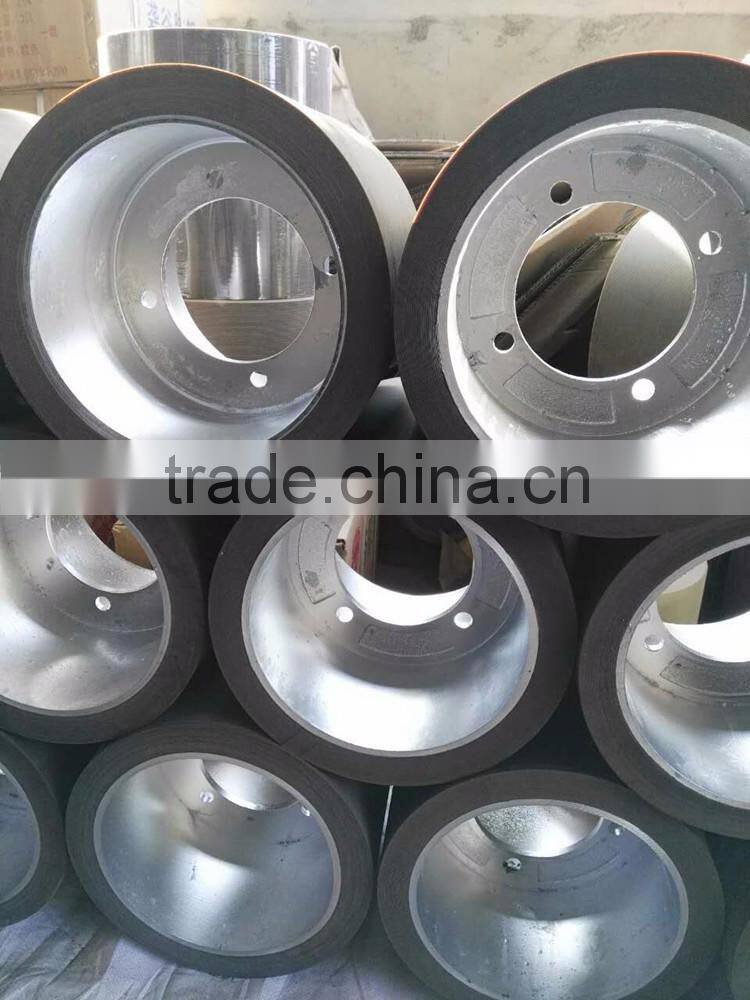

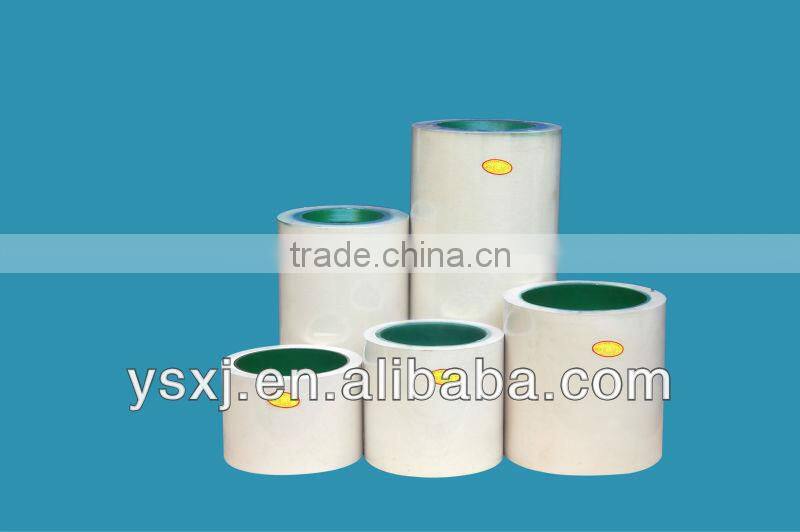

Help Center4",6",10",14" Poly Rice Huller Rubber Roller
Related Products
-
Rice Huller Rubber Roller,rubber Roll for Shelling MachineryNegotiableMOQ: 100 Pieces -
Polyurethane Rice Huller Rubber RollerNegotiableMOQ: 100 Pieces
-
PU Agriculture Rubber RollerNegotiableMOQ: 100 Pieces
-
6"8"10"Poly Rubber Roller for Rice Mill, Rice Huller Rubber RollerNegotiableMOQ: 100 Pieces
-
8 Inch Polyurethane Rice Huller Rubber RollerUS$ 16 - 19MOQ: 100 Pieces
roller rubber
General Information
1. Material:Poly
2.Minimum Order: 100pcs
3.Delivery Time: Within 60 days after receiving the payment
4.Packing:according to your request
Specifications:
1.Our company has over 10 years made of rice rubber roller experience
2.Our products exported over 10 countries of the world
3.The enterprise got ISO9001-2008 certification
Technical Specification

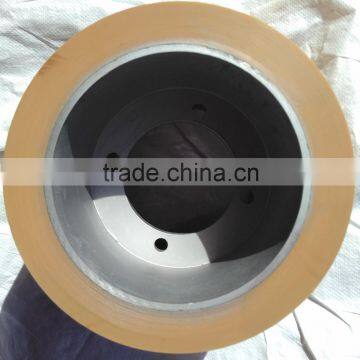

A. Color: Brown
a: Tensile Strength:Mpa 23-25
b: Elongation Rate: % 290-400
c: Wear Reduction: cm3/1.6km 0.19-1.05
d: Hardness (shore A): 95-96oC

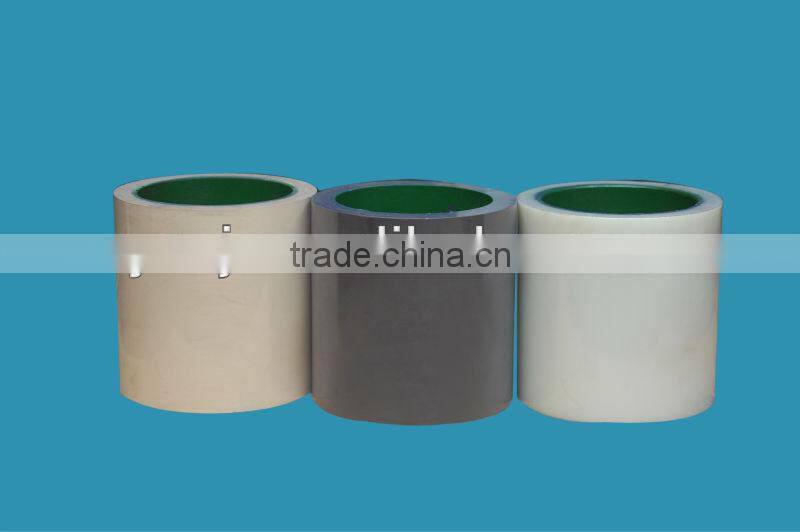

B. Color: White
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-400
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 94-95oC

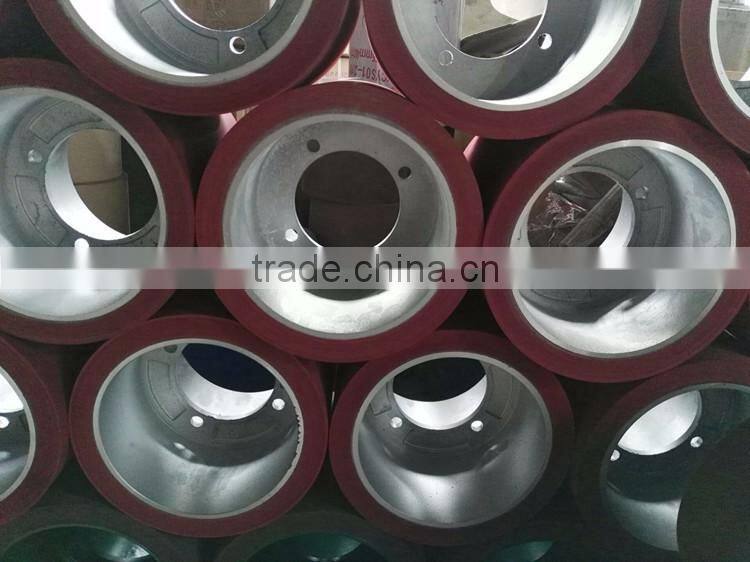

C. Color: Amber &Red
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-350
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 92-96oC

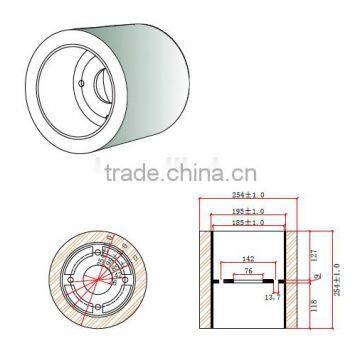

Size
| Type | Model No |
Inch | Length mm | External Diameter | Thickness of Rubber |
Wheel Type |
LGL 100B | 4" | 100 | 222 | 19.5 |
| LGL 152 | 6" | 152 | 222 | 19.5 | |
| LGL 178 | 7" | 178 | 222 | 19.5 | |
| LGL 200 | 8" | 200 | 225 | 25 | |
| LGL 254 | 10" | 254 | 255 | 25.5 | |
| Casing Type | LGT 355 | 14A" | 355 | 227 | 29.5 |
| LGT 457 | 18A" | 457 | 232 | 25.5 | |
| LGT 508 | 20A" | 508 | 255 | 25.5 | |
| LGT 635 | 25" | 635 | 255 | 25.5 | |
| LGT 708 | 28" | 708 | 255 | 25.5 |
Advantages
1. High shelling efficiency, up to 95%
2. Excellent chemical and phsical properties.
3. Good in heat and abrasion resistance.
4. Good in temperature and weather resistance .
5. Strong bonding between rubber roll and drum
Usage and Attention
1. Optional of Rubber Roller:
For the choice of the black, brown and white rubber roller with hardness shore A 90oC and 95oC,
it should be according to the type of rices, climate conditions, and different seasons.
Try to avoid to use the single roller, the recommended way is higher hardness for fast roller,
lower hardness for slow roller.
2.Temperature and Hardness Control:
The proper hardness is shore A 82-86oC, and the temperature is below 50oC.
When the temperature reaches above 60oC, the hardness of roller should be reduced 4-8oC
3. Alternative use of rubber rollers is recommended:
A: It can increase the usage life of roller and quantity of dehusking rice.
B: Each roller has break time during the working, which is good for recoving the function of rubber,
adjusting the speed difference upon on different diameters, and controlling the temperature effectively.
4. Two rollers should be at the same level to keep the space equal.
5. The paddy inputting should keep the balance.
6. Keep the rate of the re-hulling under the limitation
7. Storage:
A: Avoid the direct sun shine and soaked in the rain and snow.
B: Away from the heating device about 1.5m.
C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.
D. Keep the room temperature 10-30oC, comparative moisture 50-80oC
E. Keep in vertical position, horizontal is not allowed.
F. No other materials pressure on it, no hitting to avoid deformation and damage
G. Validity of storage life: one year.
