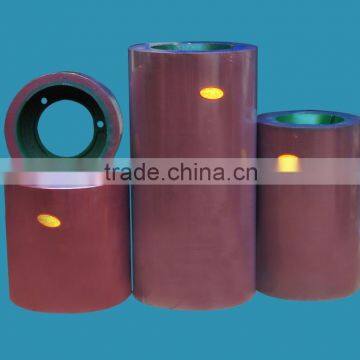

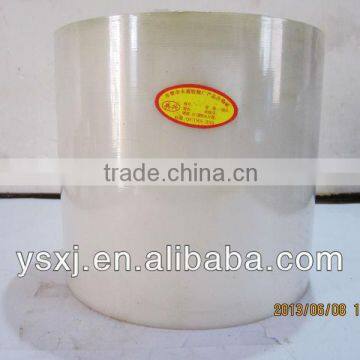

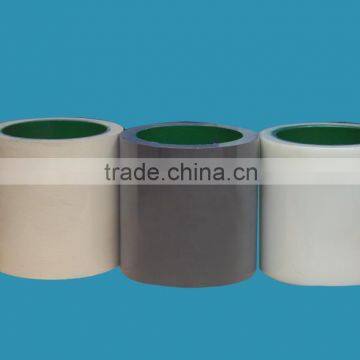

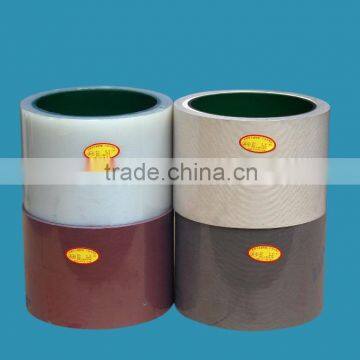

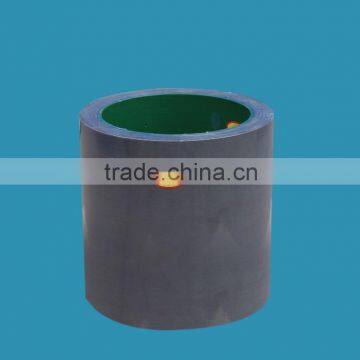

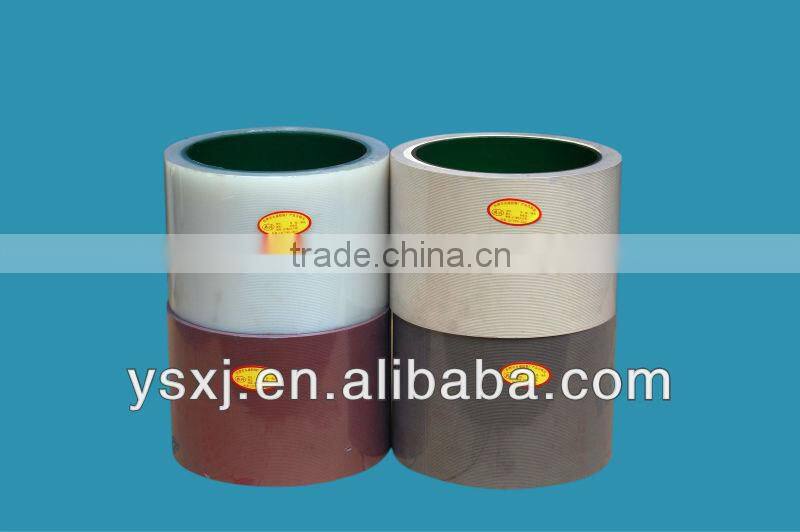

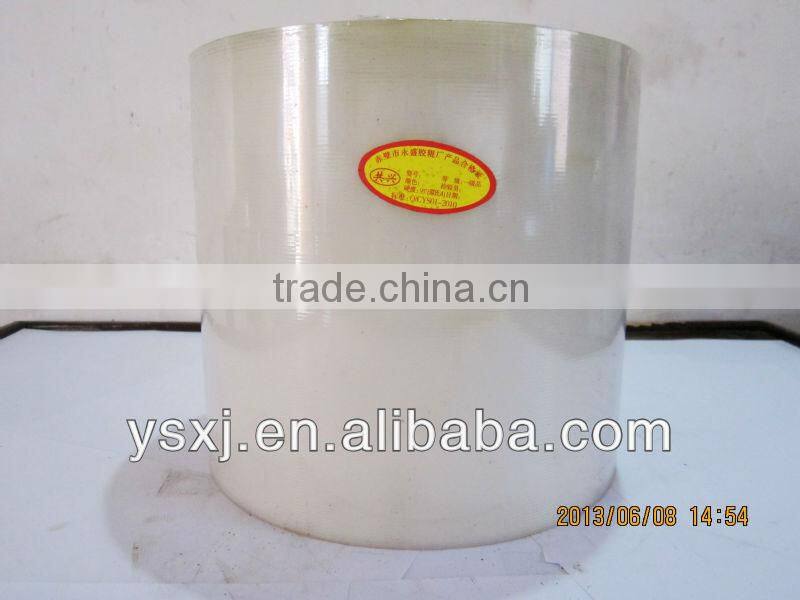

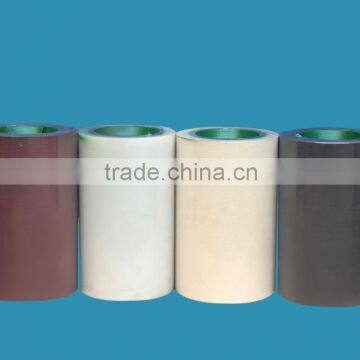

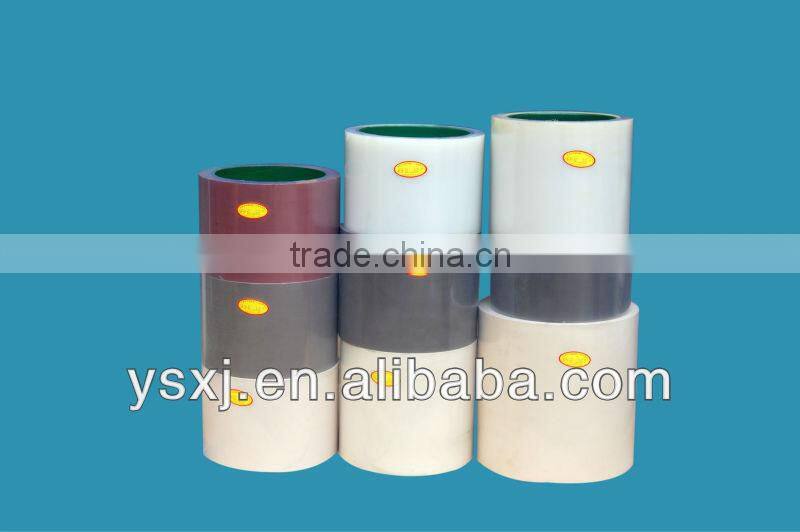

Polyurethane rice rubber roller
General Information
1. Name: Rubber Roller For Rice Huller
2. Material: SBR,NBR, POLY
3.Color: brown, white, amber, red
4.Size: 6 Inch
5.Minimum Order: 100pcs
6.Delivery Time: Within 20 days after receiving the payment
7.Packing: shirnk film of each piece, carton box outside
8.Hulling capacity: 10" NBR white 180mt brown 150mt SBR white 150mt brown 130mt POLY 380mt
14"NBR white 230mt brown 200mt SBR white 210mt brown 200mt POLY 500mt
Specifications:
1.Our company has over 10 years made of rice rubber rollers experienece
2.Our company products export to over 10 countries
3.The enterprise got ISO9001-2008 certification
Operating principle:
Bedcause of speed difference of veer and reversion between rubber rollers
paddy are torns up by two rubber rollers, in the end, rice grain comes out
Technical Specification
A. Color: Brown
a: Tensile Strength:Mpa 23-25
b: Elongation Rate: % 290-400
c: Wear Reduction: cm3/1.6km 0.19-1.05
d: Hardness (shore A): 95-96oC
B. Color: White
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-400
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 94-95oC
C. Color: Amber
a: Tensile Strength:Mpa 22-24
b: Elongation Rate: % 280-350
c: Wear Reduction: cm3/1.6km 0.15-0.10
d: Hardness (shore A): 92-96oC
Size
| Type | Model No |
Inch | Length mm | External Diameter | Thickness of Rubber |
Wheel Type |
LGL 100B | 4" | 100 | 222 | 19.5 |
| LGL 152 | 6" | 152 | 222 | 19.5 | |
| LGL 178 | 7" | 178 | 222 | 19.5 | |
| LGL 200 | 8" | 200 | 225 | 25 | |
| LGL 254 | 10" | 254 | 255 | 25.5 | |
| Casing Type | LGT 355 | 14A" | 355 | 227 | 29.5 |
| LGT 457 | 18A" | 457 | 232 | 25.5 | |
| LGT 508 | 20A" | 508 | 255 | 25.5 | |
| LGT 635 | 25" | 635 | 255 | 25.5 | |
| LGT 708 | 28" | 708 | 255 | 25.5 |
Advantages
1. High shelling efficiency, up to 95%
2. Excellent chemical and phsical properties.
3. Good in heat and abrasion resistance.
4. Good in temperature and weather resistance .
5. Strong bonding between rubber roll and drum
Usage and Attention
1. Optional of Rubber Roller: For the choice of the black, brown and white rubber roller with hardnes shore A 90oC and 95oC, it should be according to the type of rices, climate conditions, and different seasons.Try to avoid to use the single roller, the recommended way is higher hardness for fast roller, lower hardness for slow roller.
2.Temperature and Hardness Control: The proper hardness is shore A 82-86oC, and the temperature is below 50oC. When the temperature reaches above 60oC, the hardness of roller should be reduced 4-8oC
3. Alternative use of rubber rollers is recommended:
A: It can increase the usage life of roller and quantity of dehusking rice.
B: Each roller has break time during the working, which is good for recoving the function of rubber, adjusting the speed difference
upon on different diameters, and controlling the temperature effectively.
4. Two rollers should be at the same level to keep the space equal.
5. The paddy inputting should keep the balance.
6. Keep the rate of the re-hulling under the limitation
7. Storage:
A: Avoid the direct sun shine and soaked in the rain and snow.
B: Away from the heating device about 1.5m.
C: Store in dry and clean place, away from acid, alkali, salt, oil and organic solvent.
D. Keep the room temperature 10-30oC, comparative moisture 50-80oC
E. Keep in vertical position, horizontal is not allowed.
F. No other materials pressure on it, no hitting to avoid deformation and damage
G. Validity of storage life: one year.
