Specifications
large diameter HDPE pipe making machinery (plastic machinery) is full automatic control,pipe diameter: 12-630mm
PLC control

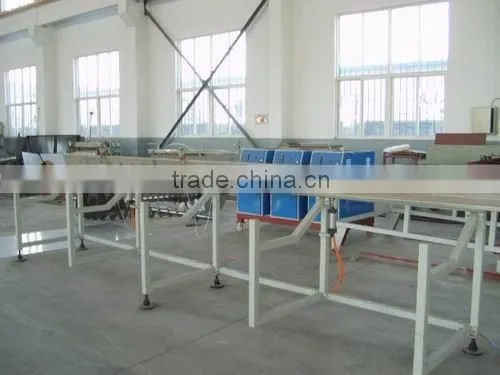

Large Diameter HDPE Water Supply And Gas Supply Pipe making machinery (plastic machine)
PE water supply and gas supply pipe extusion line, With this production line you can extrude high quality large diameter water supply and gas supply pipes.
The pipes produced by our line have excellent stiffness and flexibility, resistance to creep deformation,excellent heat-linkage.Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
Properties and Advantages: The production line consists of control system, extruder,mould, calibration unit, haul-off unit,planetary cutter and stacker.
Downstream equipment:This line is assembled lattice or spiral mould,new type calibration unit and spraying cooling bath. Advanmced PLC control system and large chromal liquid-crystal screen make the operation more convenient, having a friendly human-machine interface.
model number |
SJG-Z65×30-63 |
SJG-Z90×30-110 |
|
pipe diameter rangemm |
φ12-φ63 |
φ50-φ110 |
|
screw diametermm |
φ65 |
φ90 |
|
valid screw lengthL/D |
30:1 |
30:1 |
|
screw rotaing speedr.min-1 |
8-80 |
8-80 |
|
capacitykg.h-1 |
30-120 |
50-160 |
|
drawing Speedm.min-1 |
0-10 |
0-5 |
|
cutting method |
saw |
||
pipe length |
controlled by electronic counter or photoelectric shutter as left |
||
|
|
||
