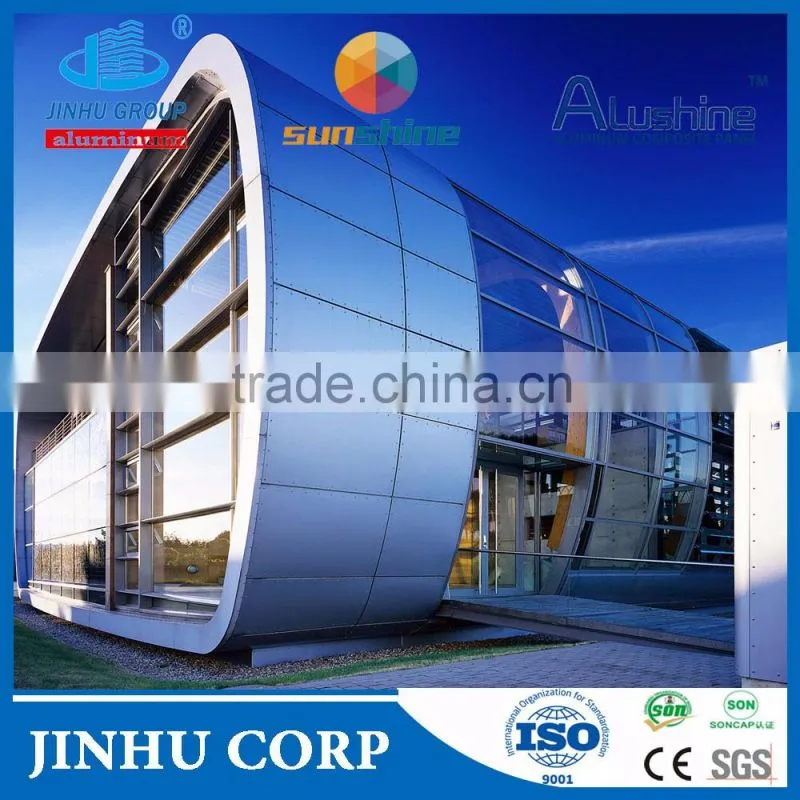

Help CenterAluminum Sandwich Panel/Aluminum Composite Wall Panel/Fireproof ACP
Related Products
-
High Quailty Aluminum Composite PanelUS$ 4 - 17MOQ: 1000 Square Meters -
Aluminum StripUS$ 2,000 - 3,000MOQ: 5 Metric Tons
-
2.8kgs Weight Stone Roof Tile With High QualityUS$ 2.5 - 3.65MOQ: 500 Pieces
-
Aluminum StripUS$ 2,000 - 3,000MOQ: 5 Metric Tons
-
Hot Selling Colorful Stone Coated Metal Roofing Tile/metal Corrugated Tile Roofing/Stone Chip Coated Metal Roof TileUS$ 2.8 - 3.3MOQ: 9000 Pieces
Aluminum Composite Panel
1.Standard size: 1220mm*2440mm*3/4mm
2.Aluminum thickness:0.02mm-0.5mm
3.Panel thickness:2-6mm
4.PE/PVDF/NANO coating
Product Details:
|
Standard Size |
1220*2440*3/4/5mm(regular), 1250*2440*3/4/5mm |
|
Width |
1220mm, 1250mm, 1500mm |
|
Length |
Any length up to 6000mm |
|
Total Thickness |
2mm, 3mm, 4mm, 5mm, 6mm |
|
Aluminium Thickness |
0.08mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm |
|
Aluminium Alloy |
1100 H18 or 3003 H24 or 3105 H14 |
|
Paint Options |
PVDF Kynar 500 (PPG or Backers), Polyester, Nano PVDF, Nano PE, Anodized |
|
Core Options |
PE core or Fire-rated Core |

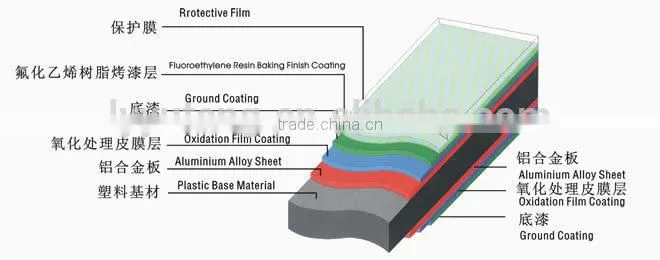

Product Properties:
PVDF Aluminum Composite Panel:
PVDF is short for Polyvinlylidene Fluoride, the color will have no obvious change within 15 to 20 years when it’s applied outdoor. PVDF paint should be 2-layer coating or 3-layer coating, and Painting Thickness ≥25um., Fluorocarbon Powder ≥70%.
Polyester(PE) Aluminum Composite Panel:
Due to Polyester paints’s great nature, it can achieve versatile vivid color and achive higher gloss rate than PVDF. Aluminum Composite Panel is ideal for interior wall and shopfront decoration and signaboard materials. And it can lower your budget the most.
With Polyester, the color has 5 to 10 years color warranty. Painting Thickness ≥18um, usually its a 1-layer coating or 2-layer coating.
Nano Aluminum Composite Panel:
Nano ACP is available in Nano PVDF ACP and Nano Polyester ACP. Nano PVDF is 3-layer coating, while Nano Polyester is 2-layer coat. And Nano ACP would look more glossy and shiny than Non-Nano ACP owning to the applied of Nano clear paint on top.
Advantage of Nano ACP:
1) Self-cleaning: Due to the applying of Nano paints on top, any dirt can not attach onto it easily, so there's nearly no need for manual cleaning.
2) Glossy efftect: Due to the extra layer of Nano paints, the gloss rate of Nano ACP is higher than ordinary PVDF or PE coating ACP. Thus Nano ACP can bring your building a shinny and glossy look.

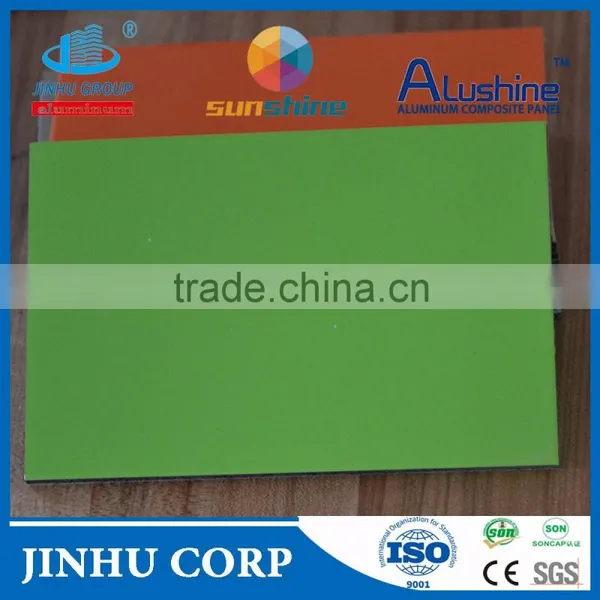

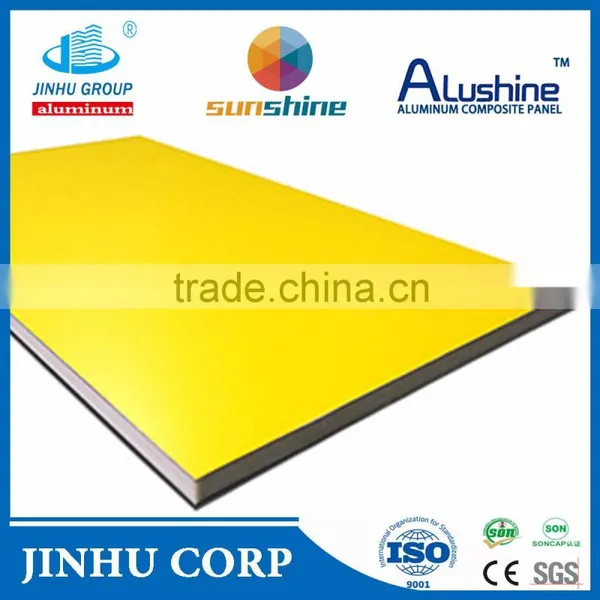

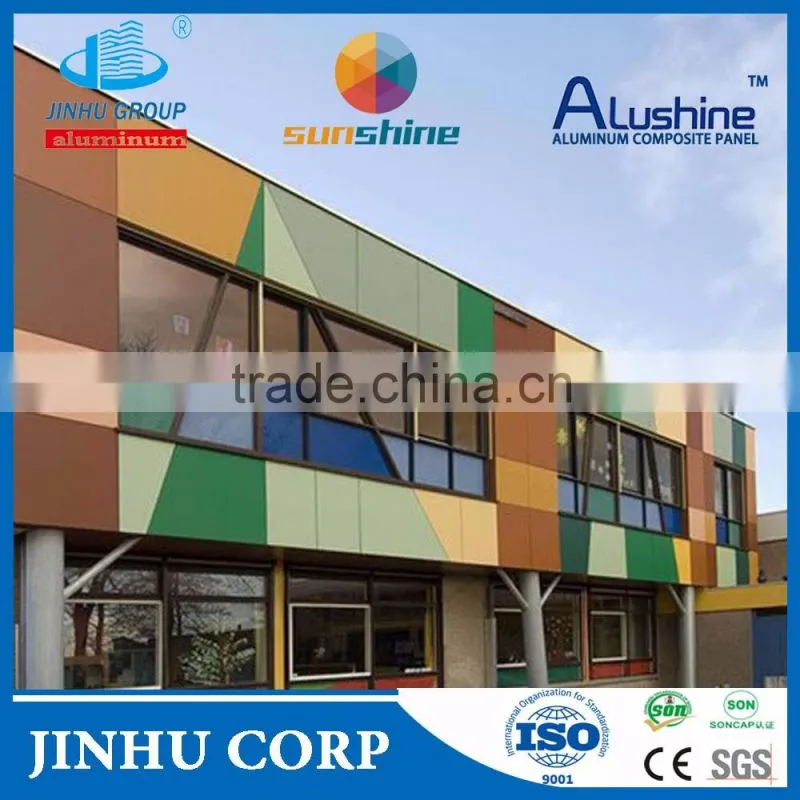

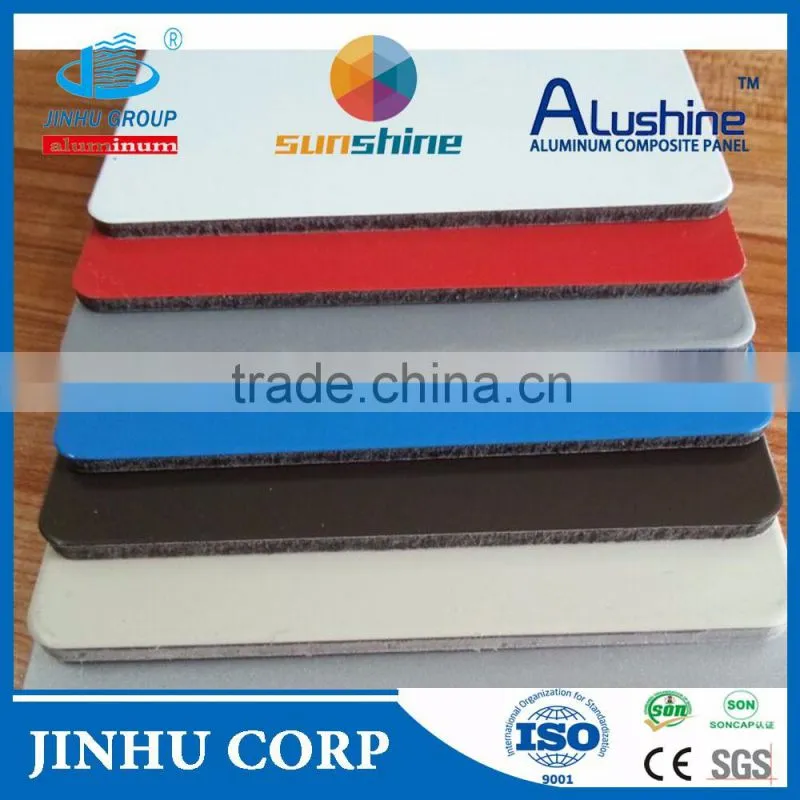

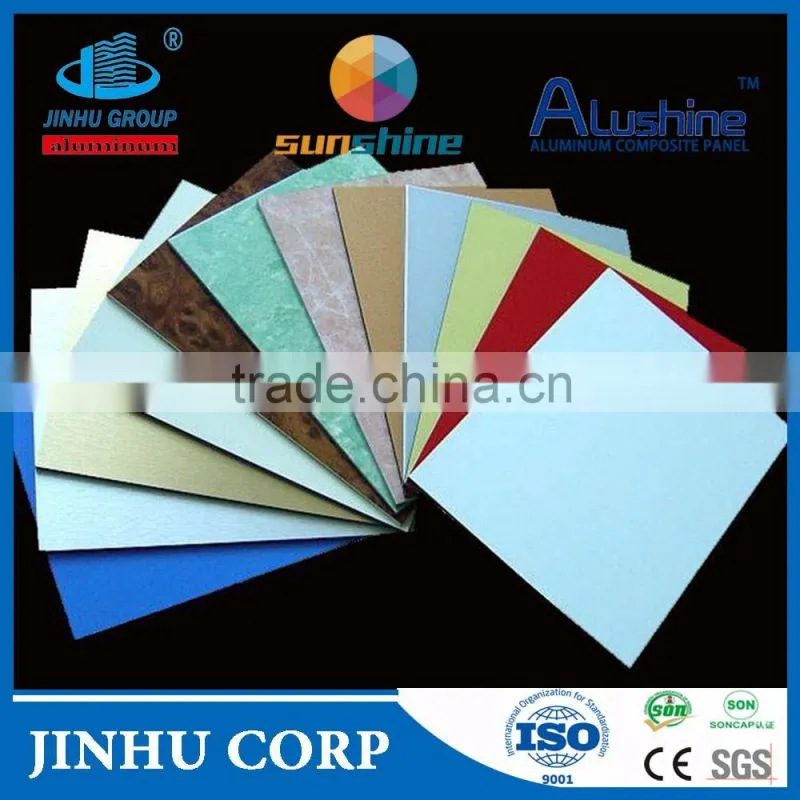

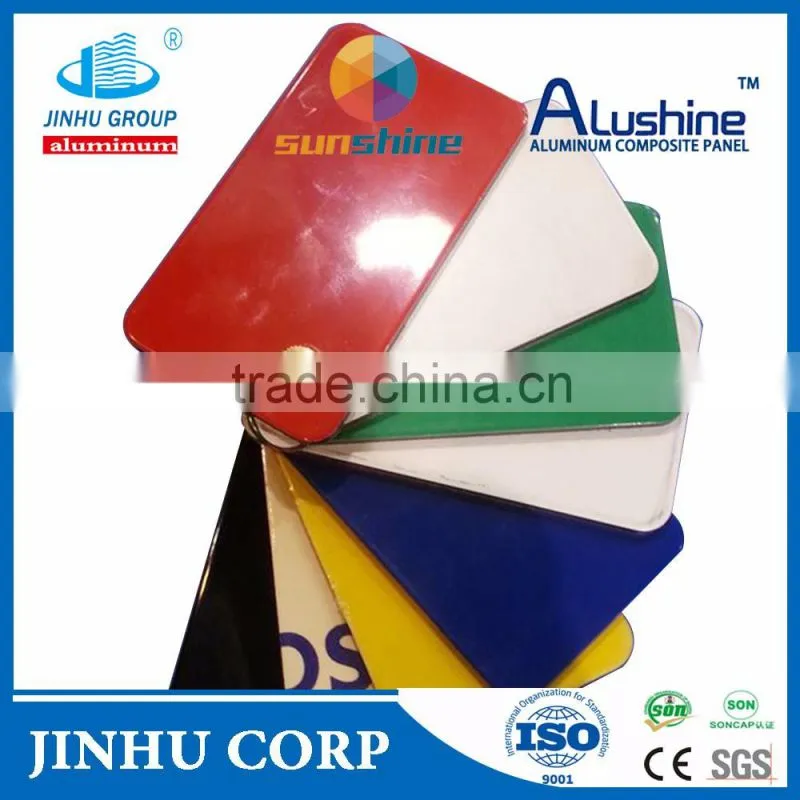

Product Show:

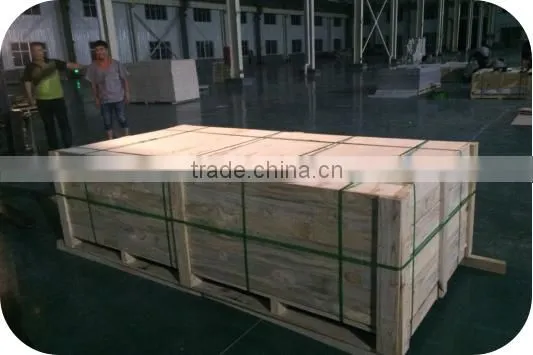

Packaging:
