Waste water evaporation equipment
- 0 per Month
Product Details
Condition: | New | Application: | Other, evaporation | Place of Origin: | Jiangsu, China |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
water evaporation machine is packed in bulk
Product Description
Specifications
Water evaporation machine makes all the evaporated water achieve the discharge standard and the final water content lower 20%.Waste water evaporation machine
Summary:
There are many kinds of waste water with different characteristics and different treating methods. According to the water characteristics, we use (1) multiple-effect evaporation technology; (2) multiple-effect evaporation + drying technology; (3) multiple-effect evaporation + crystallization technology to deal with the sewage or waste water. So that to make all the evaporated water to achieve the discharge standard and the final water content lower than 20% after evaporated. In order to ensure the final discharge standard and reduce the treating cost as well, we adopt multiple effect (triple effect normally) evaporation system.
Structure:
# Pre-heater: in most cases, the solution should be pre-heated before entering into evaporator.
# Evaporator: solution to be evaporated does the heat transfer with heat steam inside the evaporation chamber. We select the suitable evaporator according to the properties of solution.
# Separator: it is used to separate the steam and liquid. According to the properties of solution, there are different kinds of separators for selection, such as centrifugal separator, gravity separator or special structure separator.
# Vacuum system: it maintains the vacuum degree of whole system; it pumps some air, non-condensable gas and air brought-in by solution to ensure the stable evaporation state.
# Pump: it transfers the solution before and after the evaporation. According to the properties of solution, there are different kinds of pumps, such as centrifugal pump, positive displacement pump, screw pump, etc.
# Control system: it can do the operation of self-evaporation, cleaning and stop, etc. by controlling the valves, flow meter, temperature and pressure; so that to keep the system balance.
# Cleaning system: after solution evaporated for a while, there might be scaling phenomenon occurred. Generally, 99% scaling can be removed by using chemical solvents, we can use CIP cleaning in place or disassemble it to clean.
Features:
1. Our equipment is of total automatic control (or semi-automatic operation) without special care. It is easy of operation, good water quality, no smell.
2. Saving money and running costs (labor cost, electric charge, steam consumption)
3.No chemicals adding during operation.
4. The equipment can be made by anti-Corrosion materials specially according to the waste water characters.
5. Simple system, easy of operation.
6. Small floor area.
7. Stable performance of equipment, continuous operation.
8. After be evaporated, some water can be used again, which can save the city water cost.
9. Some waste materials in the waste water is valuable. The concentrate or crystal substance can be reused or sold, which can save energy and increase the economic benefit.
Technical Parameters:
Model | Single effect | Double effect | Triple effect | Four effect | Five effect |
Water evaporation capacity kg/h | 300-2000 | 1200-4000 | 3600-15000 | 8000-50000 | 10000-65000 |
Feeding material concentration % | According to customers’ materials | ||||
Discharge material concentration % | According to customers’ materials | ||||
Steam pressure MPa | 0.5-0.8 | ||||
Steam consumption/evaporation capacity kg/kg | 0.65 | 0.38 | 0.28 | 0.23 | 0.19 |
Evaporation temperature °C | 45-90 | ||||
Sterilizing temperature °C | 90-110 | ||||
Cooling water consumption (water inlet 20°C, outlet 40°C) | 28 | 11 | 8 | 7 | 6 |
Note: The above parameters are for reference. We design and manufacture the equipment according to customers’ special requirements. |

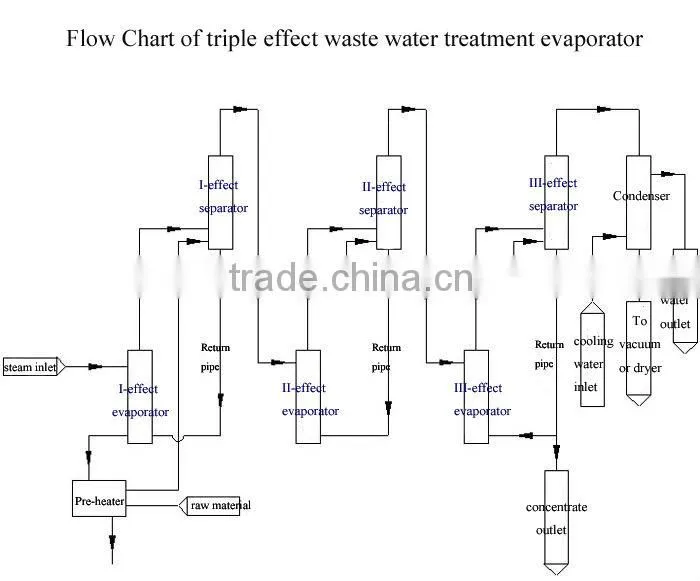

Flow chart:
