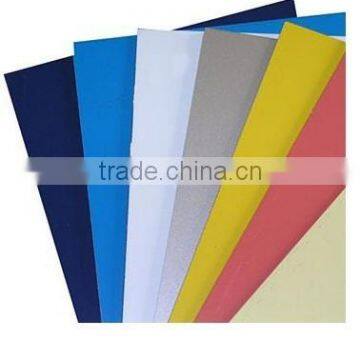

Brushed Decorative Material /surface Aluminum Composite Panel/brushed Aluminum Decorative Panel(ACP)

1) Standard size :1220mmx2440mmx3mm/4mm

Non standard size: 1250x3200mm, 1550x5800mm

2) Accepted thickness: 2mm 3mm 4mm(ordinary and best seller) 5mm 6mm(new and special)

3) Accepted width: 1000mm, 1220mm,1250mm, 1500mm,1550mm(non-standard width, but availble),etc

4) Accepted Length: According to buyer's requirements (Max:6000mm)

5) Skin aluminium thickness

indoors: 0.21*0.21mm 0.18*0.18mm 0.15*0.15mm 0.12*0.12mm 0.10*0.10mm 0.08*0.08mm 0.06*0.06mm

1) Front: aluminium alloy sheet coated with PVDF or PE roasting paint,New Coating is Nano-PVDF

2) Core: nontoxic low density polyethylene(LDPE)/plastic fireproof materials(B1 OR A2).

3) Back: aluminium coated with polyester service coating or just mill finish.

1)Under common temperatures and radiation, the surface is no color different.

2)Under natural climate, film coating will be no flake,no rubbles,no vestige and no pulverization.

3)Under common environment, no flake,no rubbles.

4)products with PVDF coating  guarantee 15~20 years.

                        PE coating guarantee 7-15years.

5)According to international test standard, all the tested items are satisfied with high-class.

Color for

your choice

Ordinary and best seller: Regular solid plain color--bright silver, pure white, ivory white, silver grey;

Specials: Glossy color, Pearl Color, Wooden Finish, Marble/granite/stone Finish,

Brushed finish, Mirror finish, Embossed finish, PET film, Colorful paint, Spectrum series etc.

1)Light weight, the intensity is high, easy to maintain, cut bend, arch and install. The panel average weight is 3.5 - 5.5 kg/sqm.

2)Extremely good for the weathering resistance, acidity, alkaline resistance, thermal insulation, acoustic insulation and damping.

3)The surface is smooth and flat and easy to maintain., just use neutral cleaner and water can totally renew the panel.

4)The aluminium surface is tough, the core PE panel is flexible, therefore the panel has high impact resistance.

Production

capacity

Sea worthy

 Packing
